Options
Chapter
13
■Setting values related to RS-232C
■RS-232C I/F setting
RS-232C I/F setting of the F325 is set.

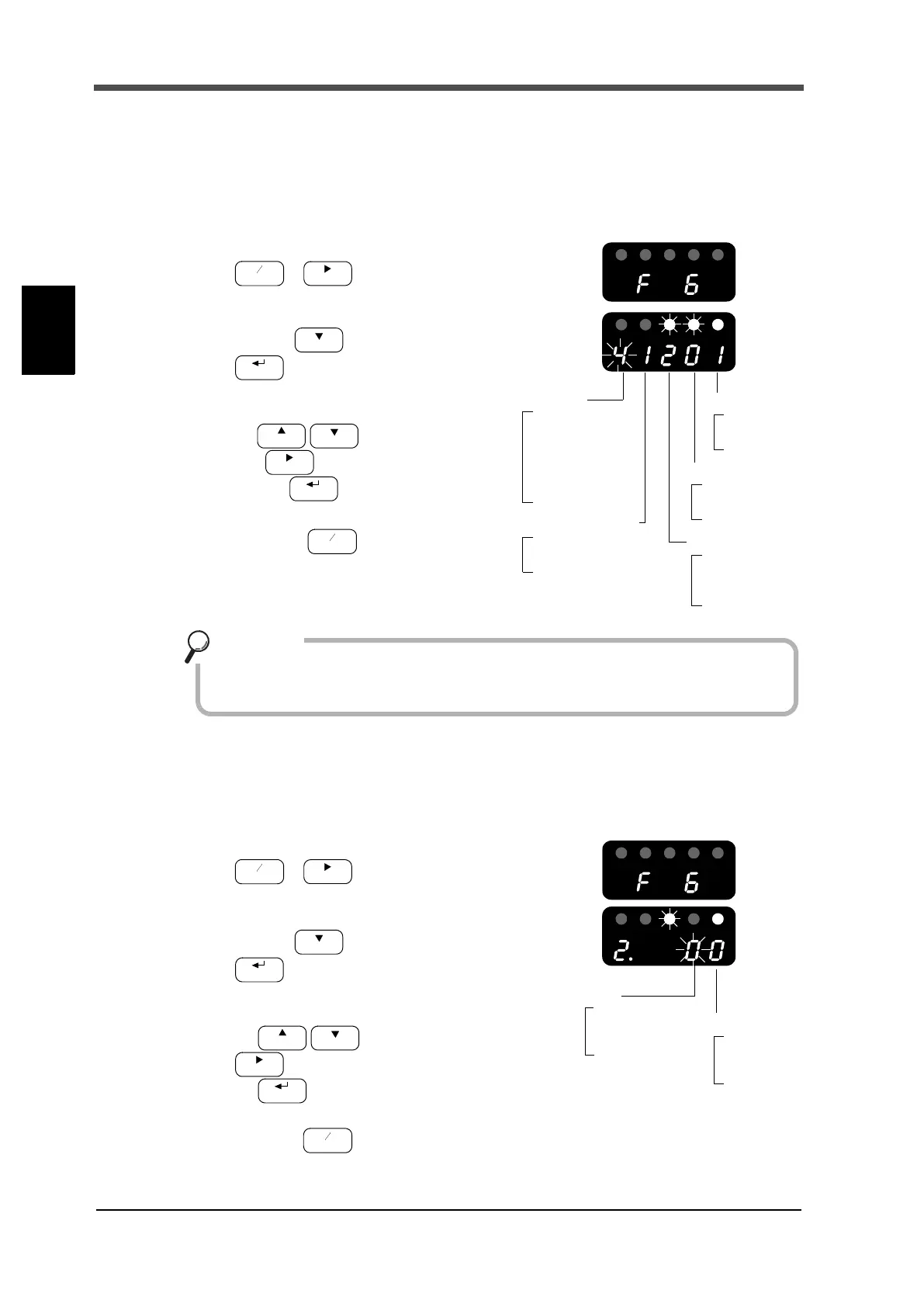

■RS-232C I/F setting method
1. Select setting mode 6.
→ (five times)
2. Select "RS-232C I/F setting".
Press the key three times.
Set the RS-232C I/F setting using
the (numerical value input)
and (shift) keys, and confirm it
with the key.
3. Press the key to return to the
indicated value display.
■RS-232C communication type setting
RS-232C communication type of F325 is set.
■RS-232C communication type setting method
1. Select setting mode 6.
→ (five times)
2. Select "RS-232C communication type".
Press the key twice.
Set the RS-232C communication type using
the (numerical value input) and
(shift) keys, and confirm it with
the key.
3. Press the key to return to the indicated value display.
FNC
＋ －
ZERO
5: 38400bps
4: 19200bps
Baud rate
3: 9600bps
2: 4800bps
2: Even
1: Odd
0: None
Parity bit
1: 2400bps
0: 1200bps
1: 8 bit
0: 7 bit
1: 2 bit
0: 1 bit
Stop bit
1: CR+LF
0: CR
Terminator
Length of character
CAL
HOLD
GAIN
CAL
ZERO
HOLD
FNC
＋ －
Initialize the RS-232C I/F setting of the connecting computer and PLC to the
F325 setting.
Key points
FNC
＋ －
ZERO
Mode
2: Printed
1: Continuous
0: Command
2: Format 3
1: Format 2
Format
0: Format 1
CAL
HOLD
GAIN
CAL
ZERO
HOLD
FNC
＋ －
