6 Setting and Operation Related to Comparison
47
Setting and Operation Related to Comparison
Chapter
6

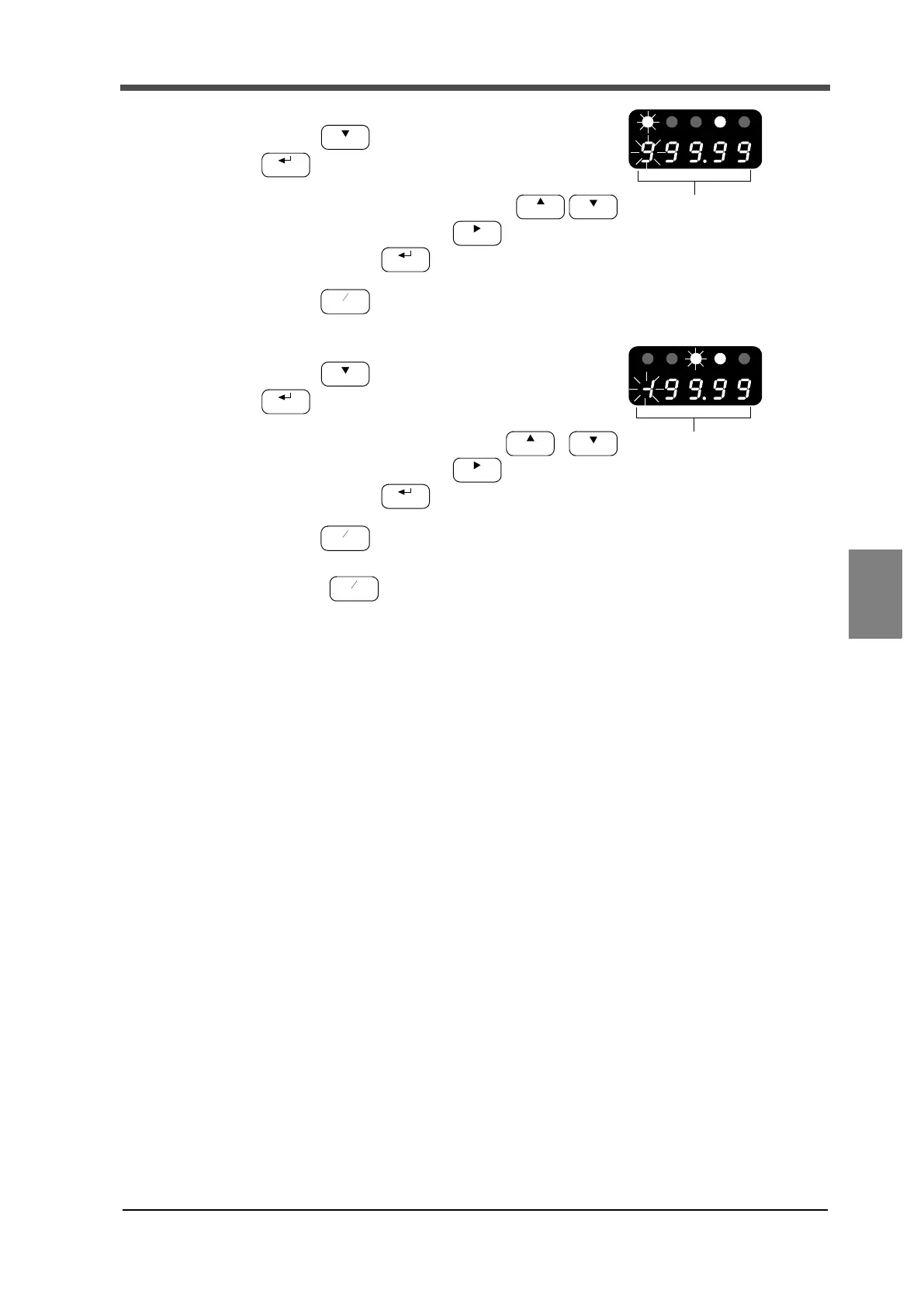

4. Set "HH limit".
Press the key five times.
Set the HH limit value using the
(numerical value input) and (shift) keys, and
confirm it with the key.
Press the key to insert a minus sign.
5. Set "LL limit".
Press the key once.
Set the LL limit value using the
(numerical value input) and (shift) keys, and
confirm it with the key.
Press the key to insert a minus sign.
6. Press the key to return to the indicated value display.
6-3. HI/LO limit comparison mode
This function specifies the comparison timing.
Ongoing comparison (ALL):
HI/LO limit comparison is continuously performed.
Comparison at the time of stability (MD):
HI/LO limit comparison is performed when stable.
Stability parameters are set with motion detect.
Ongoing comparison except for near zero (NZ):
HI/LO limit comparison is performed except for near zero.
Parameters near zero are set near zero.
Comparison when stable except for near zero (MD+NZ):
HI/LO limit comparison when stable is performed except for near zero.
At the time of hold (Hold):
HI/LO limit comparison is performed when on hold (the timing where hold output is
ON).
HH limit
(-19999 to 99999)
CAL
HOLD
GAIN
CAL
ZERO
HOLD
FNC
＋ －
LL limit
(-19999 to 99999)
CAL
HOLD
GAIN
CAL
ZERO
HOLD
FNC
＋ －
FNC
＋ －
