37
5 Settings and Operations Related to Indicated Values
37
Settings and Operations Related to
Indicated Values
Chapter
5
5-3. Moving average filter
This filter takes the moving averages of sampled data and reduces fluctuation of indicated values.
The number of moving averages can be selected from OFF (zero, once) to 999 times. The more the
number of moving averages, the more stable the indicated values, but response will be slower.
Conversely, the less the number, the quicker the response, but indicated values will be more likely
to fluctuate. Set the most appropriate value in accordance with the kinds of measurements.

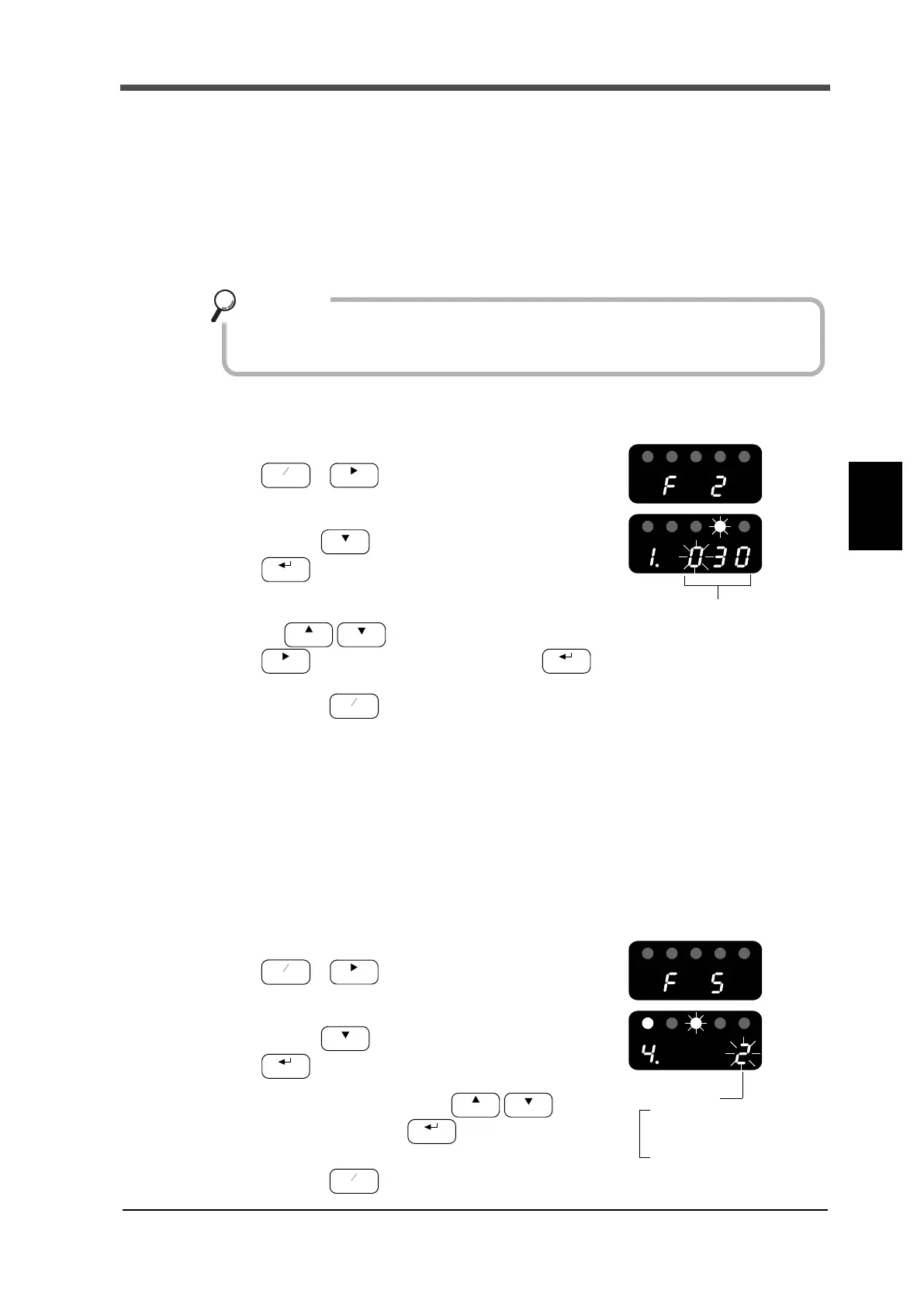

■Moving average filter setting method
1.
Select setting mode 2.
→
2. Select "moving average filter".
Press the key once.
Set the moving average filter using
the (numerical value input) and
(shift) keys, and confirm it with the key.
3. Press the key to return to the indicated value display.
5-4. Sampling rate
This function changes a rate of referring to the sampled data.
Set the fast sampling rate for high-speed measurement.
Set the slow sampling rate for measurement requiring stability.
■Sampling rate setting method
1.
Select setting mode 5.
→ (four times)
2. Select "sampling rate".
Press the key four times.
Set the sampling rate using the keys,
and confirm it with the key.
3. Press the key to return to the indicated value display.
Remove noise with an analog filter and stabilize minute fluctuations with a mov-
ing average filter.
Key points
Moving average filter
(0 to 999)
2: 3000 times/sec.
1: 300 times/sec.
Sampling rate
0: 30 times/sec.
To Next Page
