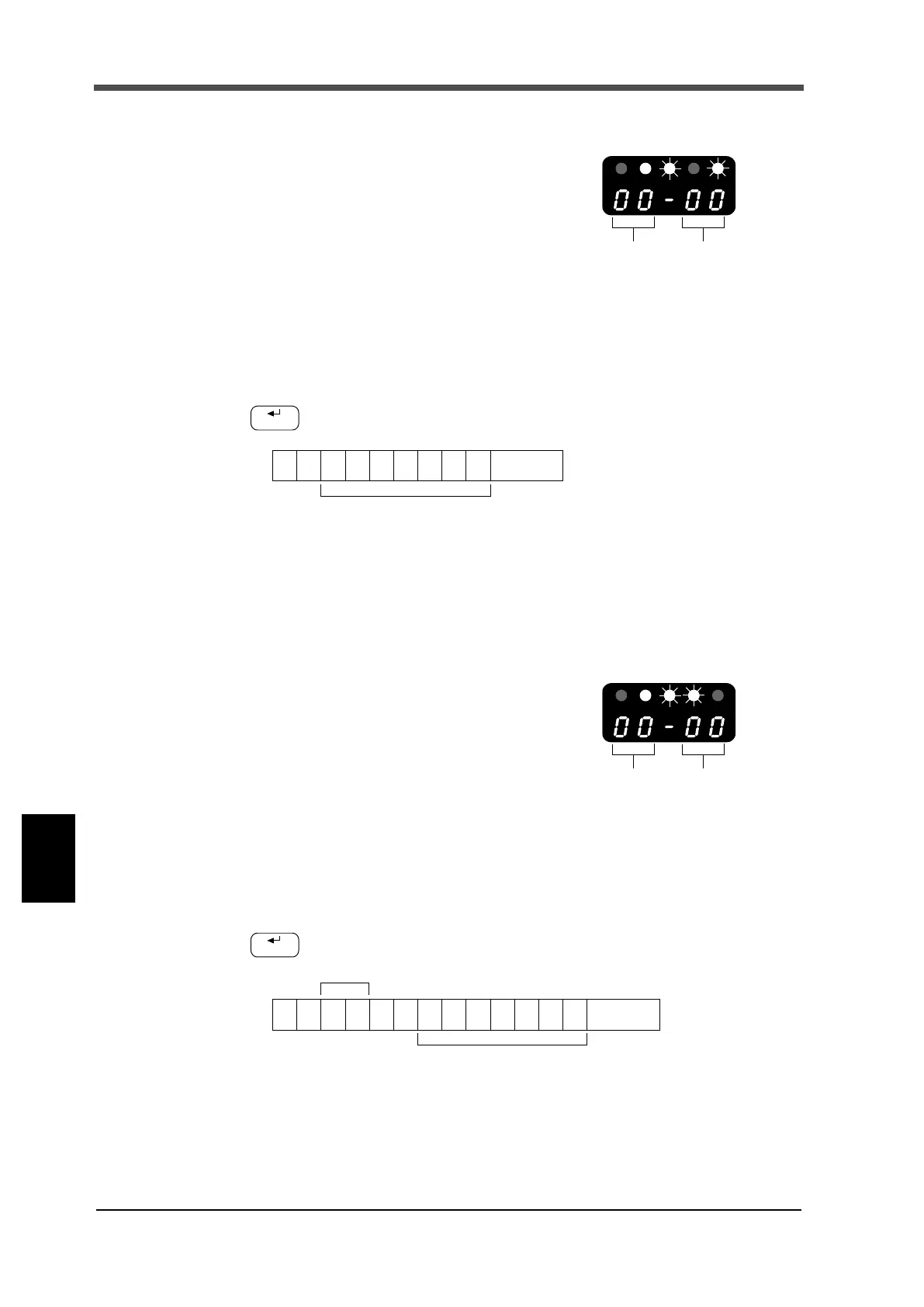

9-8. RS-232C check
Checking of receiving data of RS-232C and compulsory
transmitting of data are implemented.
When implementing the check, set the mode of RS-232C
communication type to 0: Command in advance.
* Valid only when a mode of RS-232C communication type is
0: Command
* The number of received characters and the number of received CR are cleared once the power
supply is turned OFF. They are also cleared when a mode of RS-232C communication type and I/
F setting of RS-232C are changed.
When the key is pressed, the same message is output as a linked value reading command.
* In RS-232C check display, the panel does not return to indicated value display even without key
operation.
9-9. RS-485 check
Checking of receiving data of RS-485 and compulsory
transmitting of data are implemented.
When implementing the check, set the mode of RS-485
communication type to 0: Command in advance.
* Valid only when a mode of RS-485 communication type is
0: Command
* The number of received characters and the number of received CR are cleared once the power
supply is turned OFF. They are also cleared when a mode of RS-485 communication type and I/F
setting of RS-485 are changed.
When the key is pressed, the same message is output as a linked value reading command.
* In RS-485 check display, the panel does not return to the indicated value display even key
operation.
Number of
Number of
received CR
received characters
HOLD
RA
＋
100 00
.
Indicated value
Terminator
Number of
received CR
Number of
received characters
HOLD
RA
＋
100 00
.
ID
ID No.
Terminator
Indicated value
