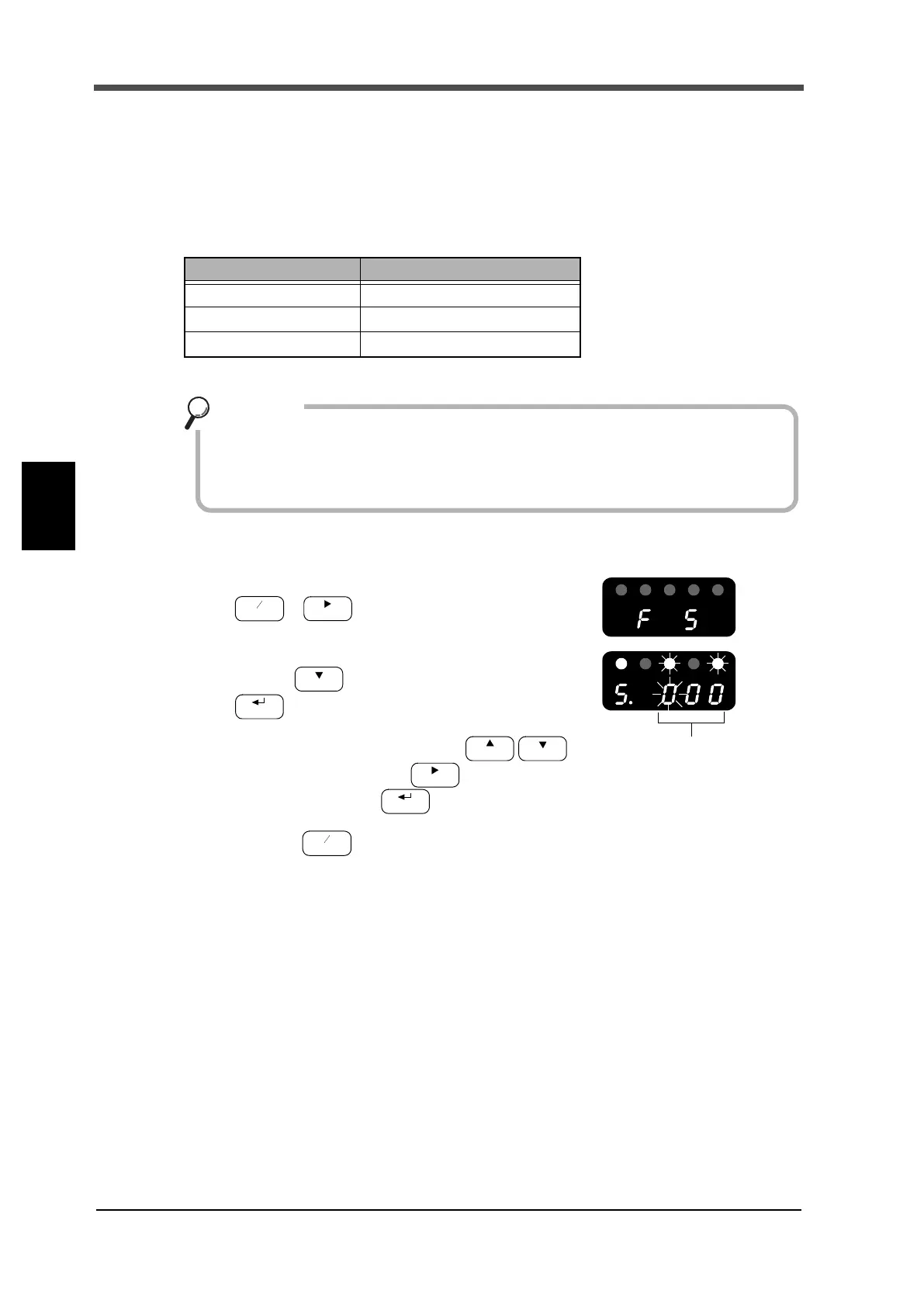

5-5. Digital low-pass filter
This low-pass filter screens the sampled data and cancels unnecessary noise.
Like the analog filter, set the cut-off frequency.
A settable cut-off frequency changes according to the sampling rate. Select the most appropriate
value in accordance with kinds of measurements and setting environments.
■Digital low-pass filter setting method
1.
Select setting mode 5.
→ (four times)
2. Select "digital low-pass filter".
Press the key five times.
Set the digital low-pass filter using the
(numerical value input) and (shift) keys,
and confirm it with the key.
3. Press the key to return to the indicated value
display.
Sampling rate Digital low-pass filter
3000 times/sec. 10 to 300 Hz
300 times/sec. 1.0 to 30.0 Hz
30 times/sec. 0.1 to 3.00 Hz
Use this filter in case noises have not been removed only by an analog filter. In
order to remove lower frequency noises, slow the sampling rate so that a low-
pass filter of lower frequency can be set.
Key points
Digital low-pass filter
(0, 10 to 300)
Sampling rate
3000 times/sec.:
300 times/sec.:
30 times/sec.:
10 to 300
1.0 to 30.0
0.10 to 3.00
To Next Page
