71
9 System Settings and Operations
71
System Settings and Operations
Chapter
9

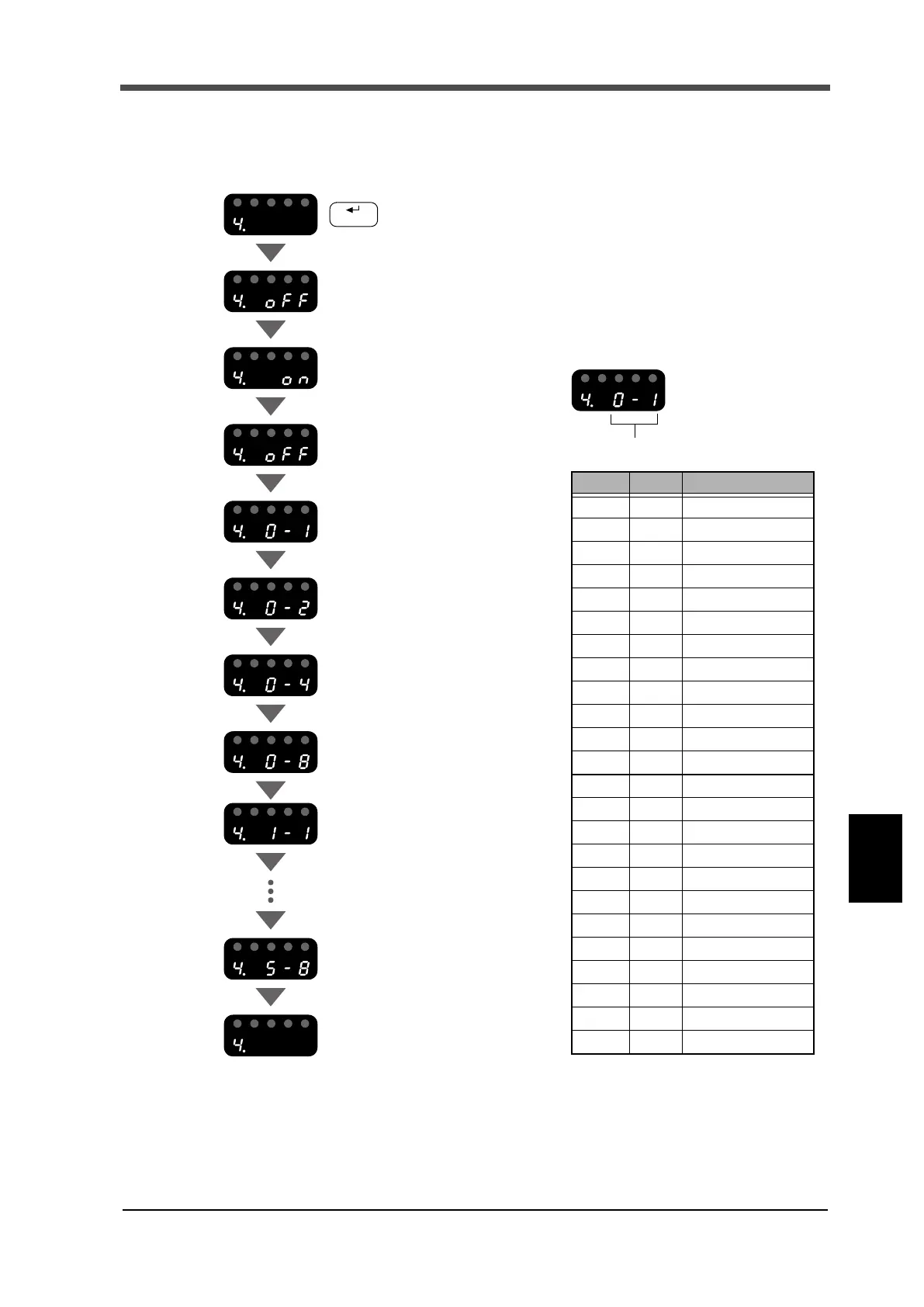

9-7. BCD output check
Each bit of BCD output is turned ON and OFF.
* In BCD output check display, the panel does not return to the indicated value display even
without key operation.
* Output check condition will not be canceled even if setting mode is switched.
A stationary output condition returns after all are completed.
key
HOLD
Approx. 1.6 sec.
Approx. 1.6 sec.
Approx. 0.8 sec.
Approx. 1.6 sec.
All outputs ON
All outputs OFF
All outputs OFF
Only A2 (1) output ON
Approx. 0.8 sec.
Approx. 0.8 sec.
Only A3 (2) output ON
Only A5 (8) output ON
Only A4 (4) output ON
Approx. 0.8 sec.
Only B13 (STROBE) output ON
Back to a stationary output condition
(* Refer to the right.)
Approx. 0.8 sec.
Only A6 (10) output ON
(*)
Display No. Signal
0-1 A2 1
0-2 A3 2
0-4 A4 4
0-8 A5 8
1-1 A6 10
1-2 A7 20
1-4 A8 40
1-8 A9 80
2-1 A10 100
2-2 A11 200
2-4 A12 400
2-8 A13 800
3-1 B2 1000
3-2 B3 2000
3-4 B4 4000
3-8 B5 8000
4-1 B6 10000
4-2 B7 20000
4-4 B8 40000
4-8 B9 80000/NZ
5-1 B10 Minus (polarity)
5-2 B11 OVER
5-4 B12 P.C (stable)
5-8 B13 STROBE
Approx. 0.8 sec.
Display
BCD output start
To Next Page
