1 Outline
2
Outline
Chapter
1

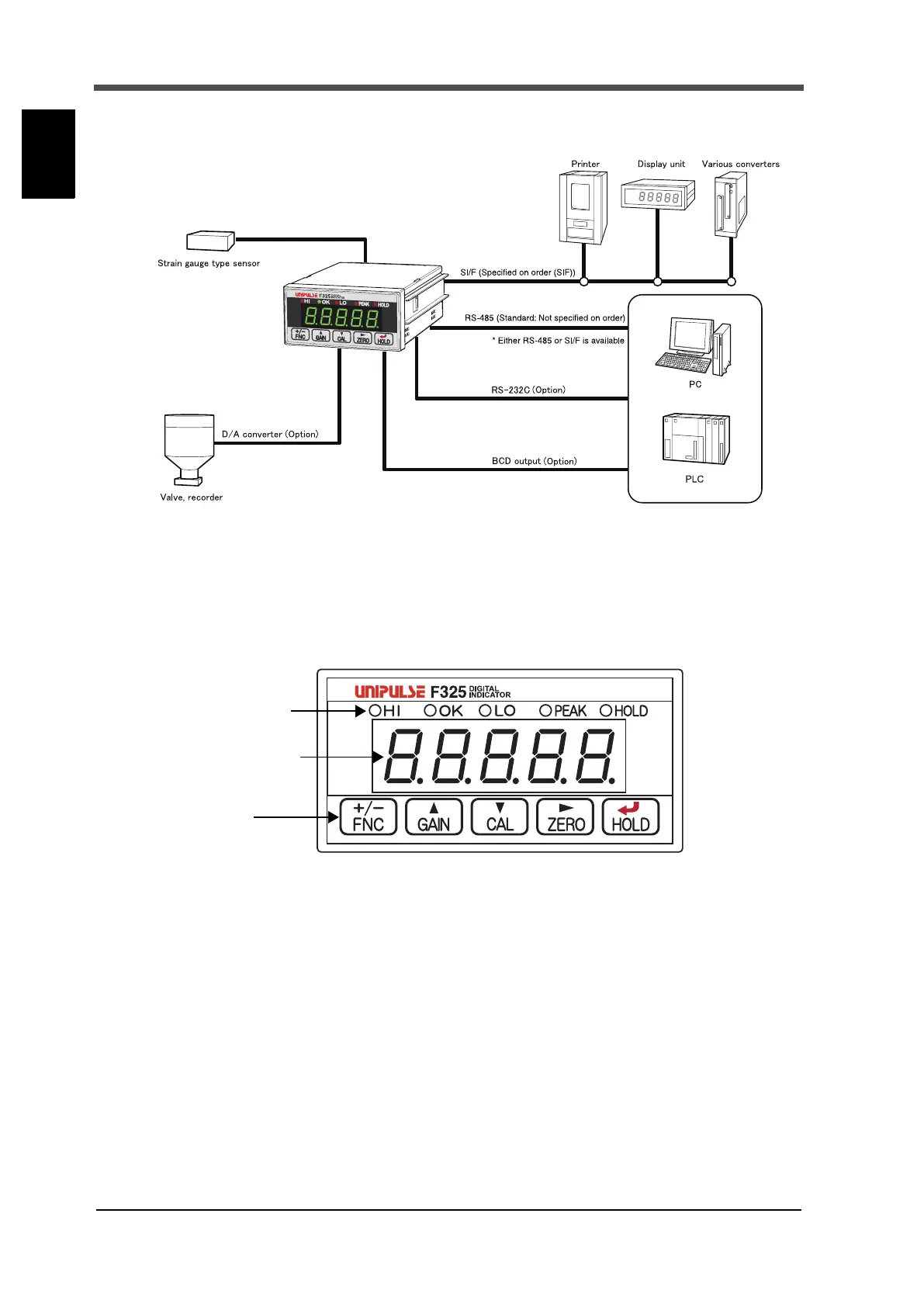

1-2. Connection with other devices
1-3. Name and function of each part
■Front panel
(1) Status display unit
Status of the F325 is displayed. Setting items are displayed when setting is performed.
HI Lighted: HI limit output condition is met
Flashes: HH limit output condition is met
* Flash is prioritized.
* HI limit output condition and HH limit output condition are subject to change
depending on setting values of HI/LO limit comparison mode and hysteresis.
OK Lighted: OK output condition is met
* OK output condition is subject to change depending on setting values of HI/LO limit
comparison mode and hysteresis.
(1) Status display unit
(2) Number display unit
(3) Setting keys
