Unipulse F325 User Manual

6
1 Outline
6
Outline
Chapter
1

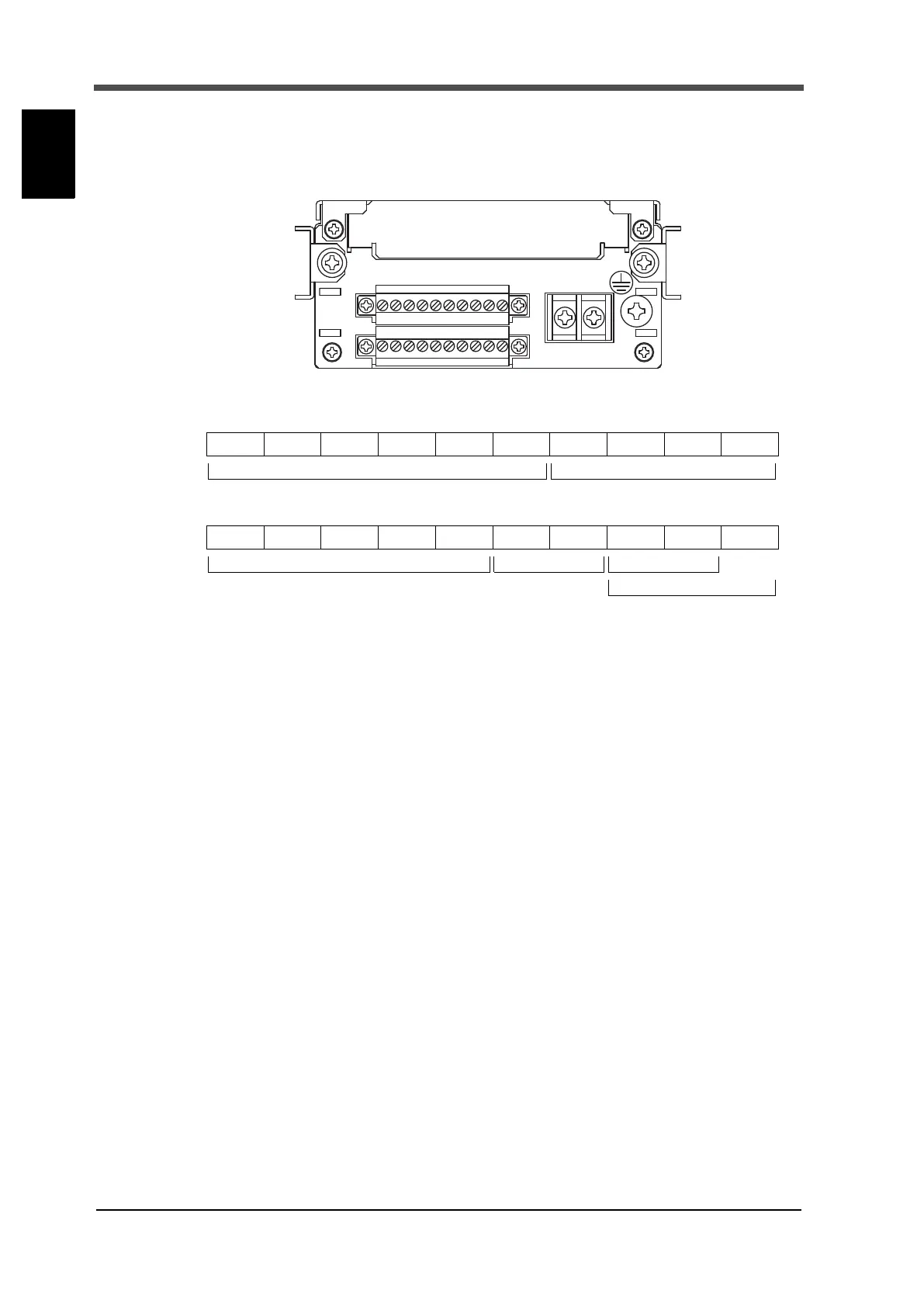

(4) Signal I/O terminal block
This terminal block is used for inputting/outputting control signals and for inputting strain gauge
type sensor signals.
- Terminal block assignment
Upper (A) 20020009-C101B01LF made by FCI Electronics
Lower (B) 20020011-C101B01LF made by FCI Electronics
Straight type (optional) 20020000-C101B01LF made by FCI Electronics
Note: Straight type (optional) cannot be attached to both upper and lower terminal blocks.
CONTROL OUTPUT
This output terminal is used for control.
A1 COM This is a common terminal (common within output signals)
of output signals.
A2 HI This outputs HI signals. * 1
This is a PhotoMOS relay output (normally open contact).
A3 OK This outputs OK signals. * 1
This is a PhotoMOS relay output (normally open contact).
A4 LO This outputs LO signals. * 1
This is a PhotoMOS relay output (normally open contact).
A5 OUT1 This output is used for selecting a function by the setting value of
(output selection1) output selection. * 2
(HH limit, overload, RUN, hold, near zero, DZ response,
default value: HH limit (HH))
This is a PhotoMOS relay output (normally open contact).
A6 OUT2 This output is used for selecting a function by the setting value of
(output selection2) output selection. * 2
(LL limit, overload, RUN, hold, near zero, DZ response,
default value: LL limit (LL))
This is a PhotoMOS relay output (normally open contact).
A1 A10
B1 B10
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10
COM
*
HI OK LO OUT1 OUT2 DZ HOLD H.RESET COM
*
CONTROL OUTPUT CONTROL INPUT
* COMs of input and output are independent.
B1 B2 B3 B4 B5 B6 B7 B8 B9 B10
SHIELD +EXC -SIG -EXC +SIG + G B+ A- SG
LOADCELL VOL OUT SIF
RS-485
