Options
Chapter
13
BCD data hold - Level input
Update of BCD data output signals is stopped. (Indicated values are not held.)
STROBE output is also turned OFF.
Hold is performed at A14 pin.
Logic selection - Level input -
Logic of output signals is selected. Selection is implemented at B14 pin.
ON
OFF

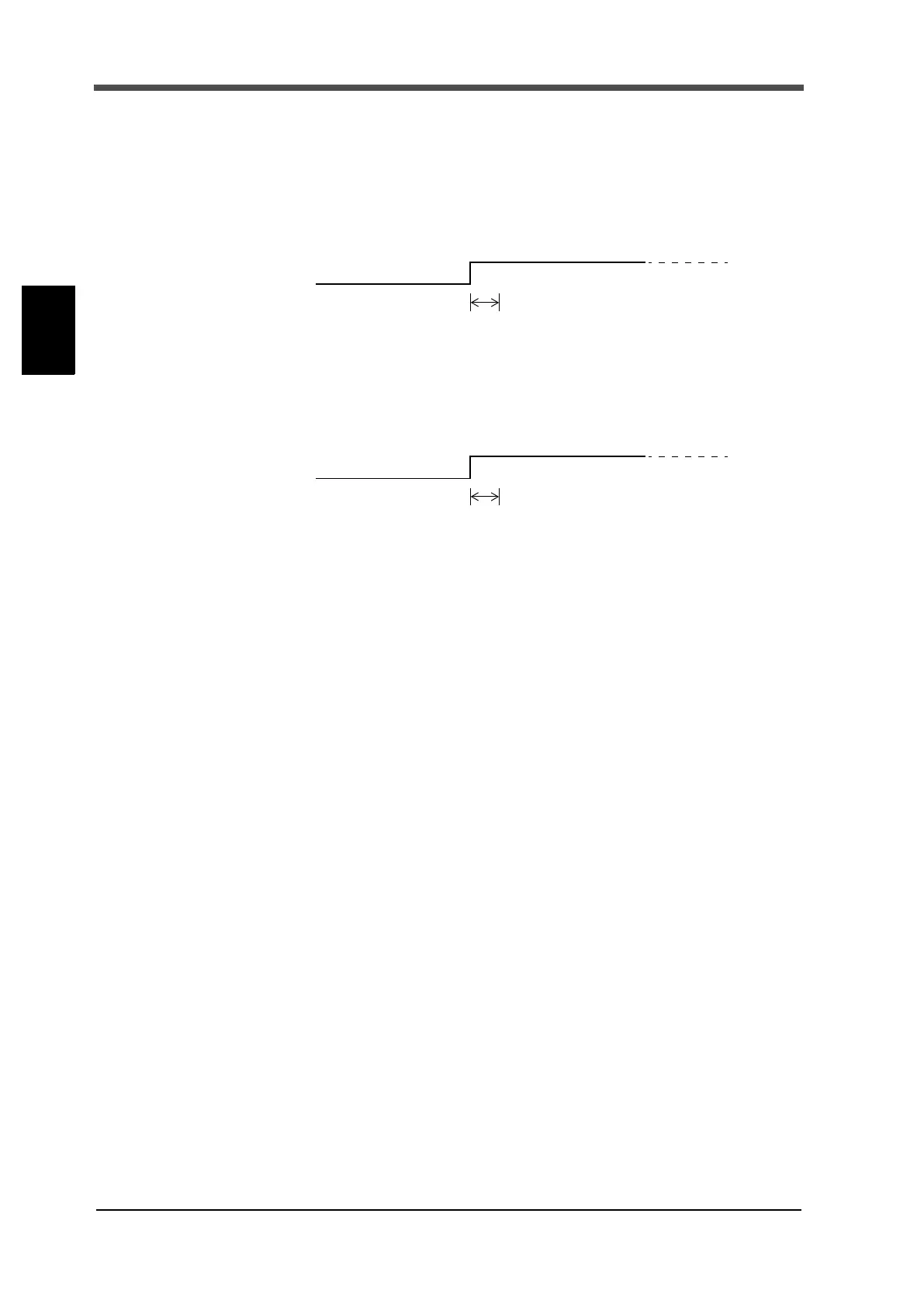

Undefined section (within 5mSec)
Hold release when OFF (de-energized mode),
Hold release
Hold
and hold when ON (energized mode).
ON
OFF
Undefined section (within 5mSec)
Positive logic when OFF (de-energized mode),
Positive logic
Negative logic
and negative logic when ON (energized mode).
