Unipulse F325 User Manual

120
13 Options
120
Options
Chapter
13

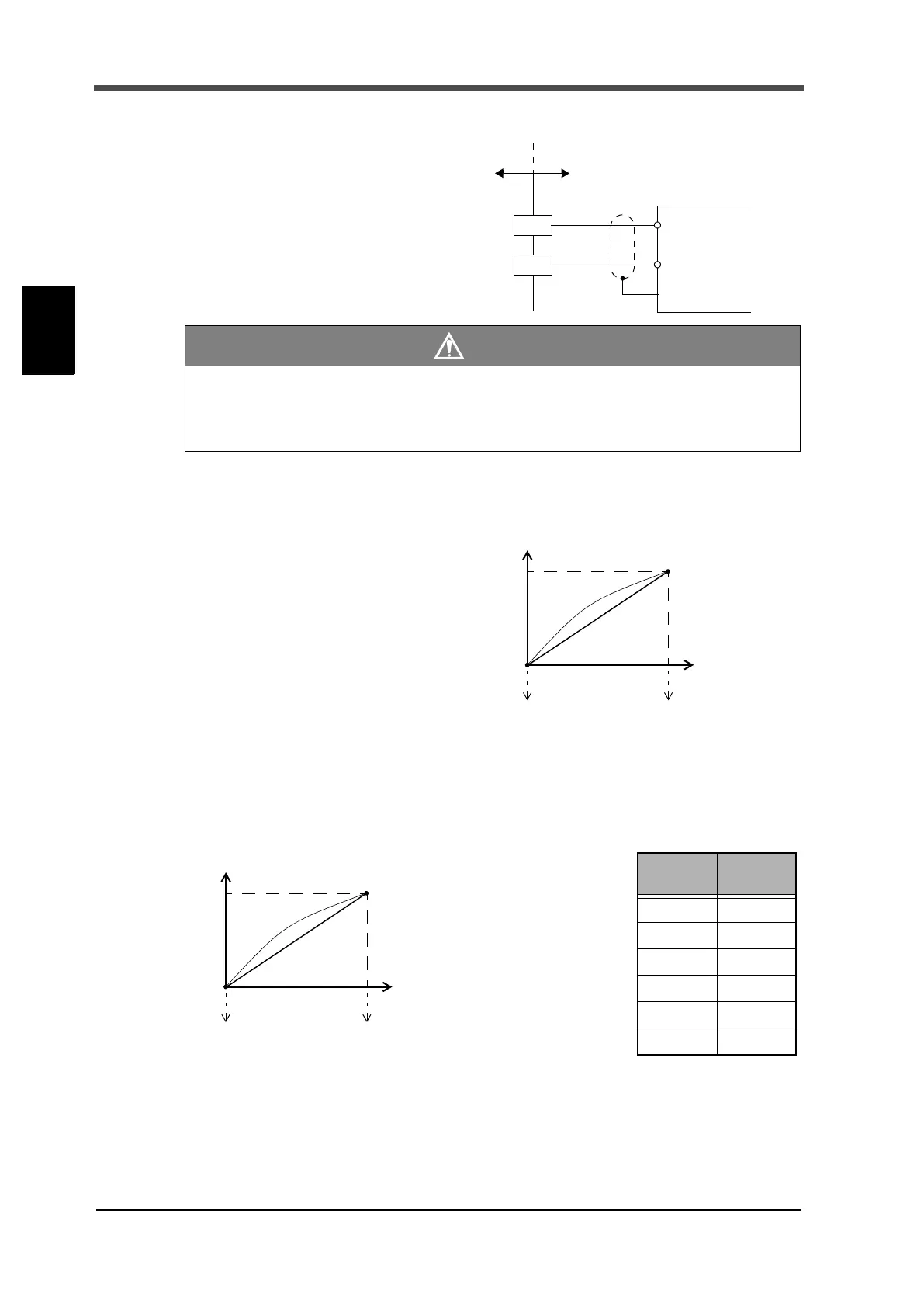

Current output signals extraction method
Connect an external device (input resistance
500Ω or less) to CUR. and GND of the F325
before using.
D/A zero/gain setting
D/A converter of the F325 sets an indicated
value outputting 4mA (D/A zero setting value)
and an indicated value outputting 20mA
(D/A full scale setting value) respectively to
obtain analog output. Input of each setting value
is performed in D/A zero/full scale setting.
● Setting sample
D/A output mode............................ 0 (linked with indicated values)
D/A zero setting ............................. 00500
D/A full scale setting ..................... 02500
Caution
● D/A converter current output is optional.
● Do not apply voltage from outside. This will cause damage.
Also, connecting capacity load may cause oscillation.
External device
Input resistance
500Ω or less
Inside
Outside
F325
SIG
CUR.
GND
＋
－
FG
D/A zero
20
Current (mA)
Resolution
Indicated value
4
D/A full scale
1/10000
setting value setting value
Indicated
value
Current
(mA)
480 3.84
zero -> 500 4.00
1000 8.00
1500 12.00
Full scale setting -> 2500 20.00
2520 20.16
D/A zero
20
Current (mA)
Resolution
Indicated value
4
D/A full scale
1/10000
500 2500
setting value setting value
