■D/A output mode
D/A output mode of the F325 is set.

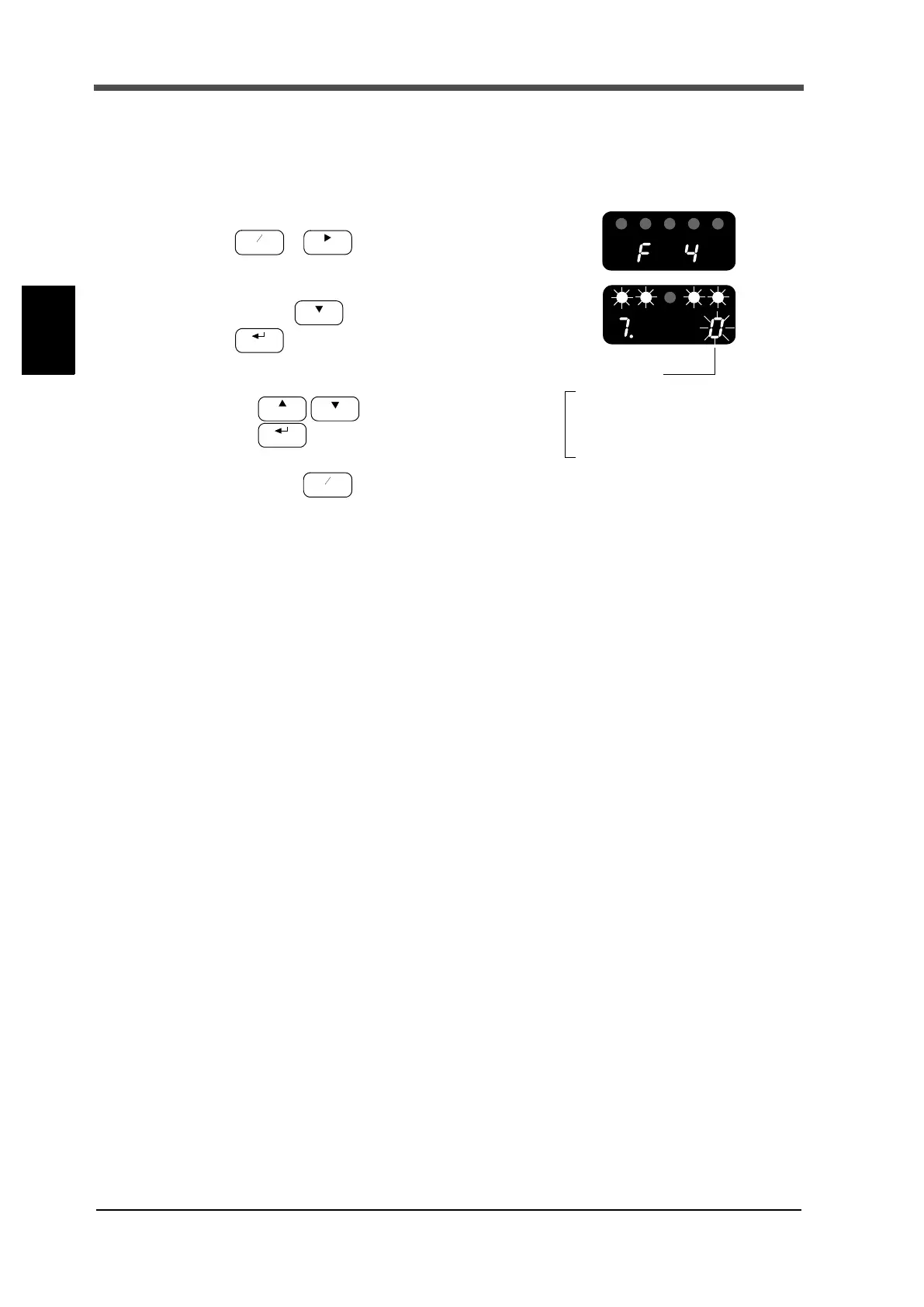

■D/A output mode setting method
1. Select setting mode 4.
→ (three times)
2. Set "D/A output mode".
Press the key seven times.
Set the D/A output mode using
the keys and confirm it with
the key.
3. Press the key to return to the indicated value display.
20mA(10V) fixed output
20mA is fixed and output when current output option was selected, and 10V is fixed and output
when voltage output option was selected.
4mA(0V) fixed output
4mA is fixed and output when current output option was selected, and 0V is fixed and output
when voltage output option was selected.
Not linked with the indicated value
Analog output is scaled and linked with sensor input.
Output corresponds to changes in sensor input signals even if the indicated values are held.
* When analog peak hold (peak hold selection = 1: analog, and hold mode = 1: peak hold) is
used, the 5 digits will be the same as the linked indicated values.
Linked with the indicated value
Analog output is linked with the indicated values.
Hold value is output even if sensor input signals change in case that indicated values are held.
D/A output mode
3: 20mA(10V) fixed output
2: 4mA(0V) fixed output
1: Not linked with the indicated value
0: Linked with the indicated value
