2 Installation & Connection
18
Installation & Connection
Chapter
2

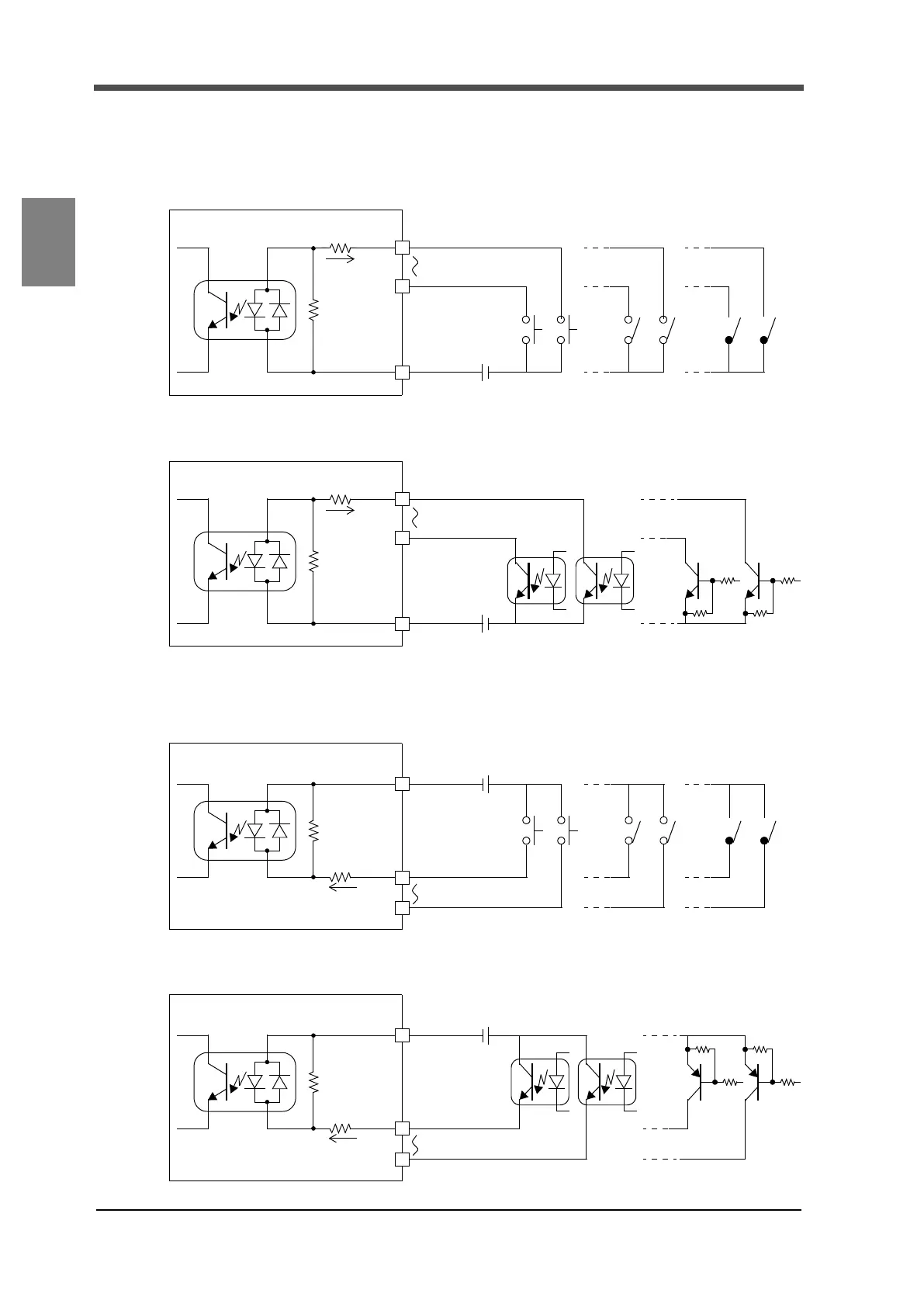

DC-input type (DCI)
- Plus common connection
When connecting relays, switches and so on
When connecting transistors, photo-couplers and so on
- Minus common connection
When connecting relays, switches and so on
When connecting transistors, photo-couplers and so on
Ic=approx.
Input
Input
F325
Plus common connection
A7 to A9
A10
DC
＋－
Push Toggle
switch switch
Relay
contact
12 to 24V
10mA
common
Ic=approx.
Input
Input
F325
Plus common connection
A7 to A9
A10
DC
＋－
Photo-coupler Transistor
12 to 24V
10mA
common
Ic=approx. 10mA
Input common
Input
F325
Minus common connection
A10
A7 to A9
DC
－＋
Push Toggle
switch switch
Relay
contact
12 to 24V
Ic=approx. 10mA
Input common
Input
F325
Minus common connection
A10
A7 to A9
DC
－＋
Photo-coupler Transistor
12 to 24V
