7.3 Insight main view with transmitter

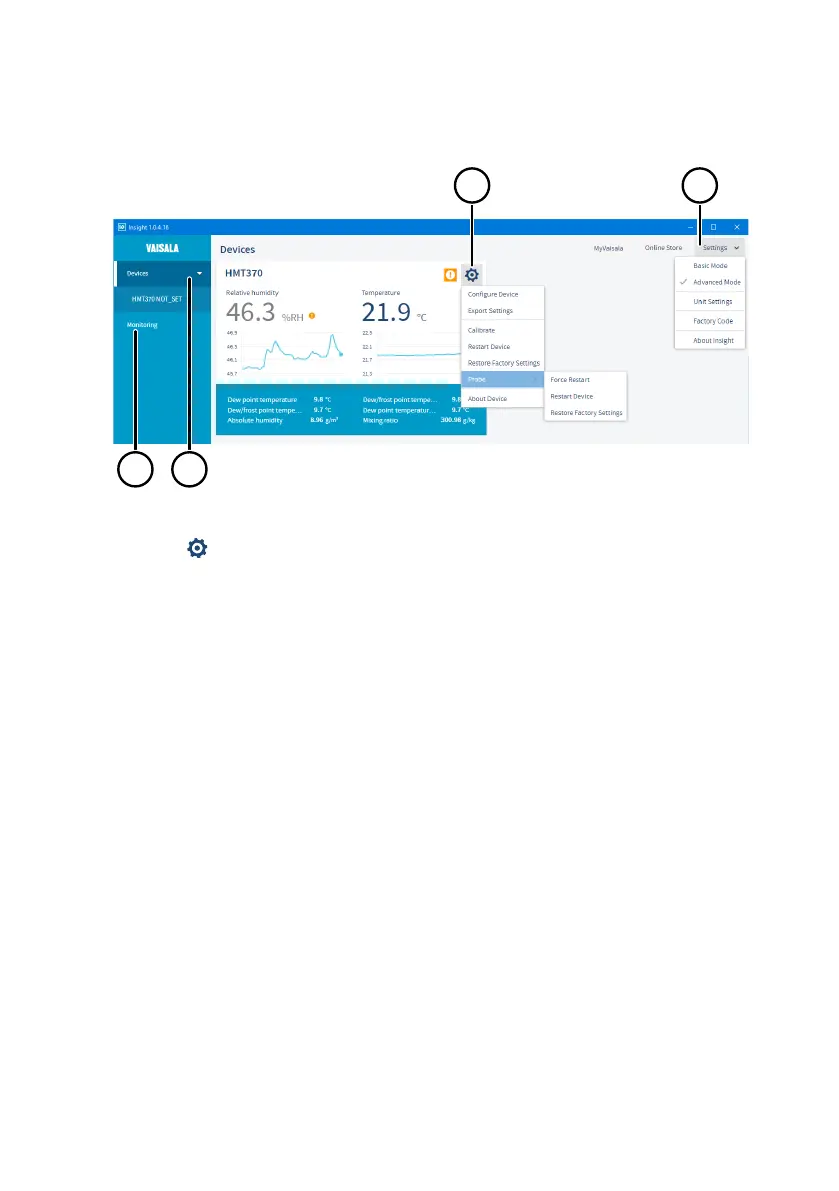

Figure 56 Insight main menu and settings: transmitter view
1 Select to access Insight main menu.
• Configure Device: environmental compensation settings, analog output settings,
display and graph settings, measurement coecients, filtering factor, and general
settings.
• Export Settings: creates a text file export of the device settings.
• Calibrate: options for calibrating and adjusting RH and T measurement, adjusting
analog outputs, viewing adjustment data, and restoring factory adjustments.
• Restart device: quick access selection for restarting the device.
• Restore factory settings: restores default settings, clears any user adjustments,
and restores the latest factory calibration.
• Probe: selections for restarting the connected probe and restoring factory settings
to the probe.
• About Device: general device information such as serial number and software
version.
2 Select Settings to switch between the Basic Mode and Advanced Mode user modes,
change the units of parameters (metric/non-metric), enter a factory code to access
restricted functionalities, or view information about the Insight software.
3 Monitoring provides options for monitoring and recording selected parameters, and
exporting the monitoring data as a CSV (comma-separated values) file.
4 Device information menu with the following tabs:
• Measurements: measurement graph view with parameter drop-down selection.
• Calibration information: read-only information about the latest stored calibration.
• Diagnostics: troubleshooting and administrative information about the device
status. Also includes options for exporting the device error log and other
diagnostics information as files (CSV/ZIP). When contacting Vaisala support, it is
recommended to include an up-to-date export of the error log with the support
request.
