4.6 HMP375 probe for high temperature

applications

The HMP375 probe option is designed for measurement in high temperature environments.

Dimensions

41 (1.6)

51 (2.0)

ø13.5 (0.53)

192 (7.56)

253 (9.96)

drilling 16...22 (0.63...0.87)

50 (1.97)

75 (2.96)

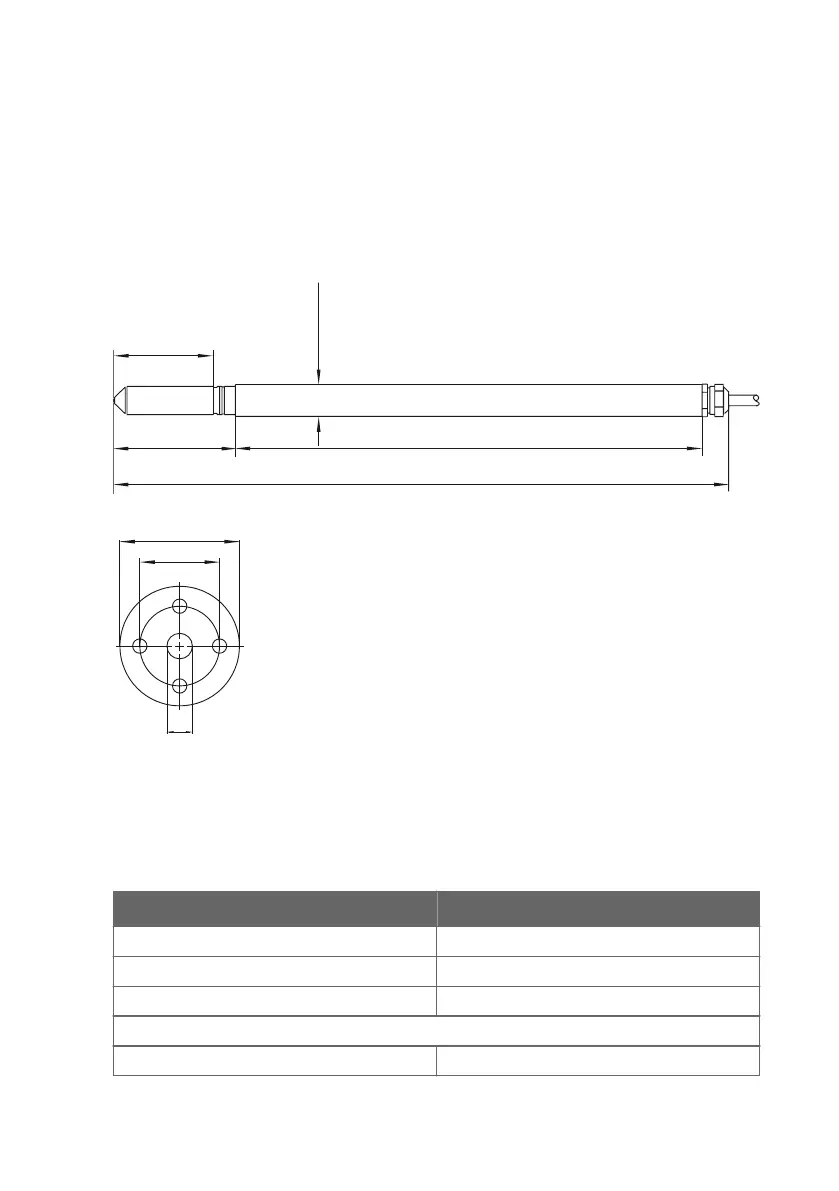

Figure 27 HMP375 probe and stainless steel installation ﬂange. Dimensions in mm (inches).

Speciﬁcations

Table 33 HMP375 for high temperature

Property Description/value

Temperature range -70 … +180 °C (-94 … +356 °F)

Probe cable length 2, 5 or 10 meters (6 ft 7 in, 16 ft 5 in, 32 ft 10 in)

Probe diameter 13.5 mm (0.53 in)

Installation

Mounting ﬂange 210696

Chapter 4 – Probe options
