Vaisala HMT370EX - HMP378 Specifications; Figure 72 Dimensions in MM (Inches); Table 50 HMP378 for Pressurized Pipelines

To Next Page

To Previous Page

ø 12 (0.47)

37.5 (1.48)

79.5 (3.13)

99.5 (3.92)

M9×1

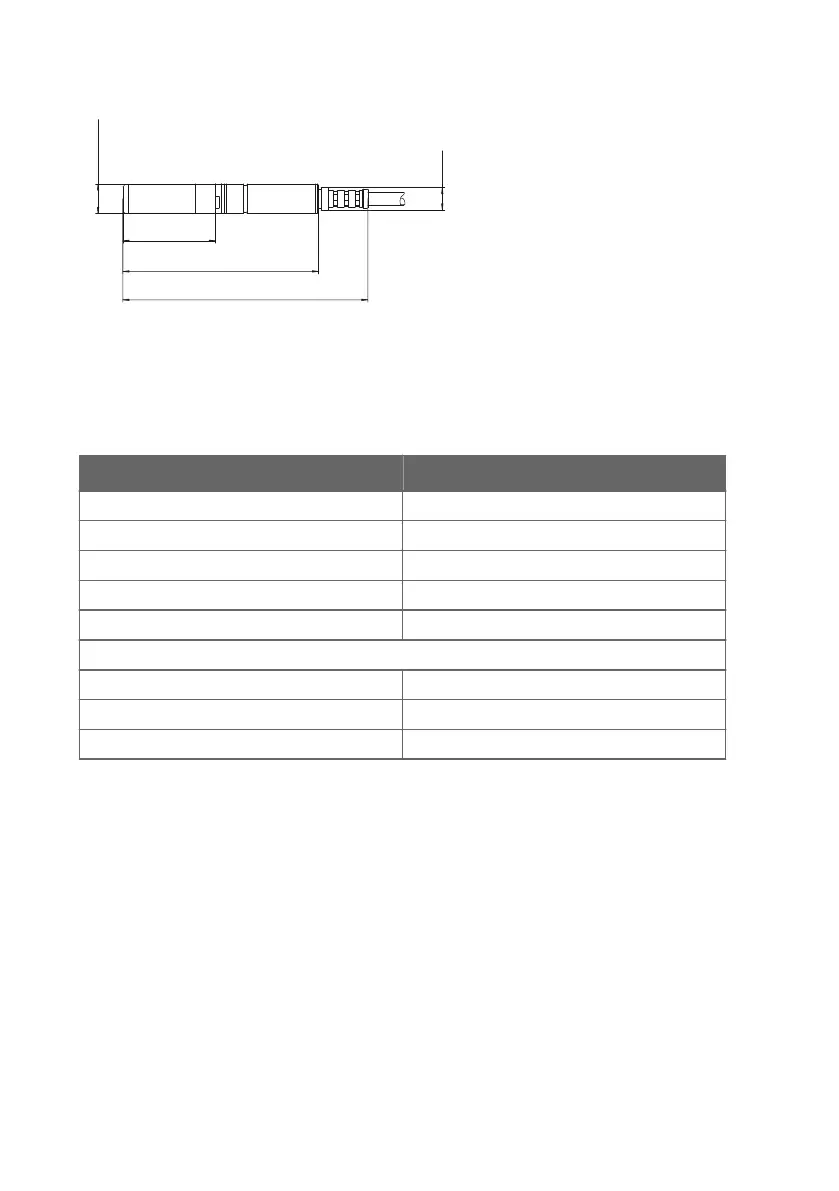

Figure 72 Dimensions in mm (inches)

13.7 HMP378 speciﬁcations

Table 50 HMP378 for pressurized pipelines

Property Description/value

Temperature range -70 … +180 °C (-94 … +356 °F)

Pressure range 0 … 4 MPa

Probe cable length 2, 5 or 10 meters (6 ft 7 in, 16 ft 5 in, 32 ft 10 in)

Probe diameter 13.5 mm/12 mm (0.53 in/0.47 in)

Available probe lengths 226 mm/448 mm (8.90 in/17.6 in)

Installation

Fitting body ISO1/2 solid structure DRW212076SP

Fitting body NPT1/2 solid structure NPTFITBODASP

Ball valve ISO 1/2 with welding joint BALLVALVE-1

HMT370EX User Guide M212305EN-B
