Vaisala HMT370EX - Transmitter Parts; Figure 2 HMT370 EX Transmitter External Parts

2.7 Transmitter parts
The external parts of the transmitter are shown in Figure 2 (page 16), and the internal parts of
the transmitter are shown in Figure 3 (page 17).
1 2
3
10
7
54
9
8
6

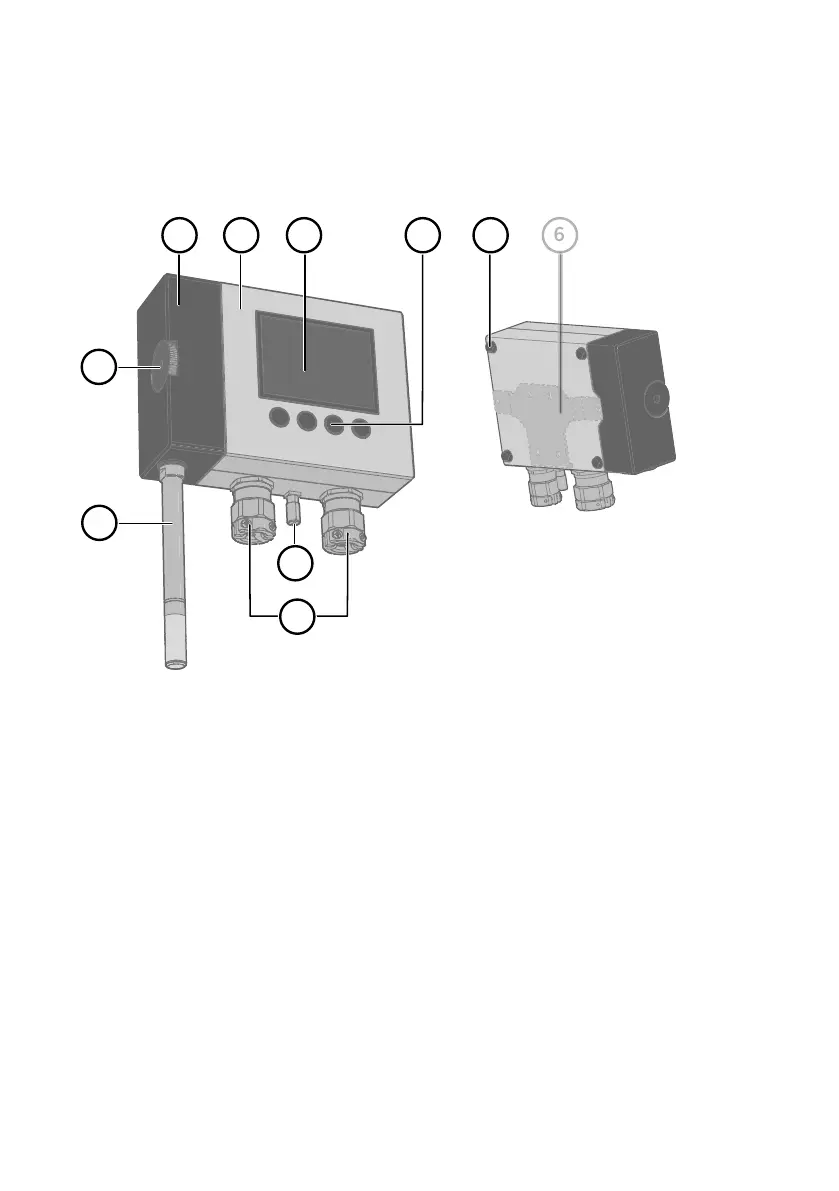

Figure 2 HMT370EX transmitter external parts
1
Detachable probe body
2 Transmitter body (for internal parts, see Figure 3 (page 17))
3 Graphical LCD display (see Display options (page 14))
4 Display interface buttons (see Local display overview (page 94))
5 Wall pads (4 pcs)
6 Retrofit mounting plate for replacing HMT360 installations (optional)
7 Probe body locking wheel
8 Probe head (for information on dierent probe options, see HMT370EX probe options
overview (page 61))
9 Grounding terminal
10 Lead-throughs for wiring (for lead-through accessory options, see Cable gland and
conduit options (page 17))
