6.2 HMT370EX display main menu

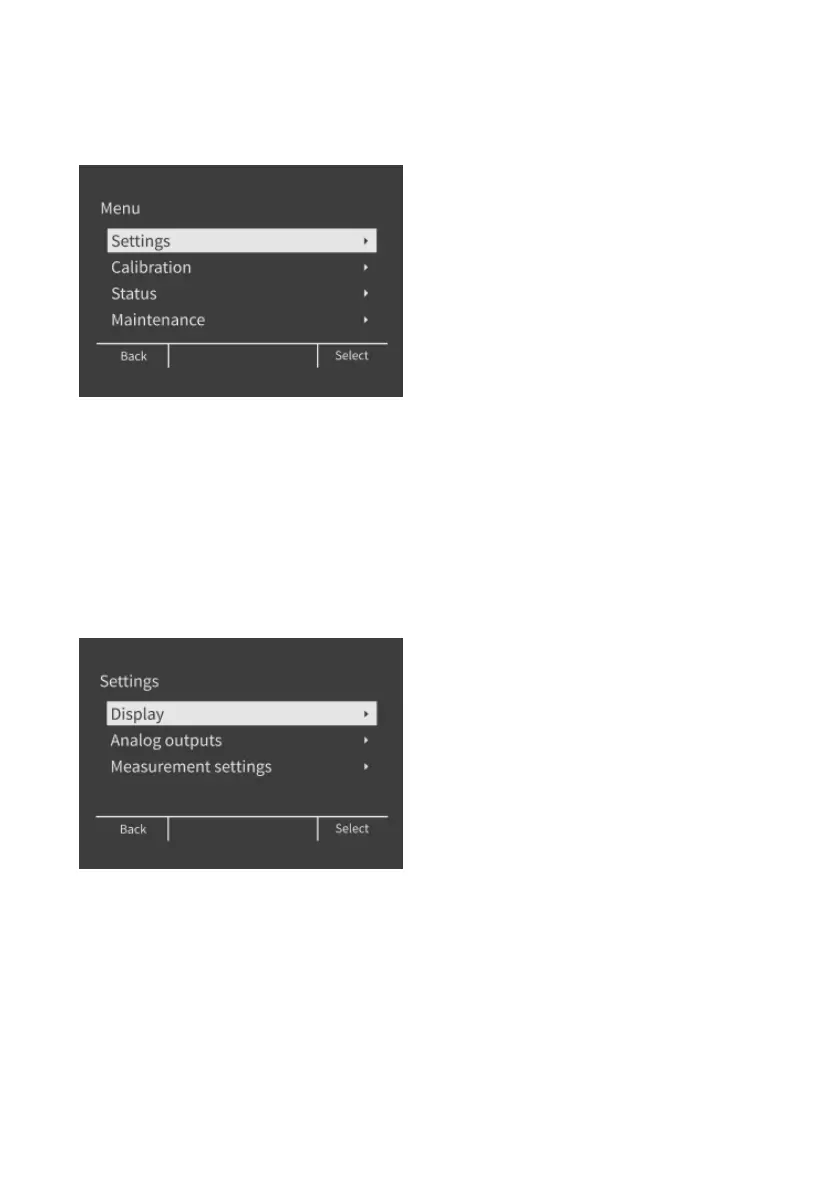

Figure 48 HMT370EX display interface main

The ﬁrst view of the display interface menu contains 4 submenus for dierent conﬁguration

options. See the following sections for more information on each submenu:

• Settings menu (page 98)

• Calibration menu (page 101)

• Status menu (page 101)

• Maintenance menu (page 102)

6.3

Settings menu

Figure 49 Settings menu

The Settings menu contains the following conﬁguration options:

Display

Selections for which parameters are displayed, display interface

language, graph settings, display PIN code protection, timeout (sleep

mode), and theme.

Analog outputs Analog output 1 and 2 parameter selection, scaling, error output

selection, and output test mode.

Measurement

settings

Environmental compensation and ﬁltering factor conﬁguration.
