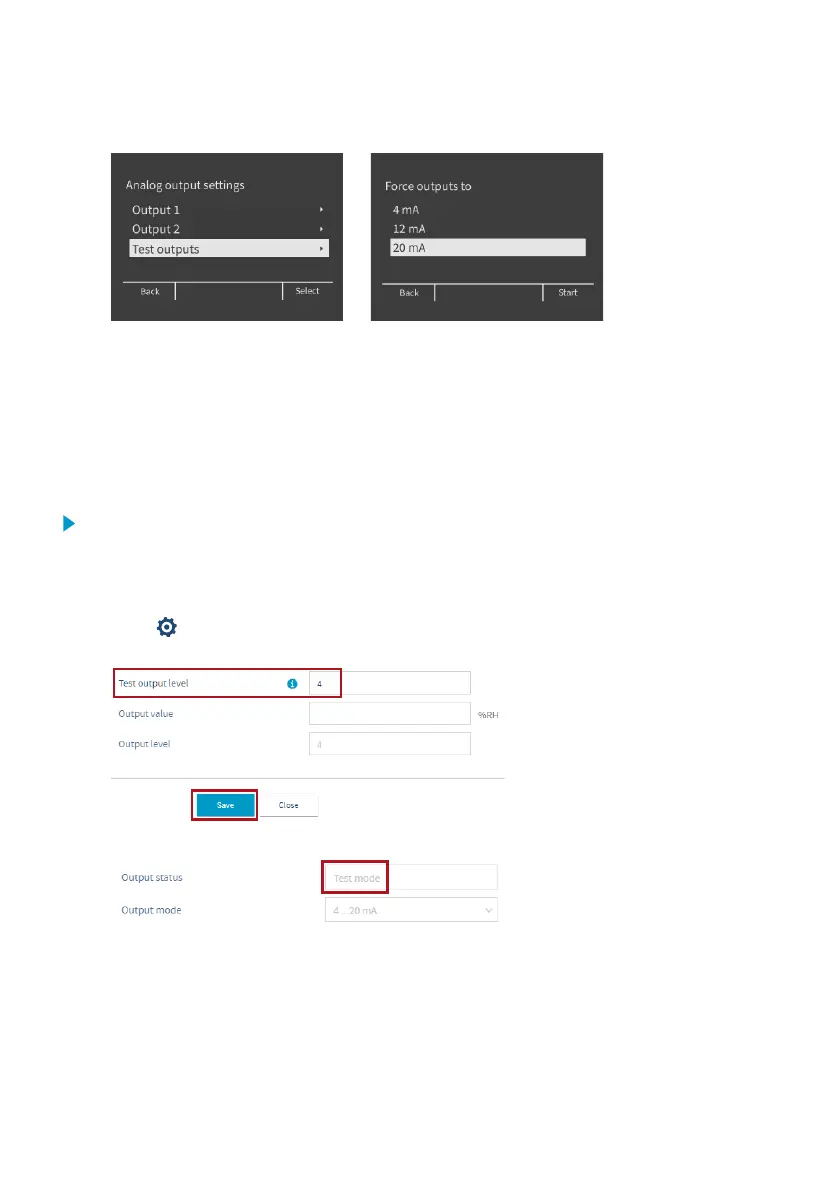

3. To start the output test mode with the local display interface, open the Settings > Analog
outputs > Test outputs menu.
4. Select an output level to force the output to (4, 12, or 20 mA) and select Start. Verify the
output with the multimeter and select Finish when done.
5. If the output is incorrect and requires adjustment, see Analog output adjustment overview
(page 122).
6. Remove the multimeter, close the transmitter cover, and reattach the probe body.
8.4.2 Testing analog output level with Insight
1. Detach the probe body and open the transmitter cover.
2. Connect a multimeter to the mA testing points located above the output screw terminals
on the transmitter component board (see Figure 59 (page 111)).
3. Connect to Insight (see Connecting to Insight PC software (page 103)).
4. Select
> Configure Device, and then the analog output channel you want to test.
5. Enter a test output value in the Test output level and select Save.
6. The Output mode field will show that the Test mode is now active.
7. Verify that the multimeter reading matches the Test output level value.
8. If the output is incorrect and requires adjustment, see Analog output adjustment overview
(page 122).
HMT370EX User Guide M212305EN-B
112
