Property Description/value

Swagelok for 12mm probe, 1/2" NPT thread SWG12NPT12

Duct installation kit 210697

Ø12 (0.47)

adjustable

duct wall

ﬂange

drilling 16...22

50 (1.97)

75 (2.96)

(0.63...0.87)

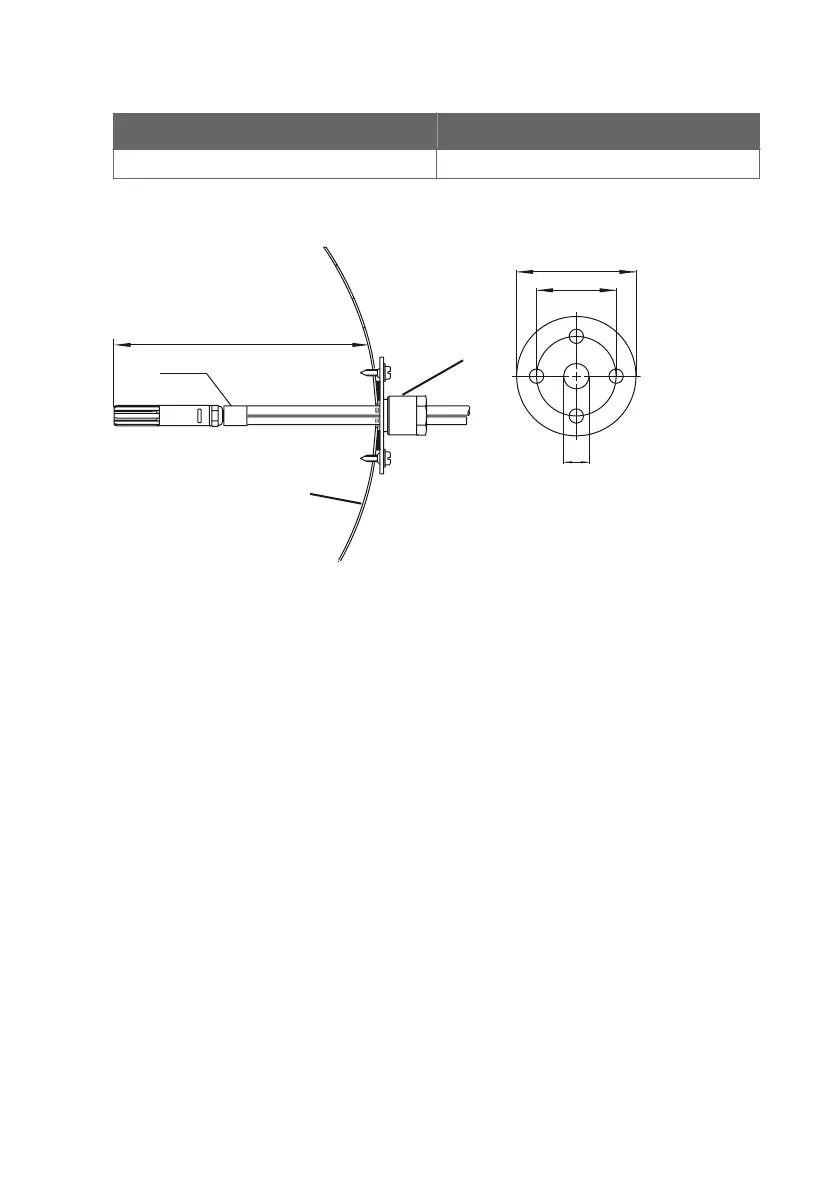

Figure 24 Left: Installation kit for duct mounting. Right: Installation ﬂange. Aluminum or stainless

steel.

4.5

HMP374 probe for high pressure applications

The HMP374 probe option is designed for measurement in pressurized spaces or vacuum

chambers. HMP374 is provided with a nut, a ﬁtting screw, and a sealing washer. Keep the

ﬁtting screw and the nut in place on the body of the probe during handling to prevent damage

to the highly polished surface of the probe.

For instructions on connecting the probe to a process with the ﬁtting screw, see Attaching

HMP374 to process (page 67).

Chapter 4 – Probe options
