Vaisala HMT370EX - HMP377 Specifications; Figure 71 HMP375 Probe and Stainless Steel Installation Flange; Table 49 HMP377 for High Humidities

To Next Page

To Previous Page

41 (1.6)

51 (2.0)

ø13.5 (0.53)

192 (7.56)

253 (9.96)

drilling 16...22 (0.63...0.87)

50 (1.97)

75 (2.96)

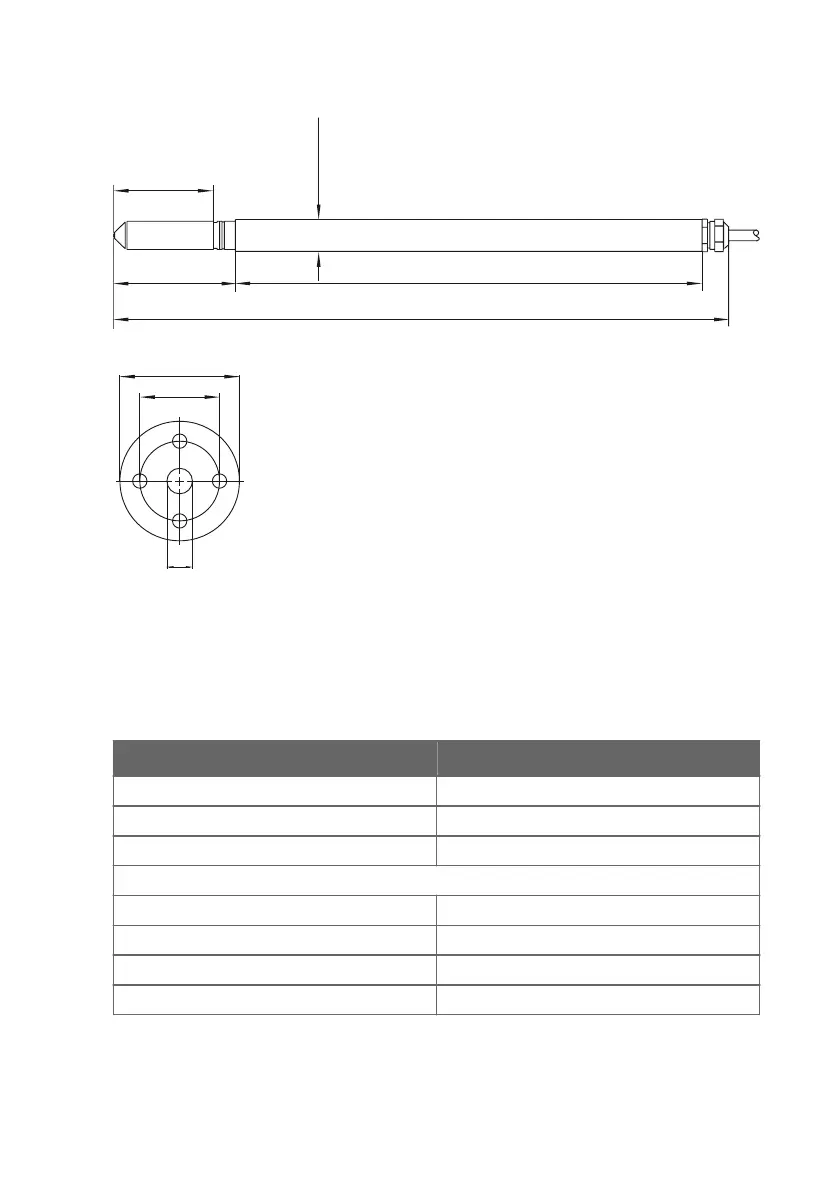

Figure 71 HMP375 probe and stainless steel installation ﬂange. Dimensions in mm (inches).

13.6

HMP377 speciﬁcations

Table 49 HMP377 for high humidities

Property Description/value

Temperature range -70 … +180 °C (-94 … +356 °F)

Probe cable length 2, 5 or 10 meters (6 ft 7 in, 16 ft 5 in, 32 ft 10 in)

Probe diameter 12 mm (0.47 in)

Installation

Duct installation kit 210697

Cable gland M20x1.5 with splitting seal HMP247CG

Swagelok for 12 mm probe, 3/8" ISO thread SWG12ISO38

Swagelok for 12 mm probe, 1/2" NPT thread SWG12NPT12

Chapter 13 – Technical data

139
