Smart Plus (PHT-35LHS)
Technical Manual
VT-TECH-Smart Plus-001
99 / 188
COPYRIGHT© 2018 VATECH.
ALL RIGHTS RESERVED

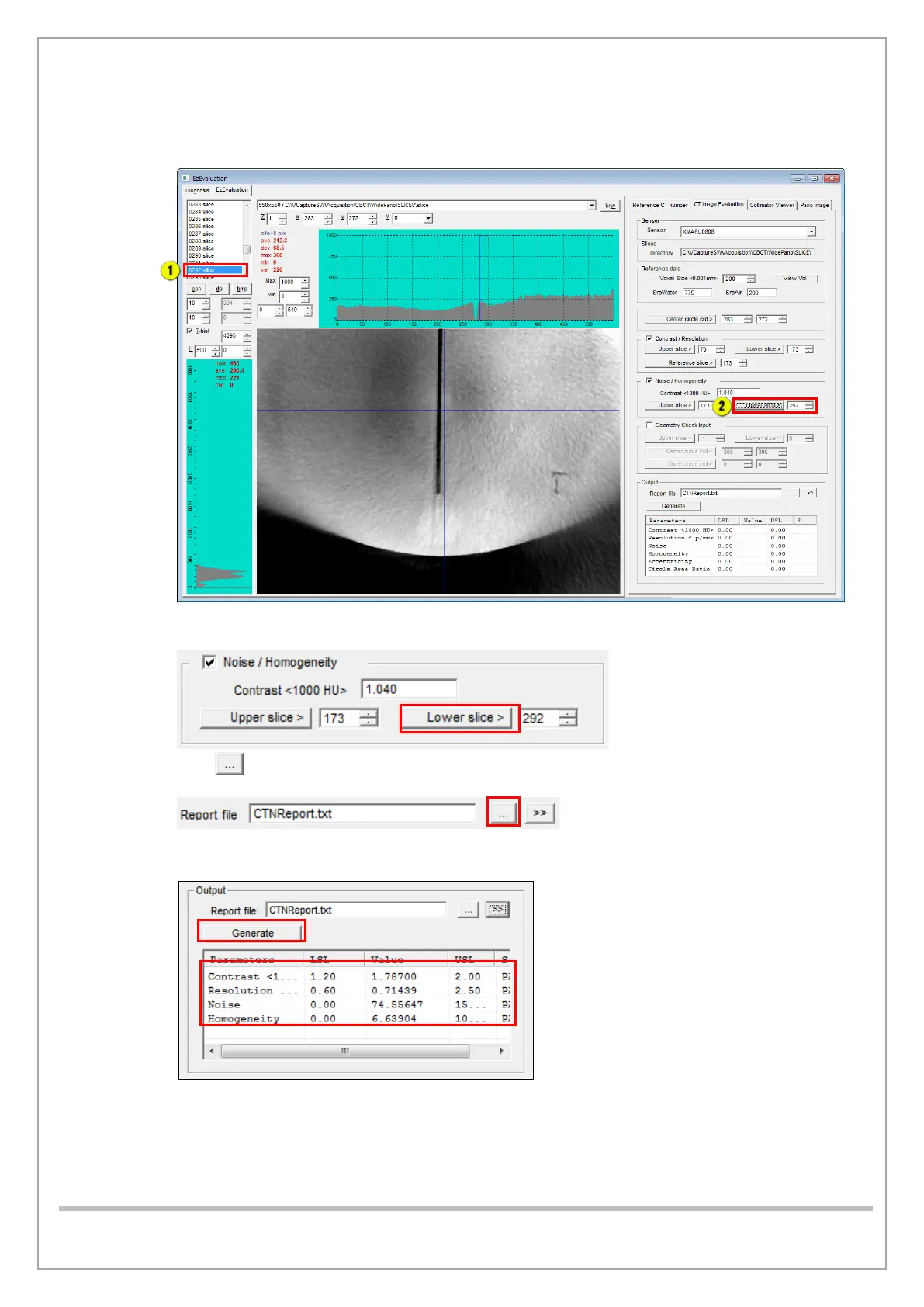

25) Select a top slice image of the Phantom Jig where its center line comes into view as shown in
the figure.
26) Click the Lower slice button under Noise / Homogeneity.
27) Click and specify the path where the test report is created.
28) Click Generate to get the result and compare it with the standard.
