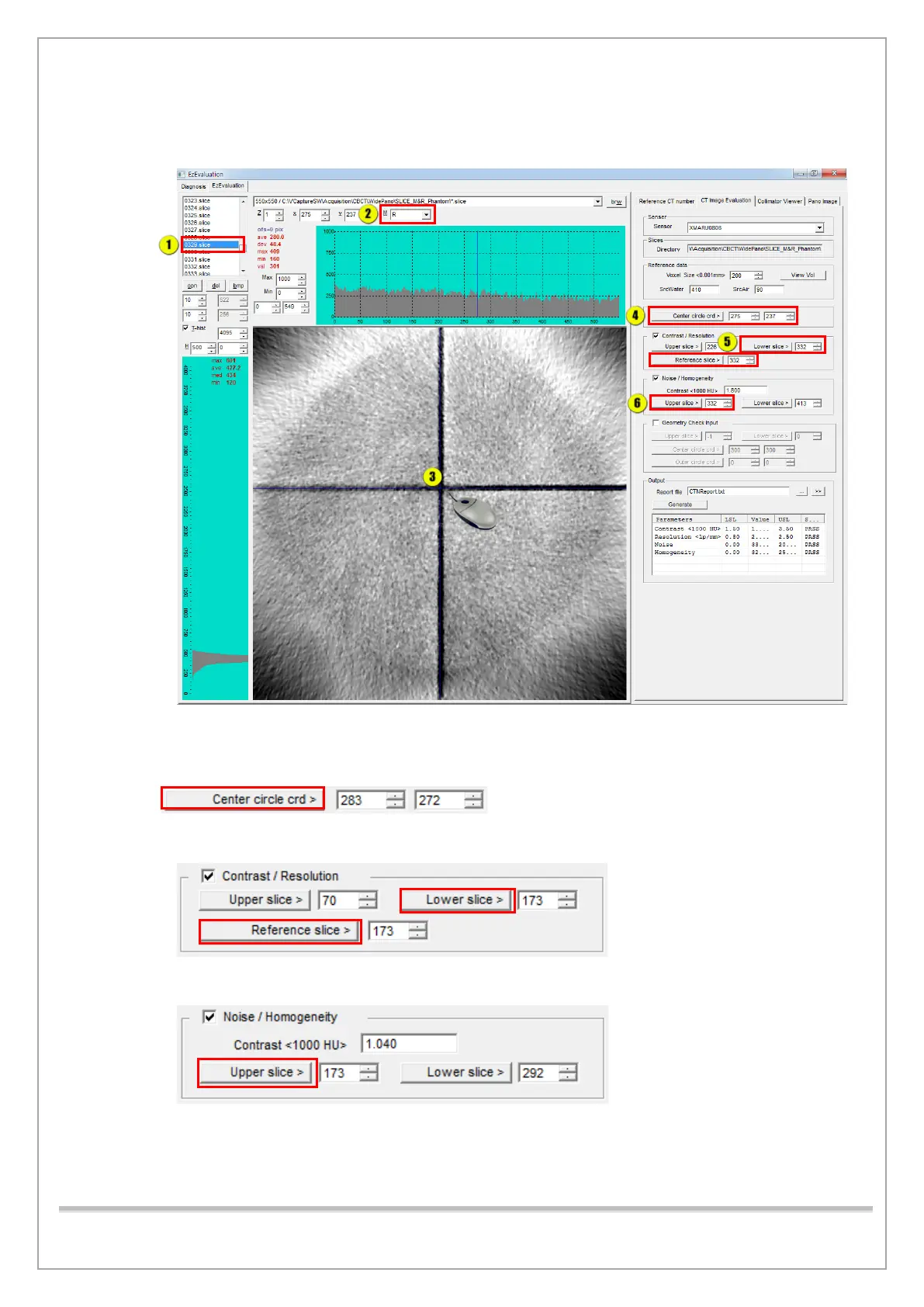

20) Select a top slice image of the Uniformity Check Phantom where its center line comes into view
as shown in the figure.
21) Select R in the M box.
22) Click the center of the image and click the Center circle crd button.
23) Click Lower slice and Reference slice button under Contrast / Resolution.
24) Click the Upper slice button under Noise / Homogeneity.
