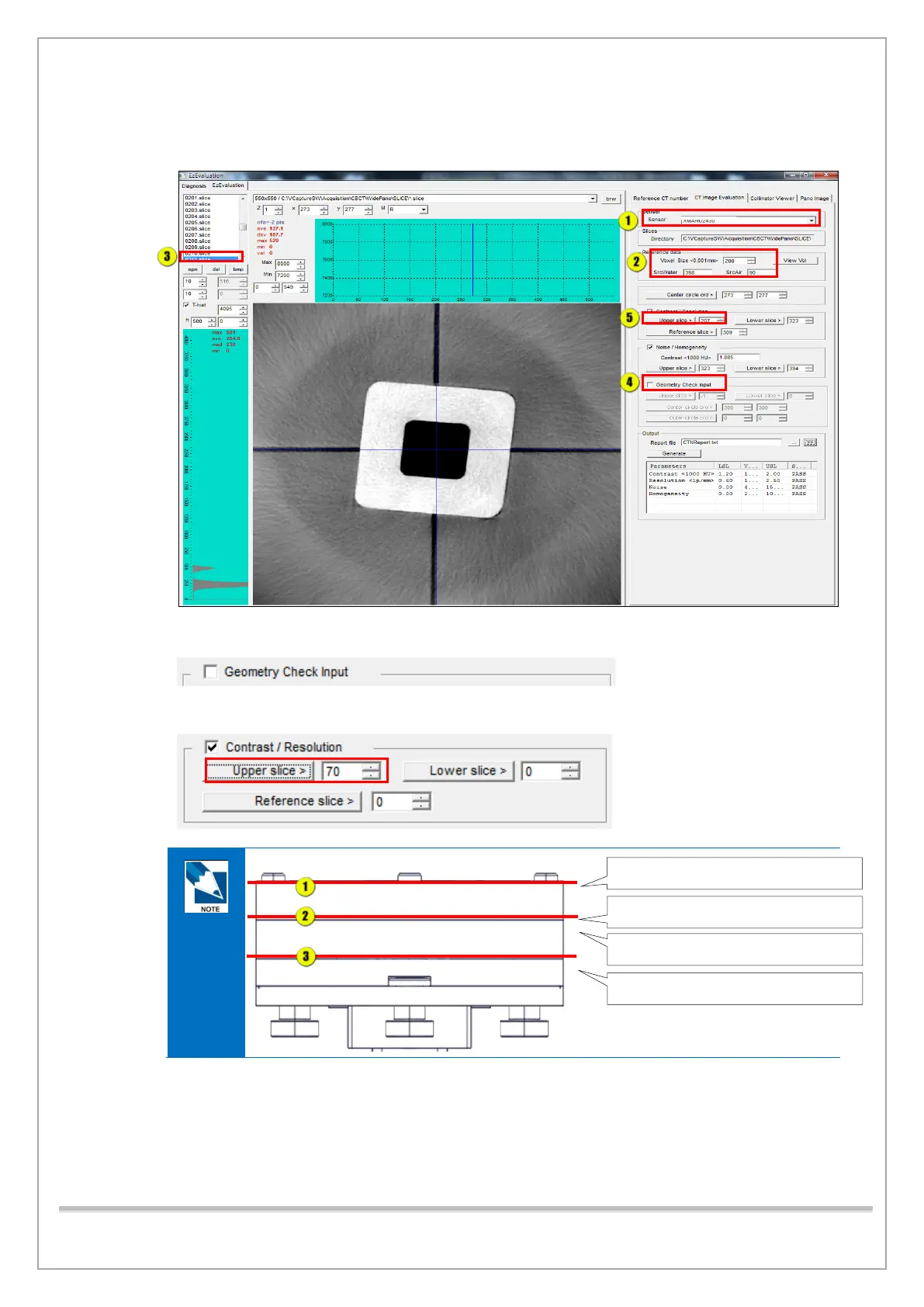

17) Select a top slice image of the M&R Check Phantom where its center line comes into view as
shown in the figure.
18) Clear Geometry Check Input check box.
19) Click the Upper Slice button under Contrast / Resolution.
Slice checkpoints
M&R CHECK PHANTOM
UNIFORMITY CHECK PHANTOM
PHANTOM JIG ASS’Y
Upper slice(Contrast/Resolution)
Lower slice(Contrast/Resolution)
Upper slice(Noise/Homogeneity)
Lower slice(Noise/Homogeneity)
