Smart Plus (PHT-35LHS)
Technical Manual
VT-TECH-Smart Plus-001
105 / 188
COPYRIGHT© 2018 VATECH.
ALL RIGHTS RESERVED

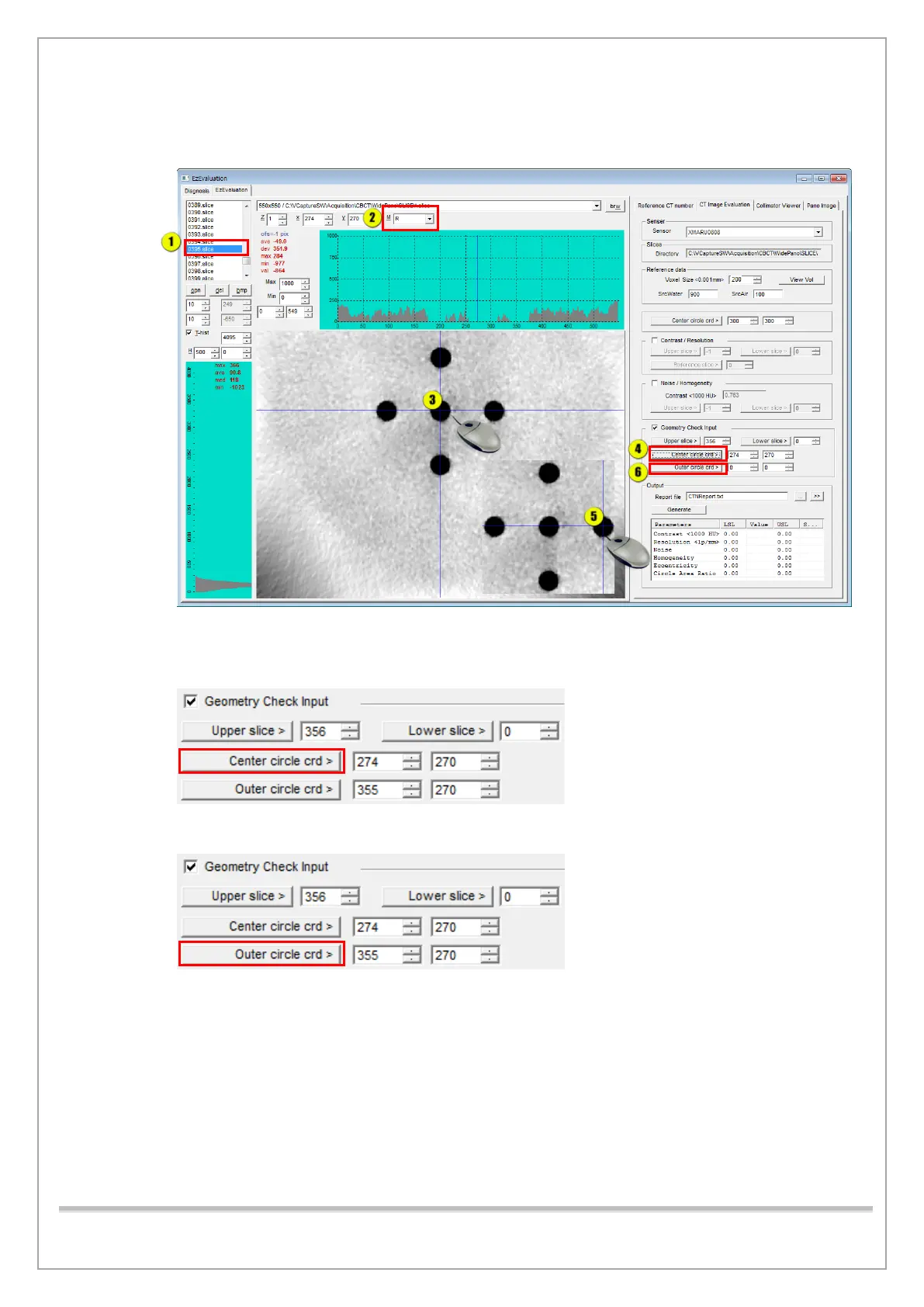

14) Select a slice image between the top and bottom of the Geometry Check Phantom as shown in
the figure.
15) Select R in the M box.
16) Click the center of the center circle and click the Center circle crd button.
17) Click the center of the outer circle and click the Outer circle crd button.
