Smart Plus (PHT-35LHS)
Technical Manual
VT-TECH-Smart Plus-001
153 / 188
COPYRIGHT© 2018 VATECH.
ALL RIGHTS RESERVED
Point Setting Method for Frontal Mode Image
Follow the procedure below to set the point for the frontal mode.
1) The values set in Frontal Mode are the same as SMV, Carpus, and Waters View.

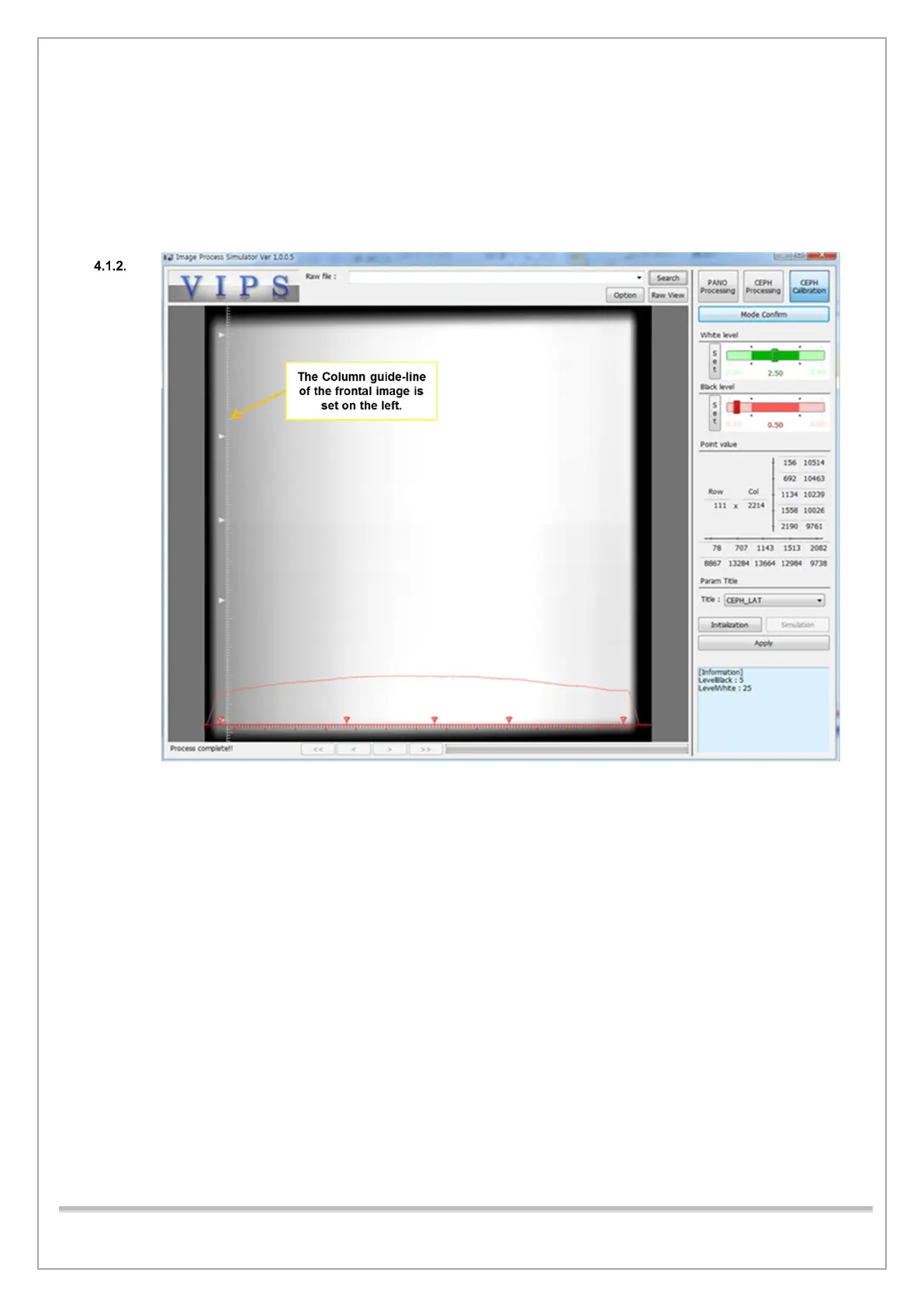

2) The lateral image Point setting method is the same, and the column guideline is set on the left.
