Smart Plus (PHT-35LHS)
Technical Manual
VT-TECH-Smart Plus-001
40 / 188
COPYRIGHT© 2018 VATECH.
ALL RIGHTS RESERVED

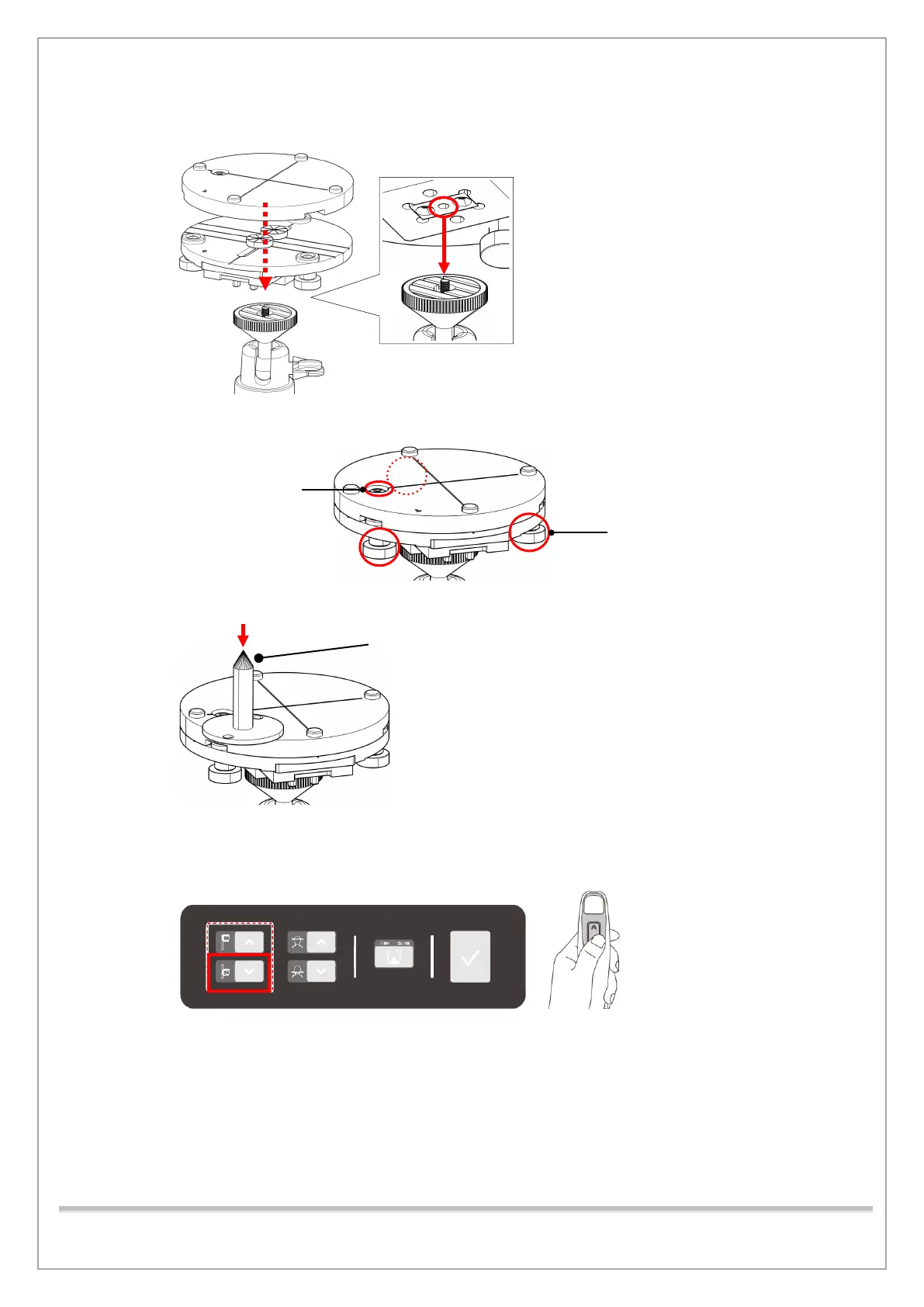

2) Assemble the PHANTOM JIG ASS’Y to the tripod as shown below.
3) Make the PHANTOM JIG ASS’Y level by using BUBBLE LEVEL and three ALIGN PINs.
4) Put the cone-shaped phantom on the PHANTOM JIG ASS’Y.
5) Move the Vertical Frame to the bottom position by using the Vertical Frame Up/Down button or
switch
Cone-shaped Phantom
BUBBLE LEVEL
ALIGN PIN
