Initial Operation
VTK-TR-BA-072e-1 - User Manual MDS 358X Series

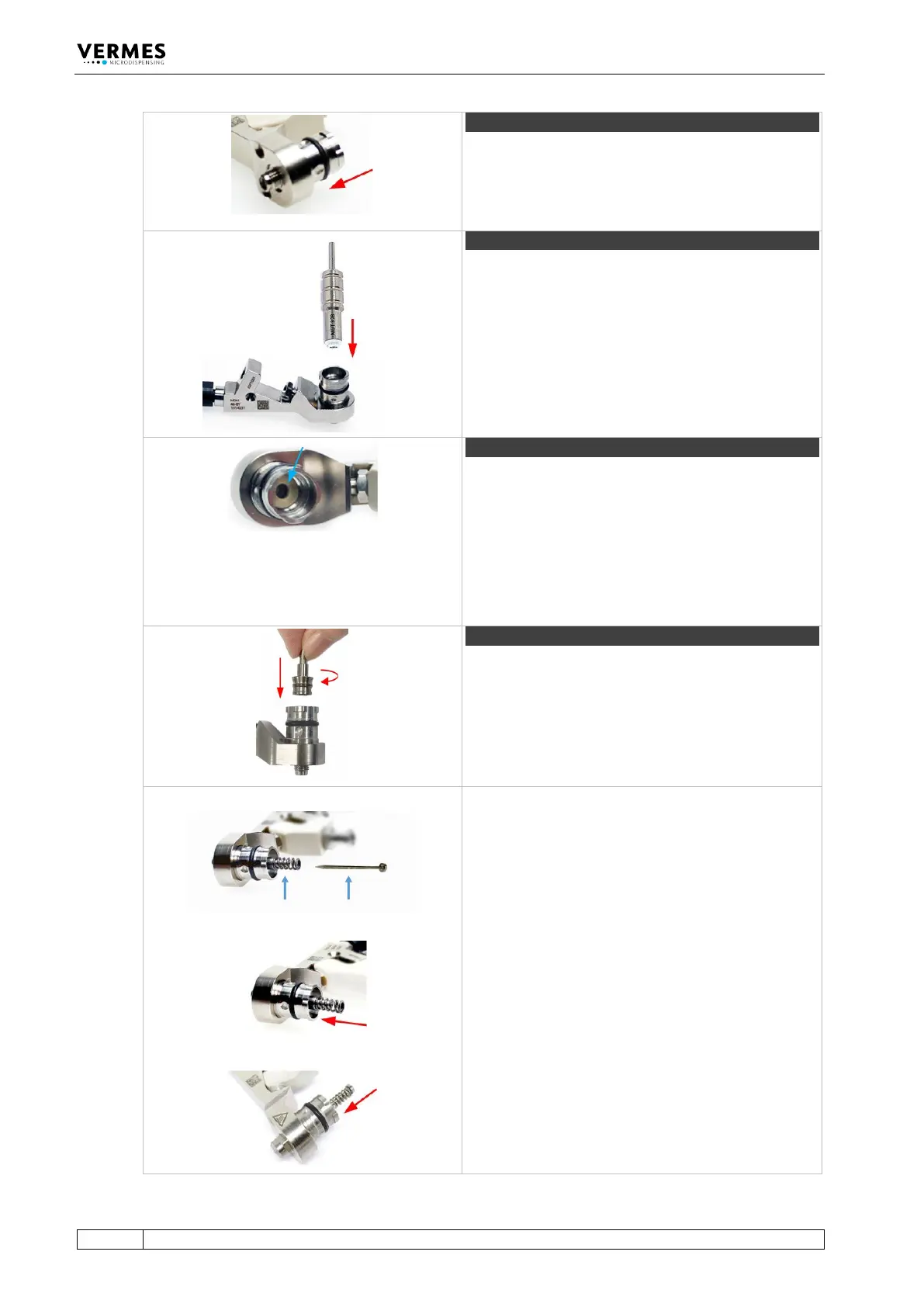

In case that you received the O-ring separately, you
have to mount it onto the fluid box body.
Pull the O-ring over the fluid box body with a pair of
tweezers. Be careful not to damage the O-ring.
Use MDT 328 - Tappet Sealing Changing Tool to press
the Tappet Sealing PE/PTFE/HT into the fluid box
body until it sits tight.
Step 4 (tappet centering piece)
Press the tappet centering piece into the fluid box
body. Use the wide end of the MDT 323 - Nozzle Insert
- Squeezing Out Tool TA. Make sure the tappet
centering piece rests flat.
Important note!
You do not need a tappet centering piece, if you use a
Step 5 (tappet and tappet centering screw)
Screw the Tappet Centering Screw BY into the fluid
box. Do not screw it tight yet. Screw it only for two
rotations.
Before mounting, please place a small droplet of
Tappet Grease TF (Order no. 1014637; droplet size ca.
2 mm) on the tappet and another on the tappet
spring (for placing see blue arrows in the picture).
Make sure that the tappet tip is free of grease. Rotate
the tappet and pull it in and out for three times to
spread the grease.
Place the tappet spring over the Tappet Centering
Screw BY.
Push the tappet rod through the tappet spring into
the Tappet Centering Screw BY. Make sure the tappet
goes through the tappet sealing.
