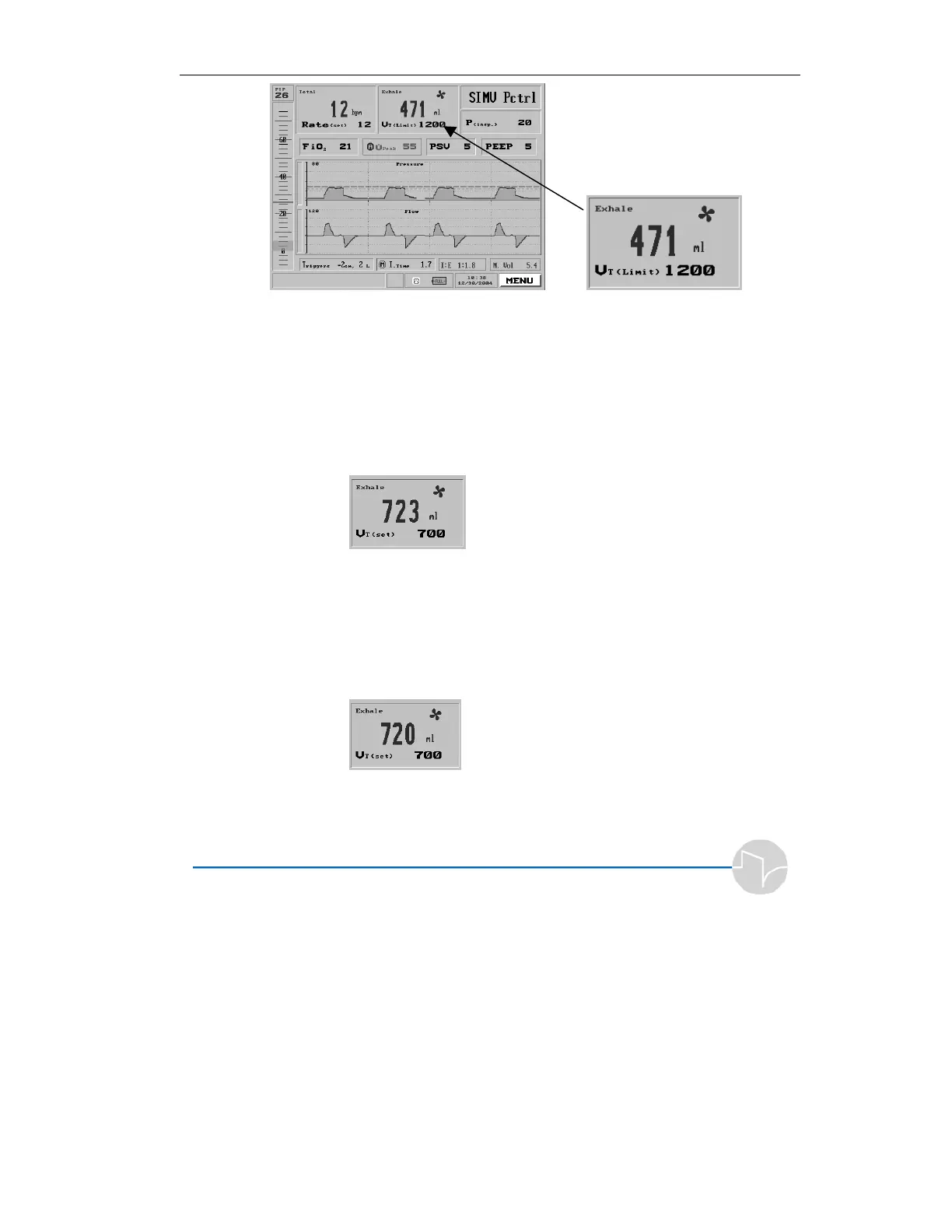

Figure 3.17 The Tidal Volume window, with the breath type icon
displayed
2. Mandatory Breaths
a) Pink Fan: Mandatory
Assist Breath (patient
initiated)
The iVent
201
has responded to
patient initiation by delivering a
breath
b) Blue Fan: Mandatory
Ventilator Breath
(ventilator initiated)
The iVent
201
has delivered a breath
without patient initiation
