General Operation

82 TVM Series Installation and Operation Handbook

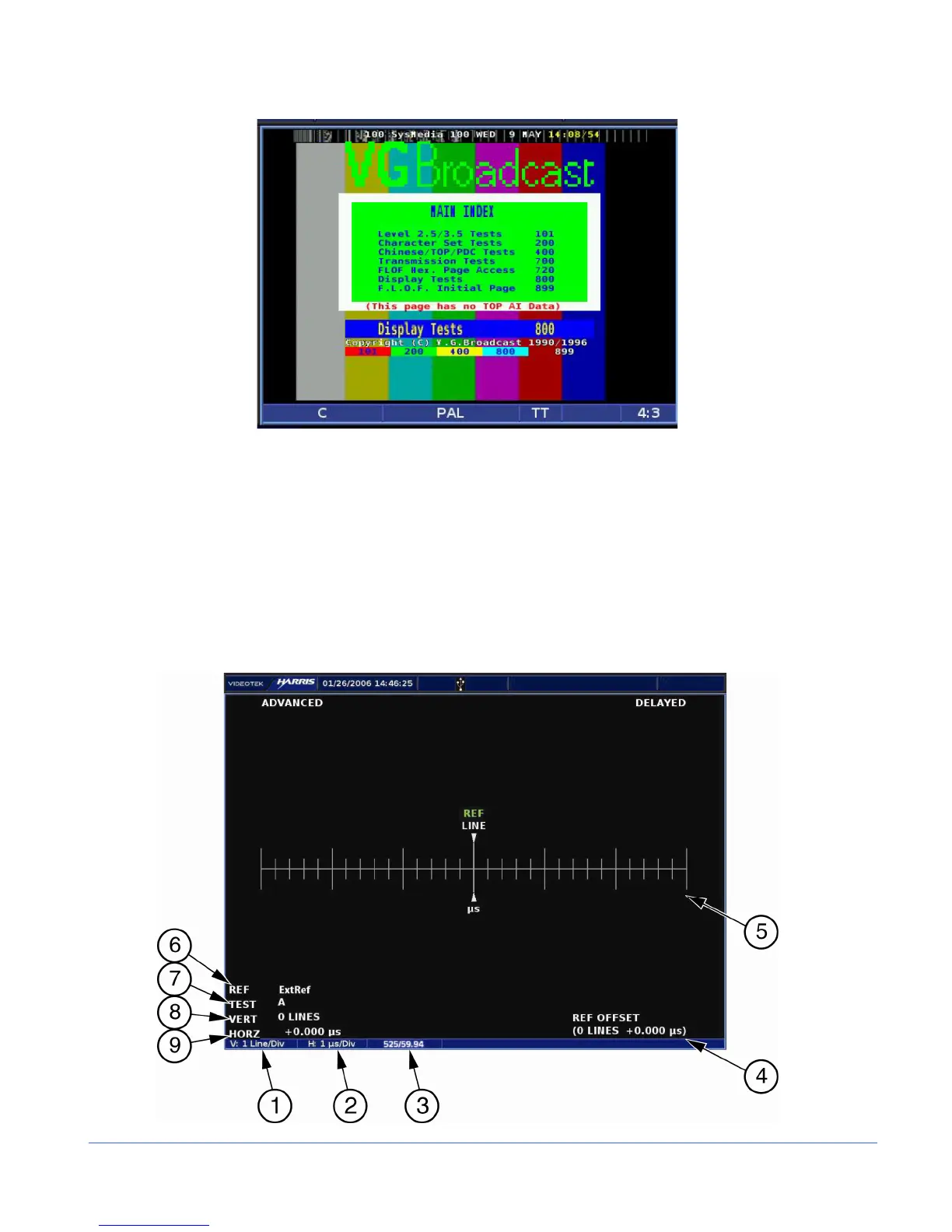

Figure 3-46. Teletext Sample Screen

Timing Display

Pressing the TIMING function button accesses the Timing display for the selected

pane. A Timing display diagram is shown in Figure 3-47 and described in Error!

Reference source not found.. The diagram illustrates the general location for the

various Timing display fields.

Relative timing of the inputs is compliant with SMPTE RP168.

Figure 3-47. Timing Display Diagram
