General Operation

52 TVM Series Installation and Operation Handbook

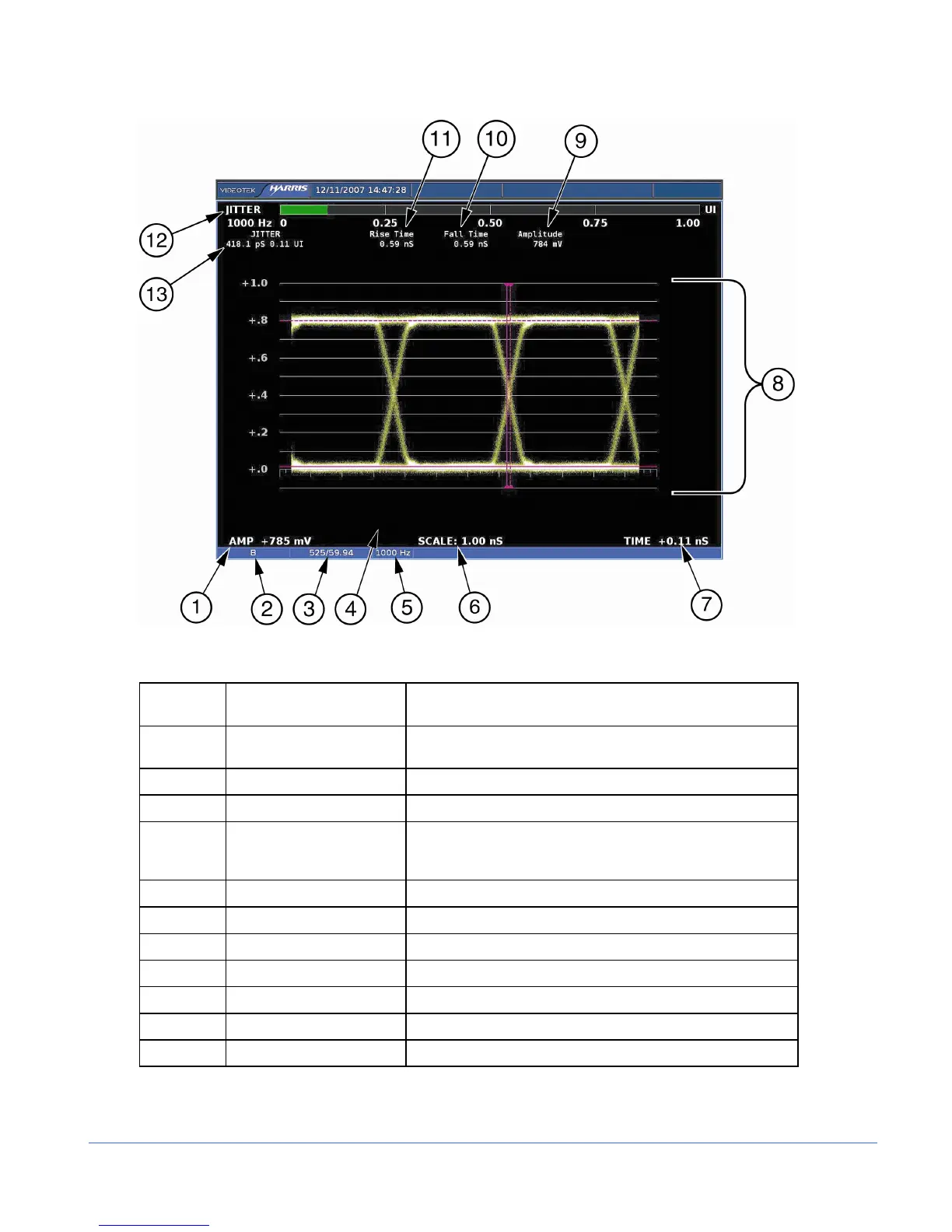

Figure 3-21. Eye Pattern Display Diagram

Table 3-16. Description of Eye Pattern Display Diagram

Field

Identifier

Field Information Nomenclature

1 Amplitude cursor readout Displays the amplitude cursor as AMP and the number in

2 Input Displays user-configurable source IDs for input and routers

3 Standard Line rate/Frame rate

4 Zoom

• Displays the Zoom when enabled

• Blank when Zoom is disabled

• Press the ZOOM button cycle through Zoom modes

5 High Pass Filter Displays the selected eye filter

6 Scale Displayed in ps for HD or ns for SD

7 Time cursor readout Displays the time cursor as Time and the number in ps

8 EYE graticule Displays the Eye Pattern graticule

9 Amplitude Value Displays a numeric value for Eye Amplitude

10 Fall Time Displays a numeric value for fall time

11 Rise Time Displays a numeric value for rise time
