Video Metadata

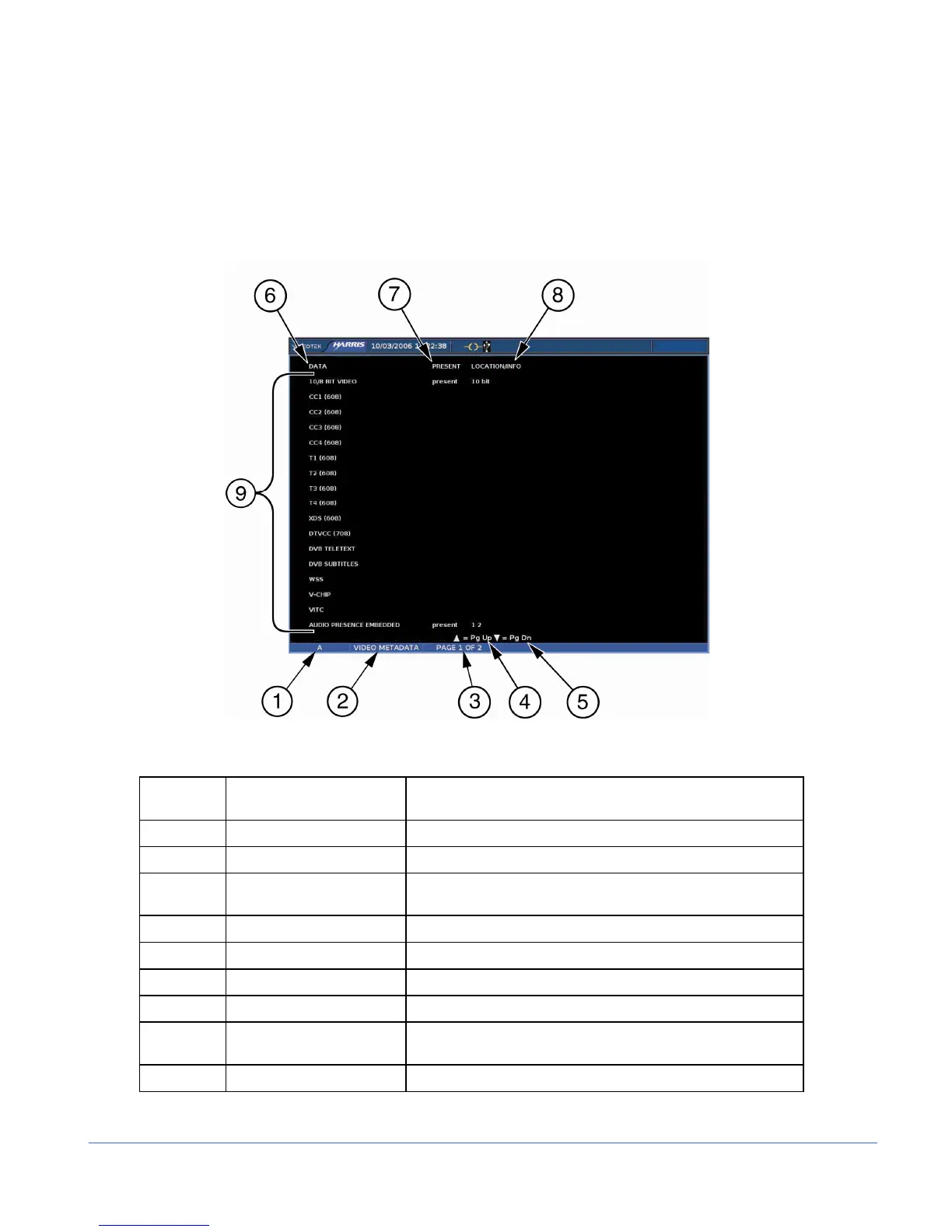

The Video metadata display provides a description and location in text form of specific
data embedded in the video signal. A Video Metadata display diagram is shown in
Figure 3-59 and described in Table 3-50. The diagram illustrates the general location
for the various Video Metadata display fields.
Figure 3-59. Video Metadata Display Diagram
Table 3-50. Description of the Video Metadata Display Diagram
Field
Identifier
Field Information Nomenclature
1 Input Displays user-configurable source IDs for input and routers
2 Display Label Displayed as Video Metadata
3 Page Information Shown as page X of Y, where X is the page number and Y is
the total number of pages
4 Paging Information Displays ▲ = PAGE UP
5 Paging Information Displays ▼ = PAGE DOWN
6 Data Column Label Indicates the DATA column
7 Present Column Label Indicates the data detected
8 Location/Info Column
Label
Indicates the location information from the appropriate
specification when it is detected
9 Metadata Information Displays the video metadata information
