General Operation
TVM Series Installation and Operation Handbook 53
Copyright © 2008, Harris Corporation
Table 3-16. Description of Eye Pattern Display Diagram
Field
Identifier
Field Information Nomenclature
12 Jitter Display Bar Displays the Jitter display. Jitter display changes according
to the EYE PATTERN > JITTER DISPLAY TYPE menu in
the Global Setup menu
13 Jitter Value Displays a numeric value for the jitter on the signal

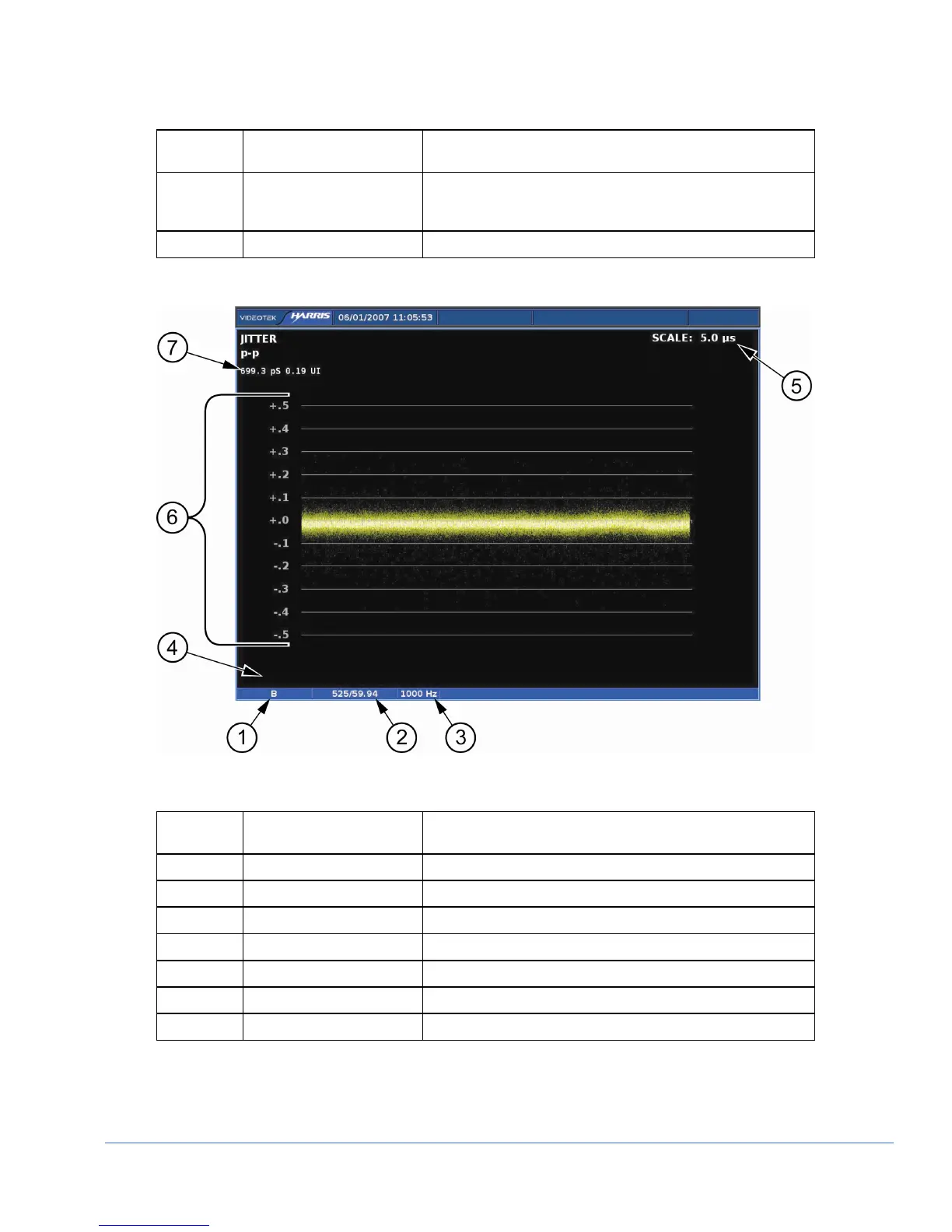

Figure 3-22. Jitter Waveform Display Diagram
Table 3-17. Description of Jitter Waveform Display Diagram
Field
Identifier
Field Information Nomenclature
1 Input Displays user-configurable source IDs for input and routers
2 Standard Line rate/Frame rate
3 High Pass Filter Displays the selected eye filter
4 Amplitude cursor readout Displays amplitude cursor as AMP and the number in mV
5 Horizontal Jitter Scale Displayed in µs
6 Jitter graticule Displays the Eye Pattern graticule shown in p-p
7 Jitter p-p Value Display a numeric value for the jitter on the signal
