General Operation
TVM Series Installation and Operation Handbook 93
Copyright © 2008, Harris Corporation

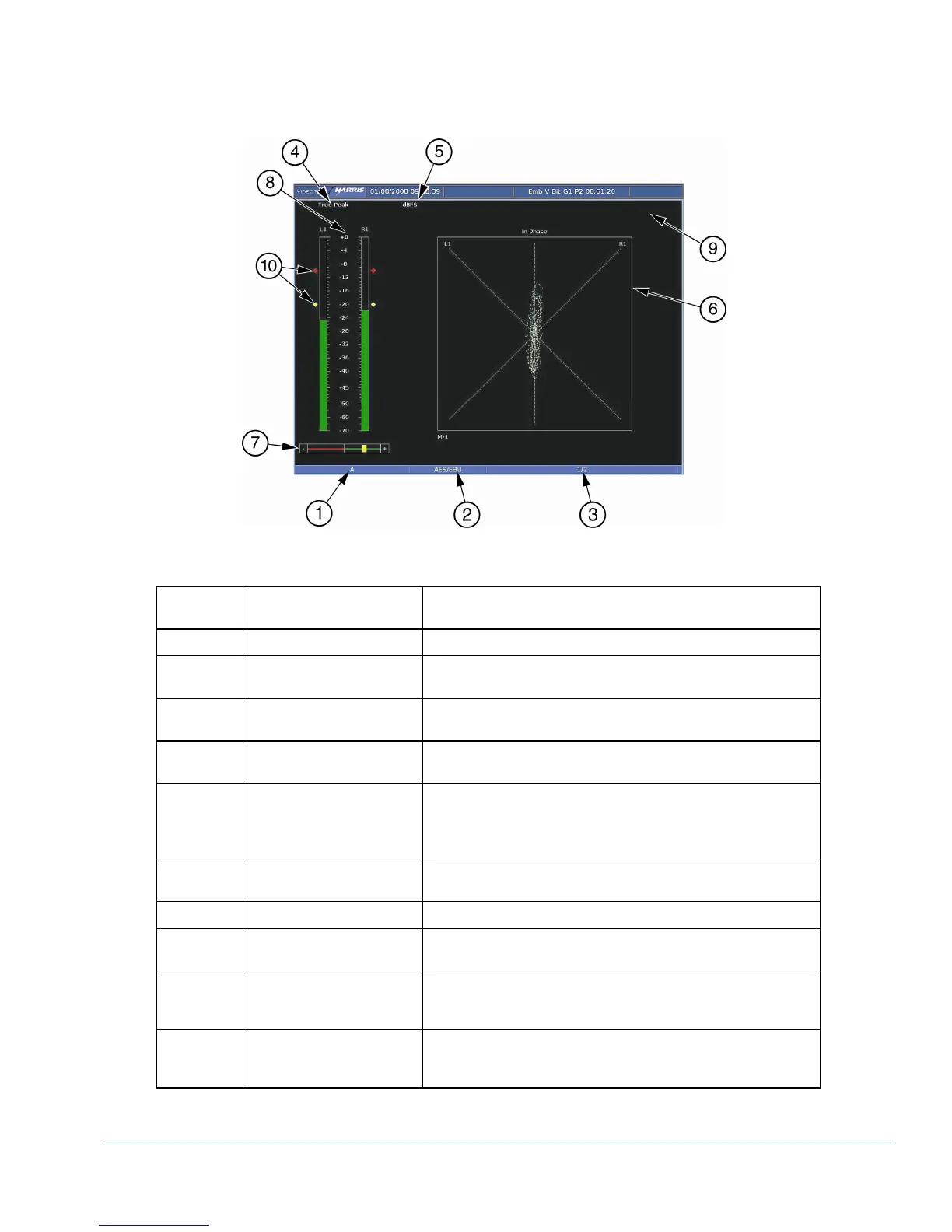

Figure 3-50. Two Bar Graph Display with Lissajous Diagram
Table 3-40. Description of Two Bar Graph Display with Lissajous Diagram
Field
Identifier
Field Information Nomenclature
1 Input Displays user-configurable source IDs for input and routers
2 Audio Type Displayed as Analog, AES, Embedded, Dolby AES, Dolby
Embedded
3 Audio Input Displayed information is option dependent; shown as 1-16
(analog is 1-8, AES is 1-16 or 1-8, and Embedded is 1-16)
4 Meter Response Displays the selected meter response: VU, Peak, True Peak,
VU + Peak, VU + True Peak, Loudness, Custom
5 Scale Selection Displays the selected meter scale: Type I, Type IIa, Type IIb,
Type I + 8, Nordic, DIN 45406, dBFS, Zero REF dBFS,
Custom dB, and Custom dBFS (scales are dependent upon
audio type)
6 Lissajous Display Lissajous of bar graph 1 with labels for R, L, and the number
of the meter being monitored (i.e., M-1)
7 Phase Bar Phase Meter of bar graph 1
8 Audio Graticule (with
meter labels)
Shown as Stereo Pairs (L1, R1), SMPTE 320M, or Custom
label
9 Zoom
• Zoom (when enabled)
• Blank when disabled
• Press the ZOOM button to cycle through Zoom modes
10 Level Markers Shows peak and reference levels for the signal; this can be
adjusted in the AUDIO SETUP > METER SETUP > REF
DIGITAL (or ANALOG) menu
