General Operation
98 TVM Series Installation and Operation Handbook
Copyright © 2008, Harris Corporation

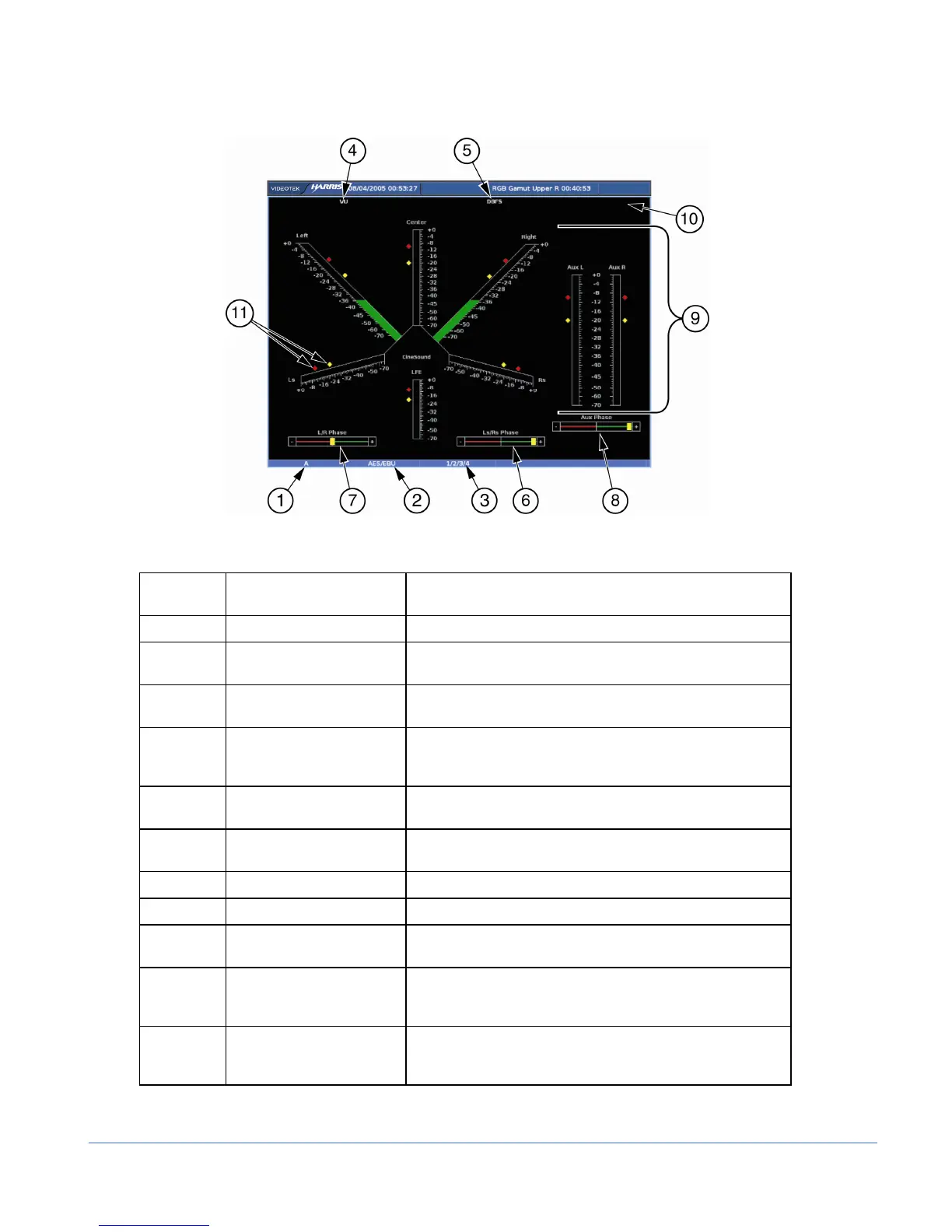

Figure 3-54. CineSound 5.1 Display Diagram
Table 3-45. Description of CineSound Display Diagram
Field
Identifier
Field Information Nomenclature
1 Input Displays user-configurable source IDs for input and routers
2 Audio Type Displayed as Analog, AES, Embedded, Dolby AES, Dolby
Embedded
3 Audio Input Displayed information is option dependent; shown as 1-16
(analog is 1-8, AES is 1-16 or 1-8, and Embedded is 1-16)
4 Meter Response Displays selected meter response: VU (normal), Peak,
True Peak, VU + Peak, VU + True Peak, Loudness,
Custom
5 Scale Selection Displays the selected meter scale: Type I, Type IIa, Type
IIb, Type I + 8, Nordic, DIN 45406, dBFS, Zero REF dBFS
6 Phase Meter of Surround
LR
Displays the Surround LR Phase
7 Phase Meter of Front LR Displays the Front LR Phase
8 Phase Meter of AUX Displays the AUX Phase
9 Audio Graticule (with
meter labels)
Shown as LFE, Ls, Left, Center, Right, Rs, and AUX L, R
(or Custom label); these are the default labels
10 Zoom
• Zoom (when enabled)
• Blank when disabled
• Press the ZOOM button to cycle through Zoom modes
11 Level Meters Shows peak and reference levels for the signal; this can be
adjusted in the AUDIO SETUP > METER SETUP > REF
DIGITAL (or ANALOG) menu
