General Operation
126 TVM Series Installation and Operation Handbook
Copyright © 2008, Harris Corporation
Table 3-60. Data Analyzer Display with TVM-VTM-3GB (Levels A and B)
Key Indicator Description
1 LINE Indicator that shows the line number of the picture along with the
Even (E) and/or Odd (O) line selection; line number corresponds to
the cursor on the picture
2 WORD Indicates the data word associate with both the Stream 1 and
Stream 2 data
3 STREAM 1 Data values for Stream 1 represented as CB, Y, CR, and Y
l
in
Decimal, Hexadecimal, or Binary form
4 STREAM 2 Data values for Stream 2 represented as CB, Y, CR, and Y
l
in
Decimal, Hexadecimal, or Binary form
For Level B or Dual-link operation, data is represented as two separate full bandwidth
data links.

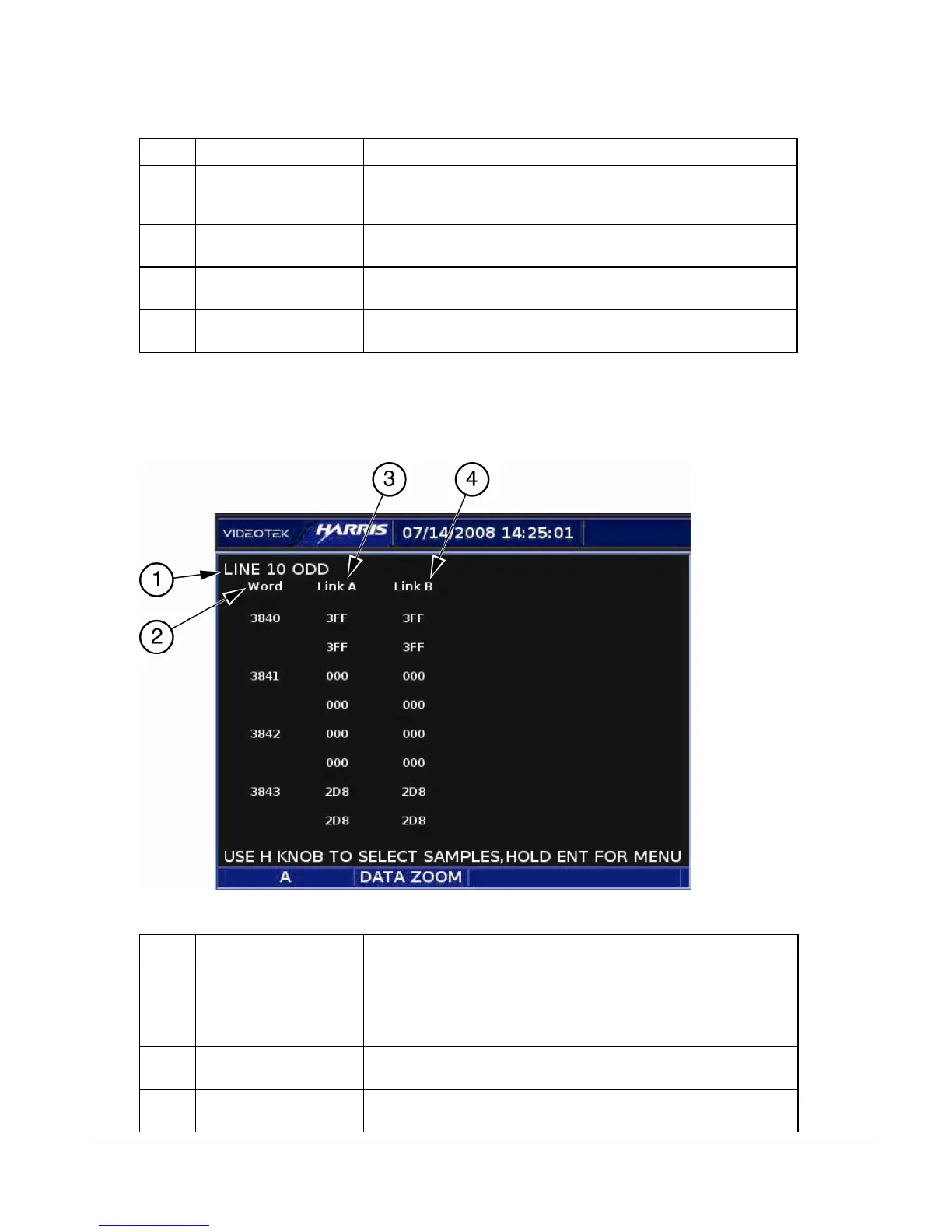

Figure 3-69. Data Analyzer Display with TVM-VTM-3GB (Dual-link)
Table 3-61. Data Analyzer Display with TVM-VTM-3GB (Level B)
Key Indicator Description
1 LINE Indicator that shows the line number of the picture along with the
Even (E) and/or Odd (O) line selection line number corresponds to
the cursor on the picture
2 WORD Indicates the data word associate with both Link A and Link B data
3 LINK A Data values for Link A represented as C
B
, Y, C
R
, and Y
l
in Decimal,
Hexadecimal, or Binary form
4 LINK B Data values for Link B represented as C
B
, Y, C
R
, and Y
l
in Decimal,
Hexadecimal, or Binary form
