General Operation
TVM Series Installation and Operation Handbook 55
Copyright © 2008, Harris Corporation

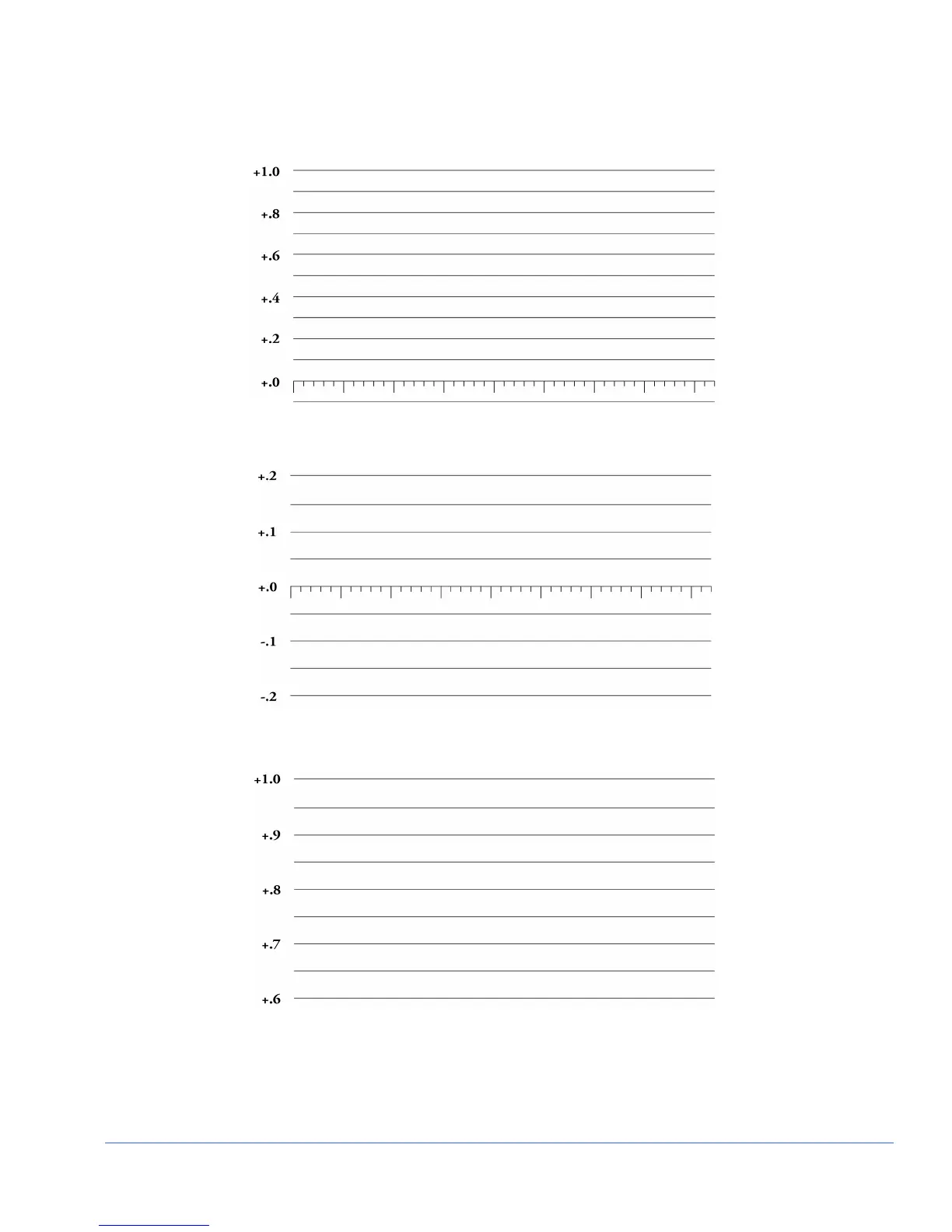

Figure 3-24 to Figure 3-26 displays the Eye pattern graticules.
Figure 3-24. Eye Pattern Graticule
Figure 3-25. Eye Pattern Graticule at Zoom 0V
Figure 3-26. Eye Pattern Graticule at Zoom 800 mV
