Word Parameter Dimension
23 Splice correction 9/9 0.1 mm
24 Obstruction width 0.1 mm
25-29 Spare

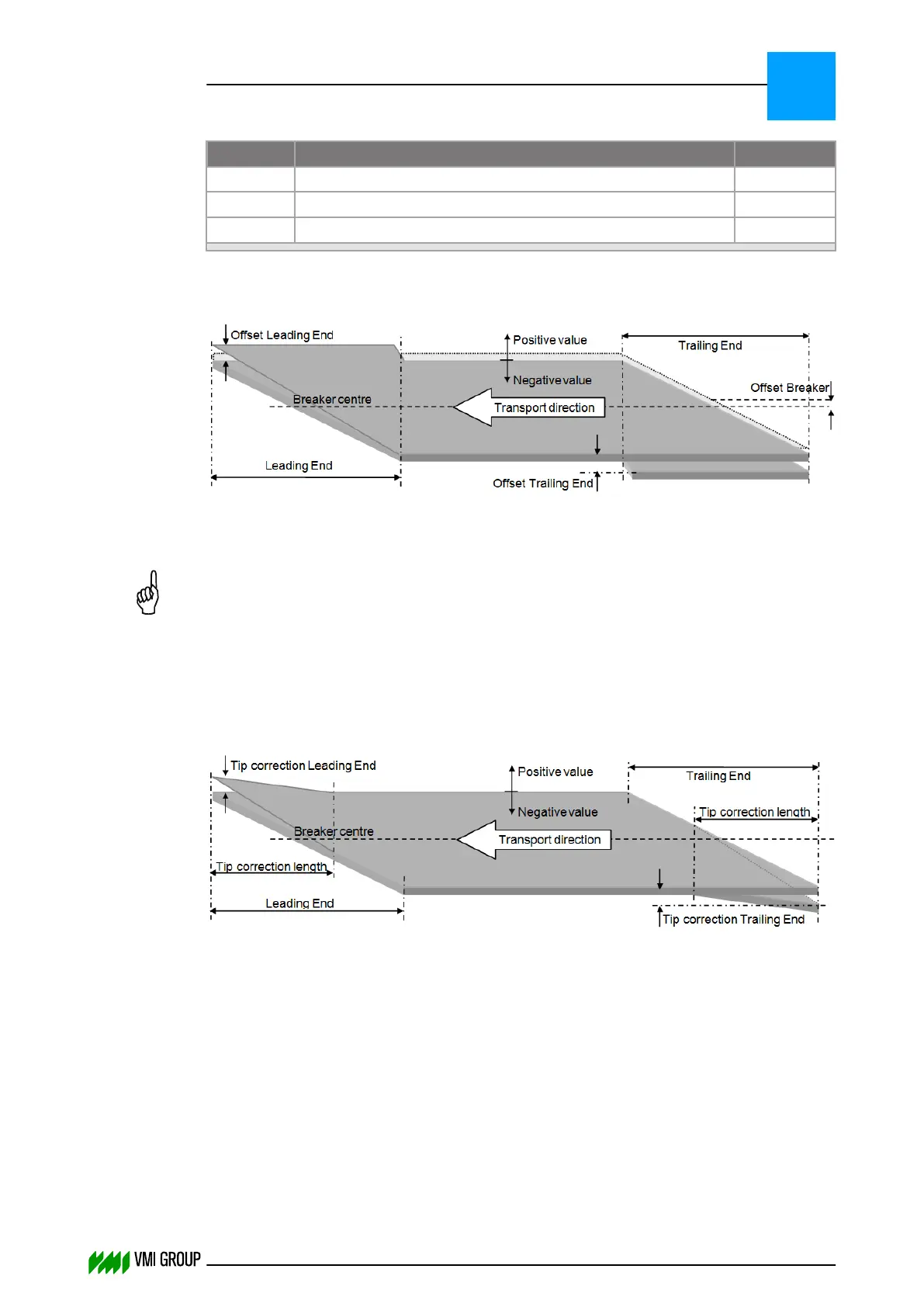

6.2.1.1 Offsets
Offset Breaker is a displacement of the total breaker to the right (positive value) or to the
left (negative value).
NOTICE
Left / right is determined by the flow of the material.
Offset Leading End is a displacement over the full length of the leading end.
Offset Trailing End is a displacement over the full length of the trailing end.
6.2.1.2 Tip correction
Tip Correction Leading End is a displacement to the tip of the leading end.
Tip Correction Trailing End is a displacement to the tip of the trailing end.
The correction is linear decreasing from tip correction value at the tip to zero at
Tip Correction Length distance from the tip. Tip Correction Length is equal for both
leading and trailing end.
PARAMETERS
Parameter buffer
6
