WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS

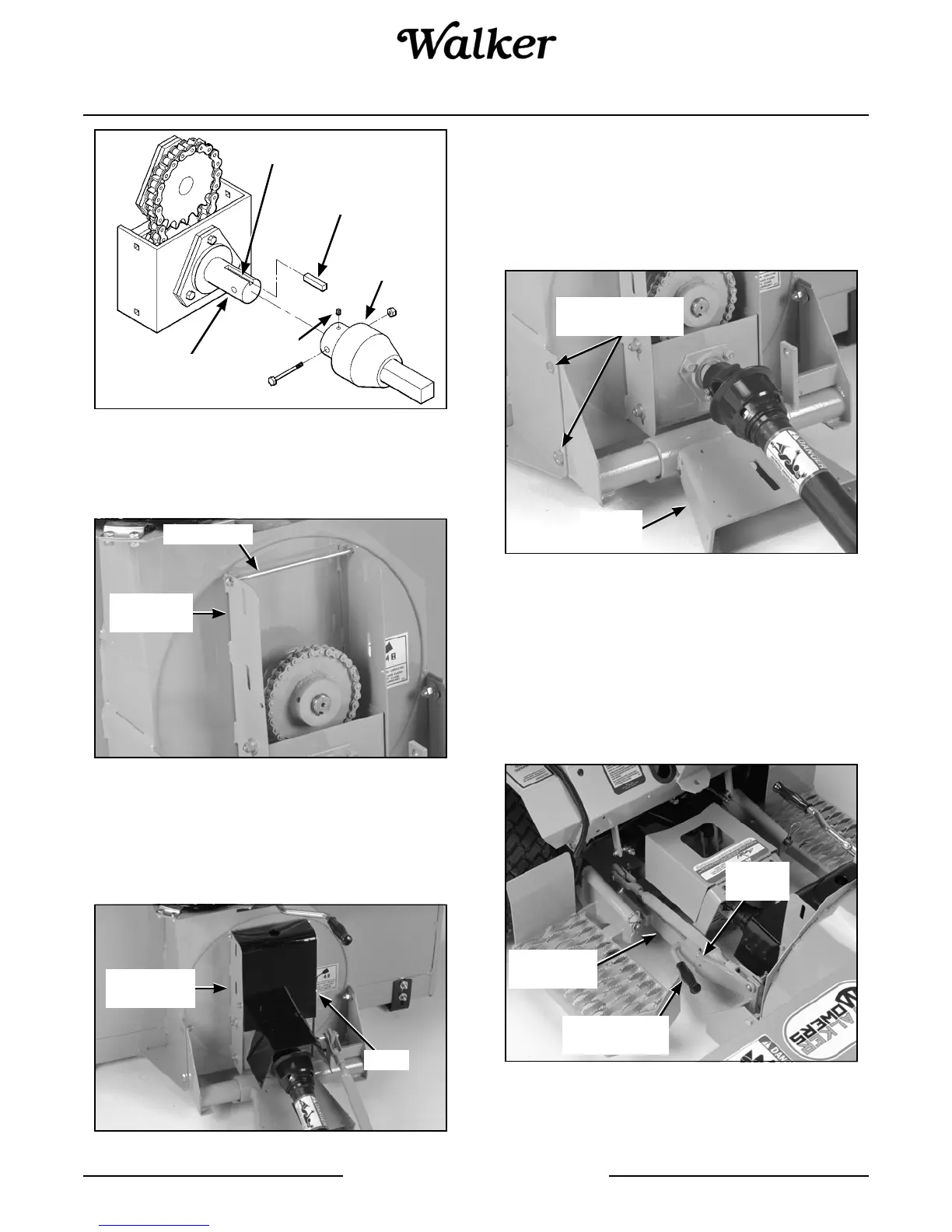

Attach Drive Shaft Yoke to Reduction Shaft
4. Install one 1/4 x 7-1/2 in. bolt through the upper set
of holes in the reduction box and secure loosely
with a lock washer and nut.
Install Bolt in Reduction Box
5. Hook the reduction box cover over the bolt and se-
cure the cover with a second 1/4 x 7-1/2 in. bolt,
lock washer, and nut through the lower set of holes
in the reduction box. Torque both bolts to 10 ft-lb
(13.6 N·m).
Install Reduction Box Cover
6. Attach the female portion of the hitch to the snow-
blower using one 3/8 x 1 in. bolt in the upper hole
of each side, placing the bolt head on the outside,
with a flat washer, lock washer, and nut on the in-
side. Use one 1/2 x 1 in. bolt, lock washer and nut
in the bottom hole of each side. Tighten all four (4)
bolts securely.
Mount Female Hitch to Snowblower
7. Insert the male quick hitch section of the implement
hitch into the female hitch of the snowblower and
lock in place by moving the hitch locking lever fully
forward to the LOCKED position. Secure the latch
with the linchpin.
8. Grease the drive shaft sliding surfaces and slide
the male shaft inside the female tube.
Attach Snowblower to Implement Hitch
Keyway
1/4 x 1/4 x
1-1/4 in. Key
Drive
Shaft Yoke
Set Screw
Reduction
Shaft
Reduction
Box
Install Bolt
Bolt
Reduction
Box Cover
Female
Hitch
Bolt Heads On
Outside of Hitch
Female
Hitch
Male Quick
Hitch
Hitch Locking
Lever
To Next Page
