WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
Model MB
1. Remove the mower deck from the tractor if neces-
sary. Refer to the appropriate Tractor Owner’s
Manual.
2. Raise tractor body and use prop to hold body up.
Install lift plate and backing plates, as showin in
parts breakdown. Refer to Lift Plate Installation
illustration.
NOTE: Predrilled holes exist only on Walker trac-
tors built after model beginning S/N 2006-8780.
For earlier models, measure and drill four 5/16 in.
(8 mm) holes in the front chassis at the positions
indicated in the Lift Plate Installation illustration.
IMPORTANT: For all tractors before S/N 2006-
8780, remove the battery before drilling the LH
hole. Reinstall the battery after the lift plate has
been installed. Refer to Battery Installation in
Battery Service in this section for battery
installation procedures.
F226
F009
2
1
Ø 5/16"
(4 TYP.)
5" 7-1/2" 5"
1-1/16"
This dimension is from the
outside of the chassis.
2-1/16"

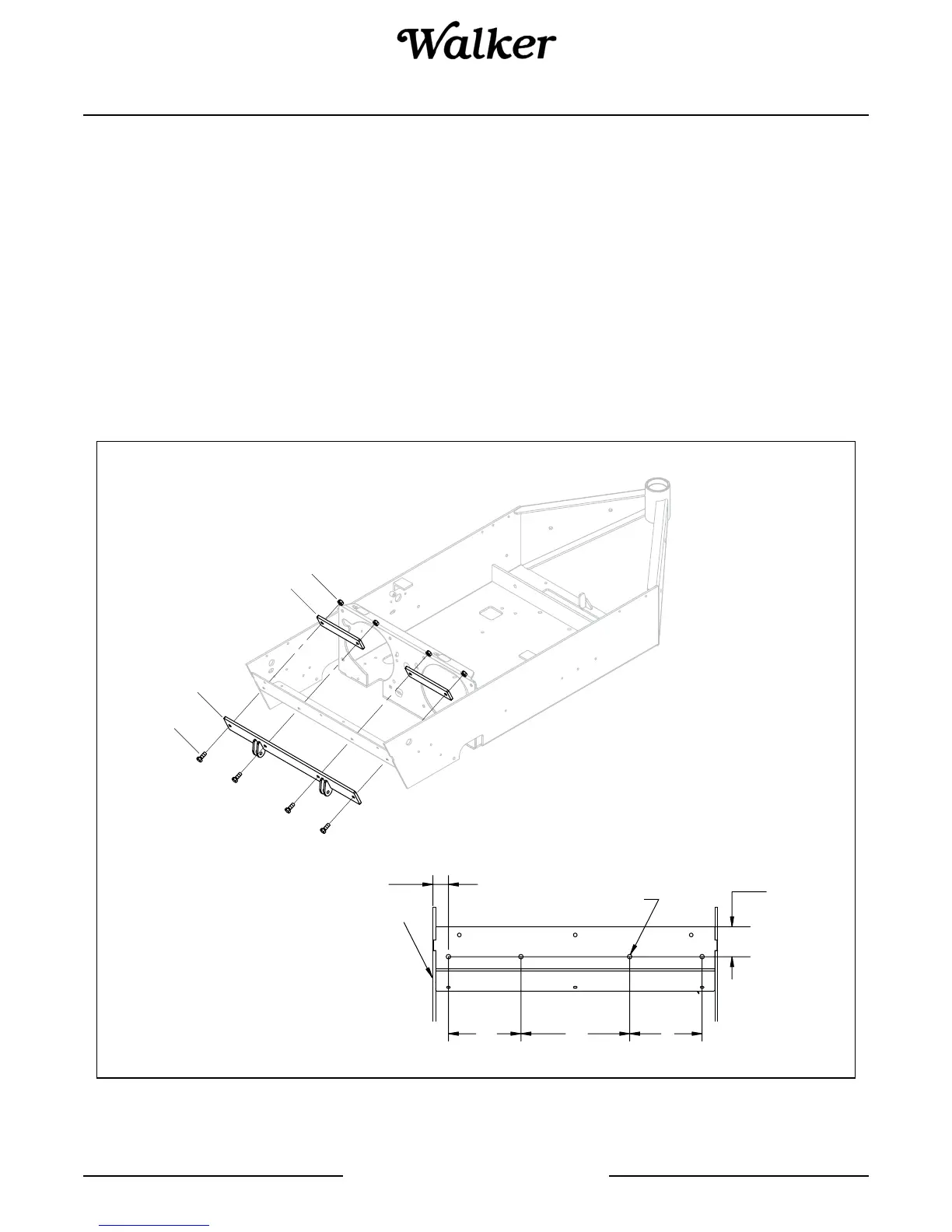

Lift Plate Installation
