Waters 600e - Programming the Gradient Table

Creating a Gradient Table 105

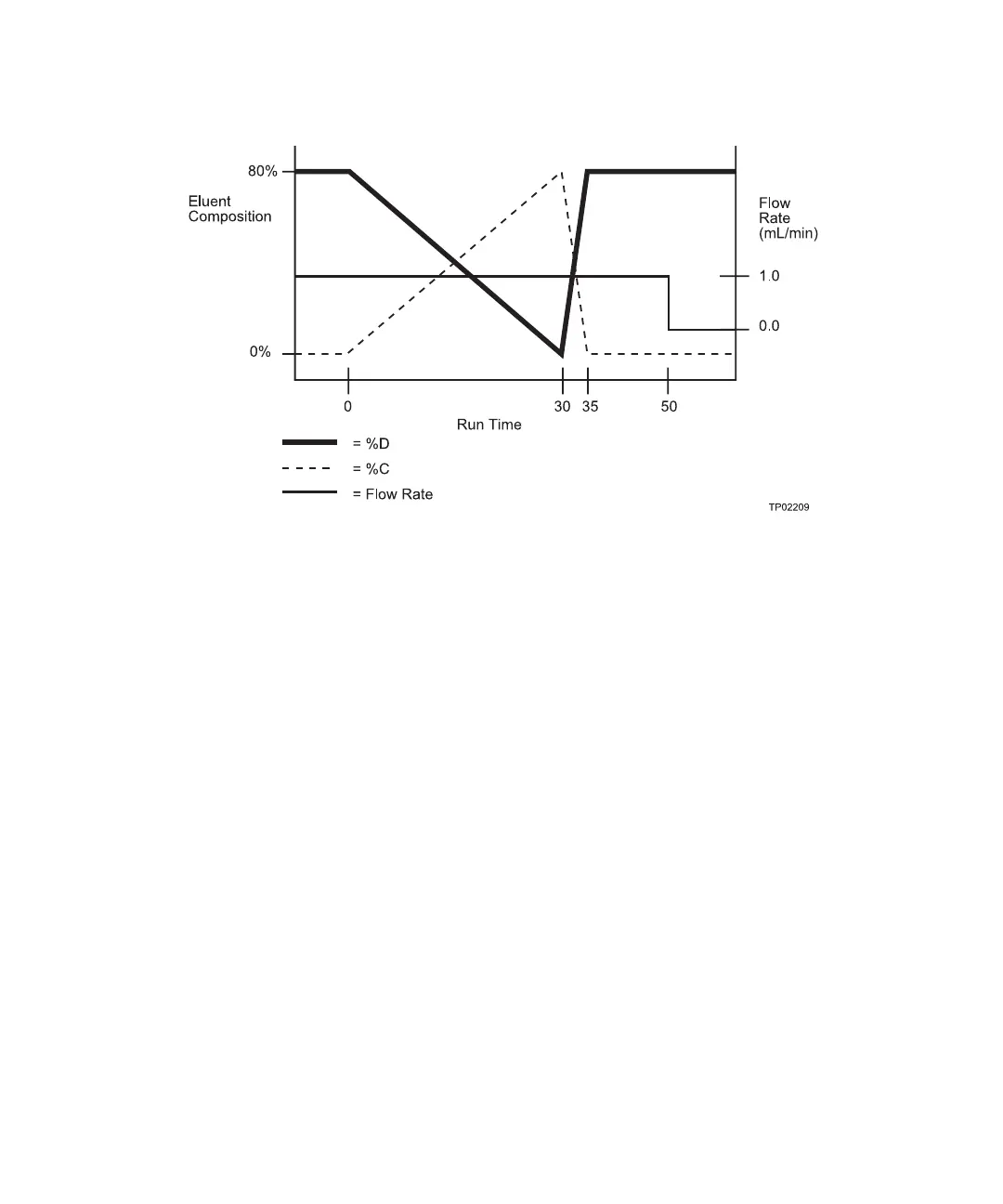

Figure 6-3 illustrates the flow, %C, and %D profiles for this gradient table.
Figure 6-3 Auto•Blend Gradient Profile
6.1.2 Programming the Gradient Table
This section provides instructions for:
• Entering parameter values in the gradient table
• Editing the gradient table
Figure 6-4 illustrates the steps involved in using the Program Gradient screen to create a
gradient table. Use this flowchart for quick reference once you become familiar with your
Waters 600E system.
