Setting Up the 600E Pump 65
4.3.1 Accessing the Pump Setup Screen
1. Press the Set Up function key from any screen except the PowerLine Controller
Pump Configuration screen. The PowerLine Controller Pump Setup screen appears
(Figure 4-13).
2. If you are at the PowerLine Controller Pump Configuration screen and do not need
to save changes, press the Cancel screen key to return to the PowerLine Controller
Pump Setup screen.
3. If you are at the PowerLine Controller Pump Configuration screen and do need to
save changes, press the Configure screen key to save your changes. The controller
reboots and returns to the Powerup screen.
4. Press the Set Up function key. The PowerLine Controller Pump Setup screen
appears.

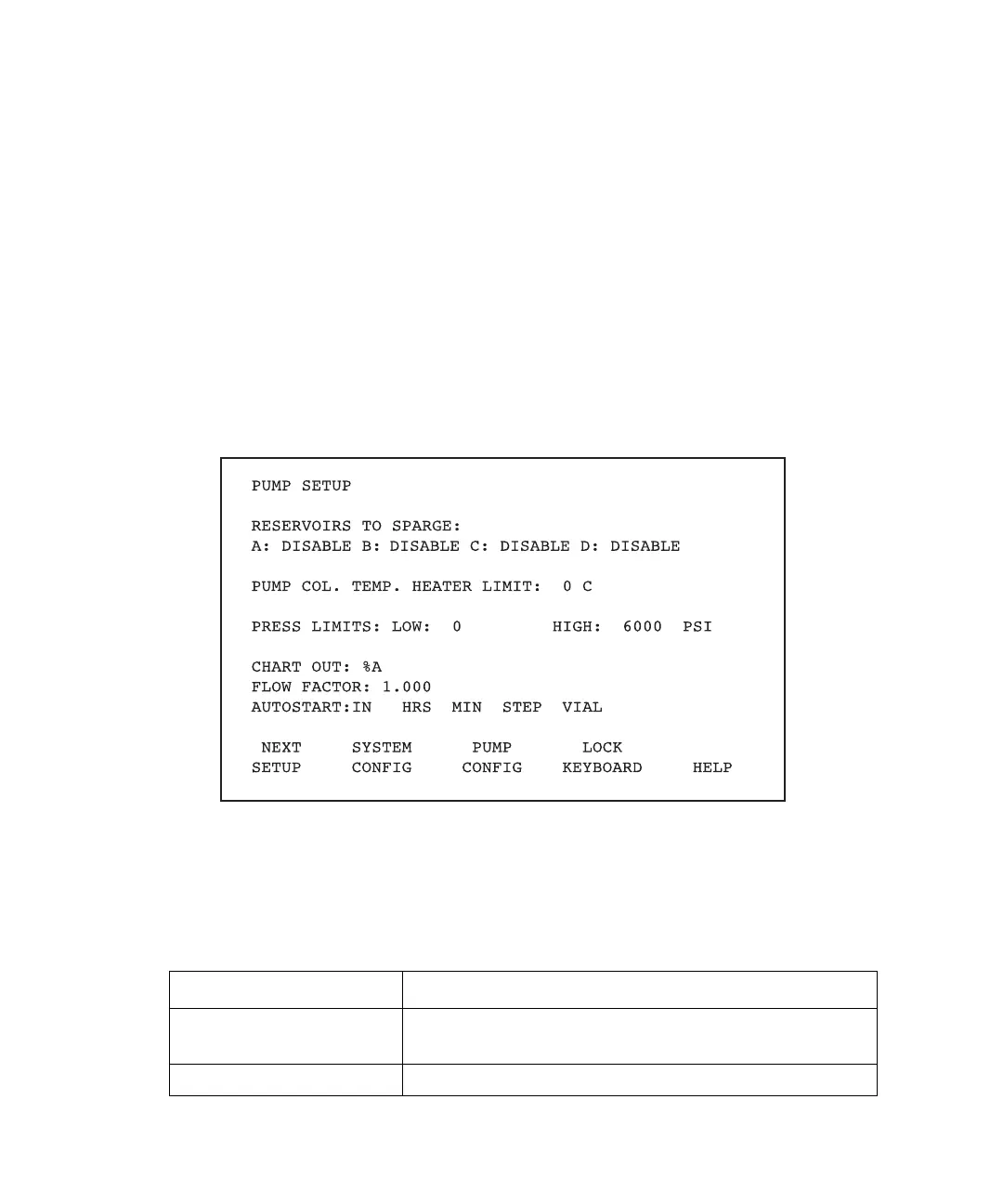

Figure 4-13 PowerLine Controller Pump Setup Screen
In addition to the parameters shown on the screen, the PowerLine Controller Pump Setup
screen also displays the screen keys described in Table 4-2.
Table 4-2 Pump Setup Screen Keys
Key Function
Next Setup Displays the configuration screens for the autoinjector
and detectors.
System Config Identifies the PowerLine modules active in the system.
To Next Page
