INSTALLATION, CONNECTION AND ENERGIZATION
Insertion Procedure
3

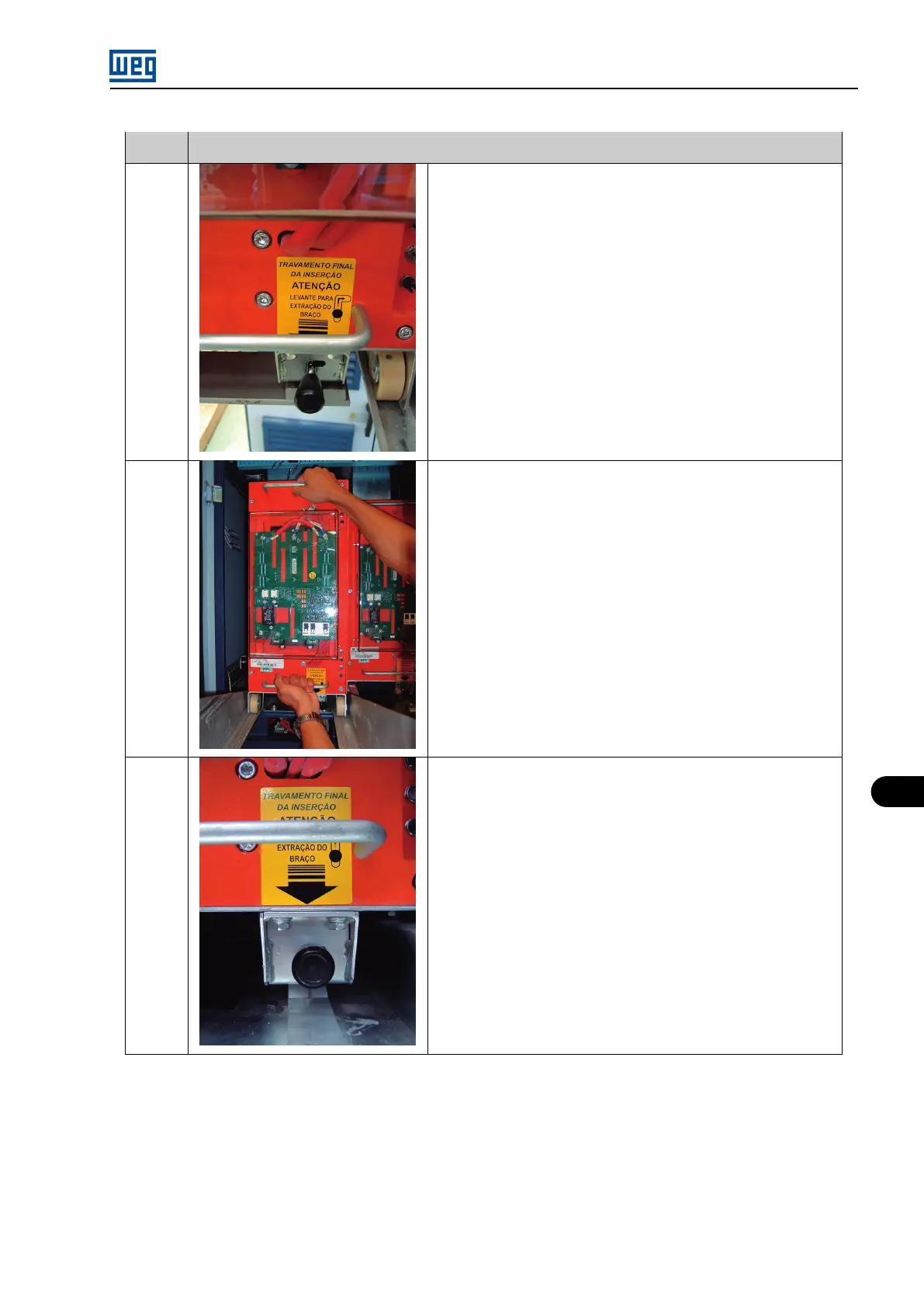

6. Release the lock that secures the arm to the trolley according to the
picture 3.
4
7. Holding on both power arm handles, push it observing the alignment of
the wheels with the base in the panel.
5
8. The arms must be inserted to the point that the locking pin engages.
Observe the label about the insertion end, as shown in picture 5.
MVW01 | 10-11
