Switching voltage Max. 30 V DC or 20 V AC, 50
Hz
IP protection rating IP 54
read distances Classic: 10 mm
Dimensions
Height 100 mm
Width 42 mm
Maximum depth 16 mm
Operating temperature at
installation site of the con-
trol unit
Min. 0 °C
Max. +50 °C
Operating temperature at
installation site of the
reader unit
Min. -25 °C
Max. +70 °C
Supply voltage on V1 and
V2
7 V to 25 V DC
10 V to 18 V AC, 50 Hz
Maximum current con-
sumption at 12 V DC
200 mA
Low Power Source
Max. 8 A
Max. 100 VA
Switching current Max. 1.5 A @ +20 °C
Switching voltage Max. 30 V DC or 20 V AC, 50
Hz
Reader BOTE

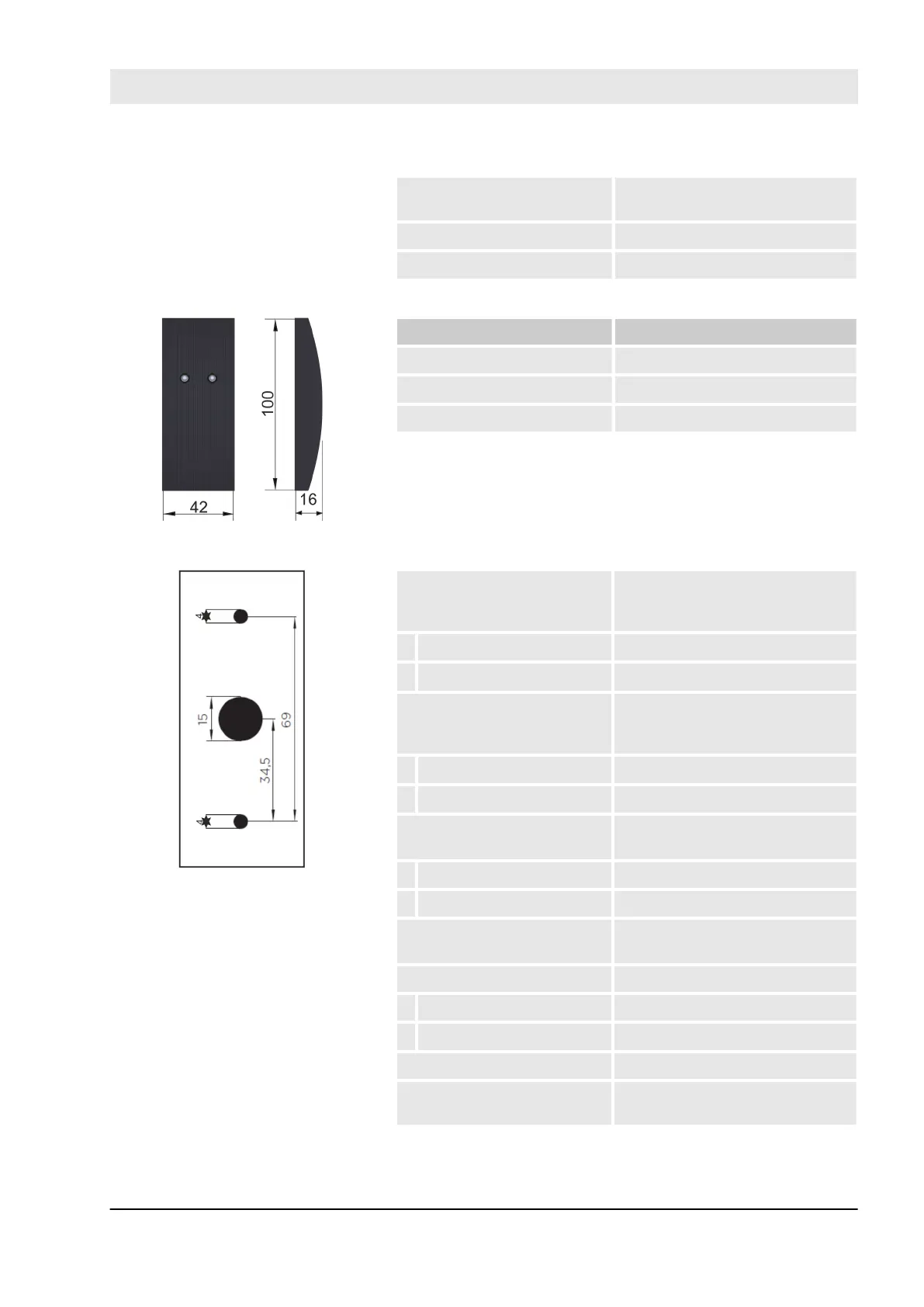

Fig. 160: Drilling pattern of the
reader unit
Technical specifications
