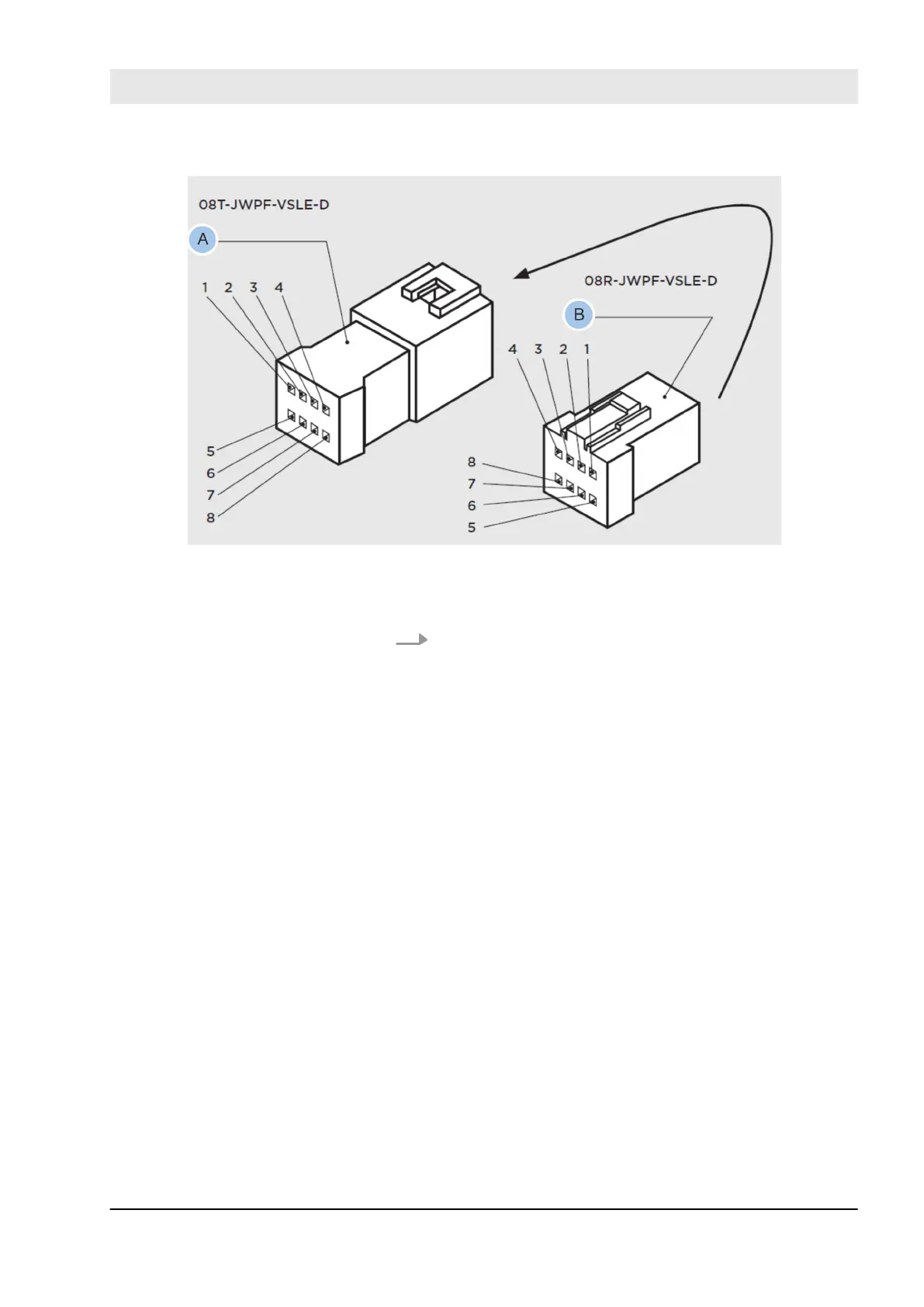

Fig. 49: Pin assignment on the connector
A Socket of the reader unit
B Connector on door or wall
13. Connect the relay of the reader with the connector on
the door or wall.
Select and install reader
23.03.2020 blueCompact electronic locking system 71
