Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.9
Initial Release
Repairs / Adjustments
12. Remove the Drive Gears and Bushings, Figure 5:
CAUTION
Note the order of the Feed and Registration Drive G
ears as removed for correct installa-
tion.
a. Remove the snap ring, the remove the Feed and Registration Drive Gears.
b. Remove two snap rings, then remove the Feed and Registration Clutch Bushings.
c. Release two latches, then remove the Shaft Bushings.

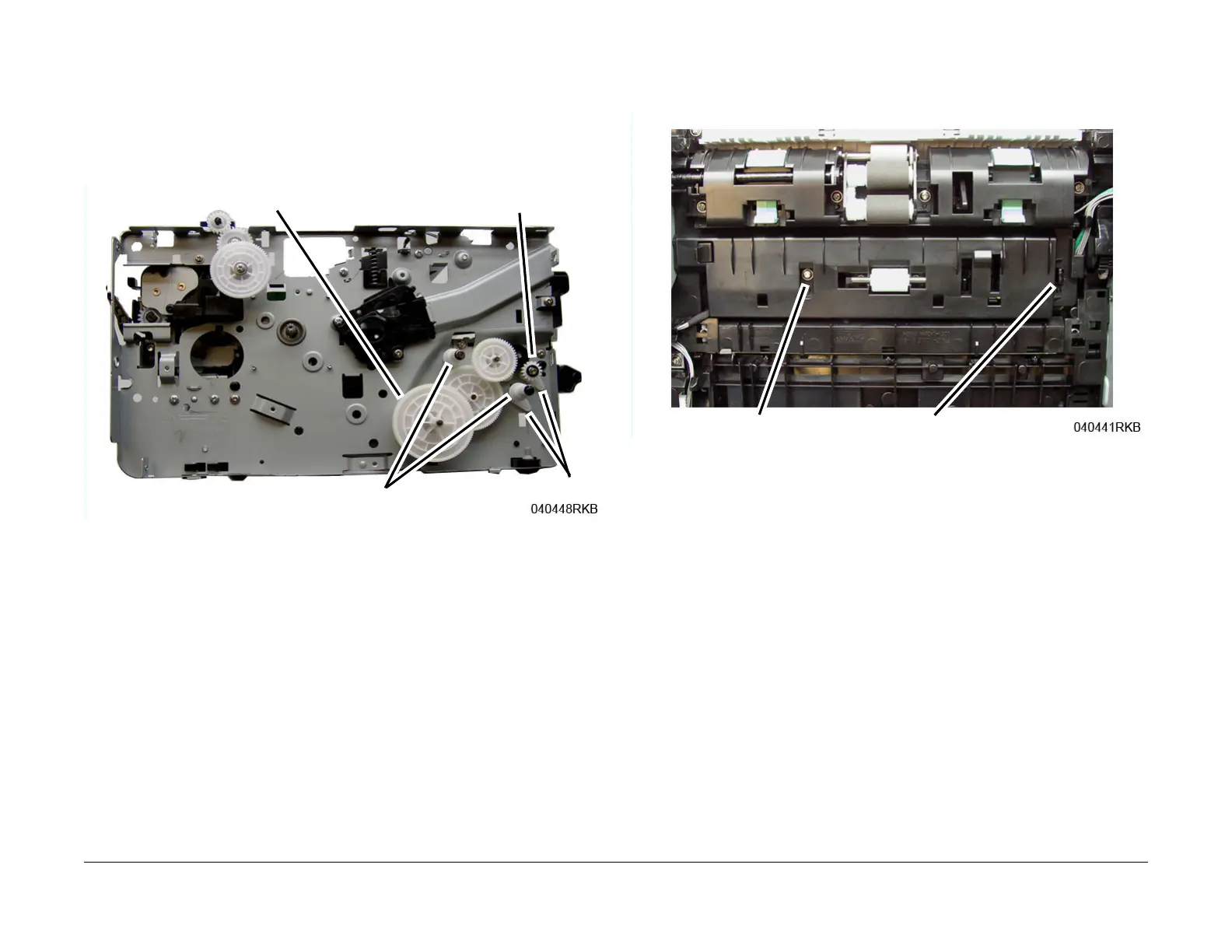

Figure 5 Drive Gears and Bushings
13. Remove the Feed and Registration Sensor PWB Cover, F
igure 6:
a. Remove the screw.
b. Release the latch, then remove the cover.
Figure 6 Feed and Reg Sensors PWB Cover (Bottom View)
Snap Ring
Feed & Registration Drive Gears
Clutch Bushings
Shaft Bushings
