July 2019
4-29
Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.9
Repairs / Adjustments
Initial Release
14. Unlatch the Feed Sensor Actuator, then remove the Feed Sensor Actuator, Figure 7.
NOTE: Note the location of the spring in the frame cutout for reinstallation.

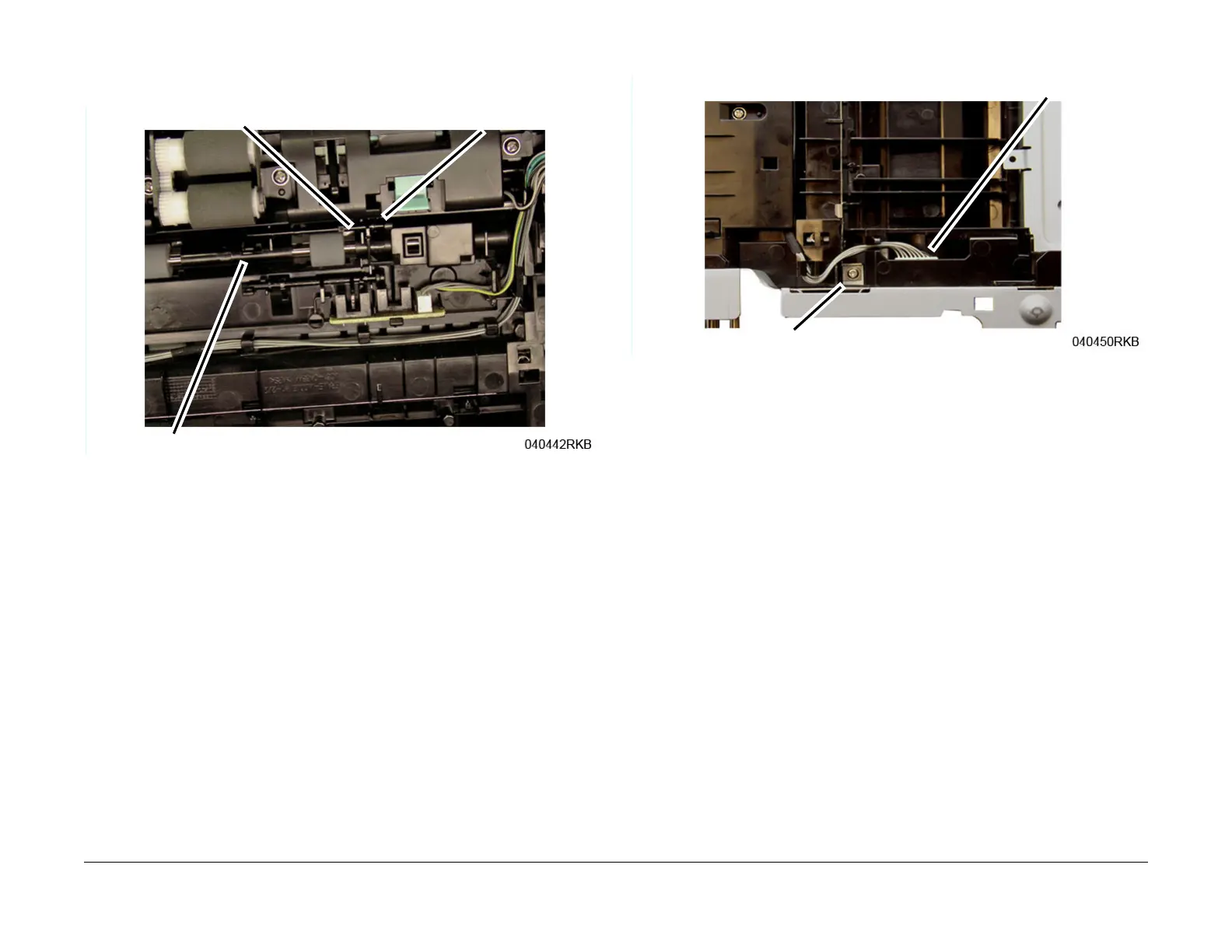

Figure 7 Feed Sensor Actuator (Bottom View)
15. Remove the ground screw, then disconnect the Drive Motor, F
igure 8.
Figure 8 Drive Motor Connector & Screw (Bottom View)
Feed Sensor Actuator
Spring
Latch
Connector
Screw
