July 2019
4-24
Xerox® B210 Service Manual
REP 4.9
Initial Release
Repairs - Adjustments
16. Remove two screws securing the Pickup Frame Base, then three screws securing the
Middle F
rame on the right-side, Figure 11
.

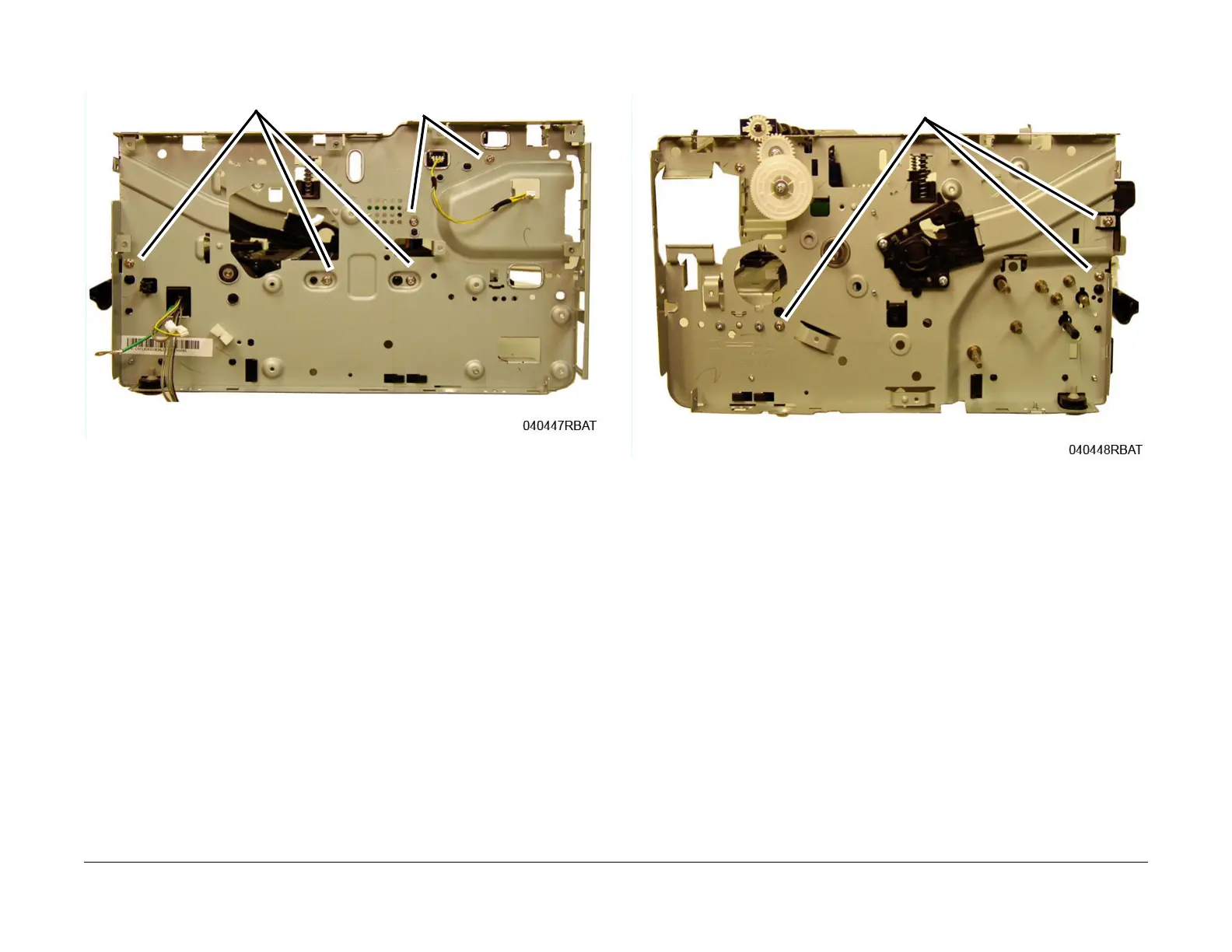

Figure 11 Right Frame Screws Removal
17. Remove three screws securing the Middle Frame and Pickup Frame Base on the left-
si
de, Figure 12.
Figure 12 Left Frame Screw Removal
To Next Page
