18. Separate the left and right frames from the Middle Frame routing the wires through the
f
rames as needed.
19. Remove the Pivot Plate, Collar, the Registration Roll Pivot Gear, F
igure 13, then the Reg-
istration Roll Drive Gear, F
igure 14.

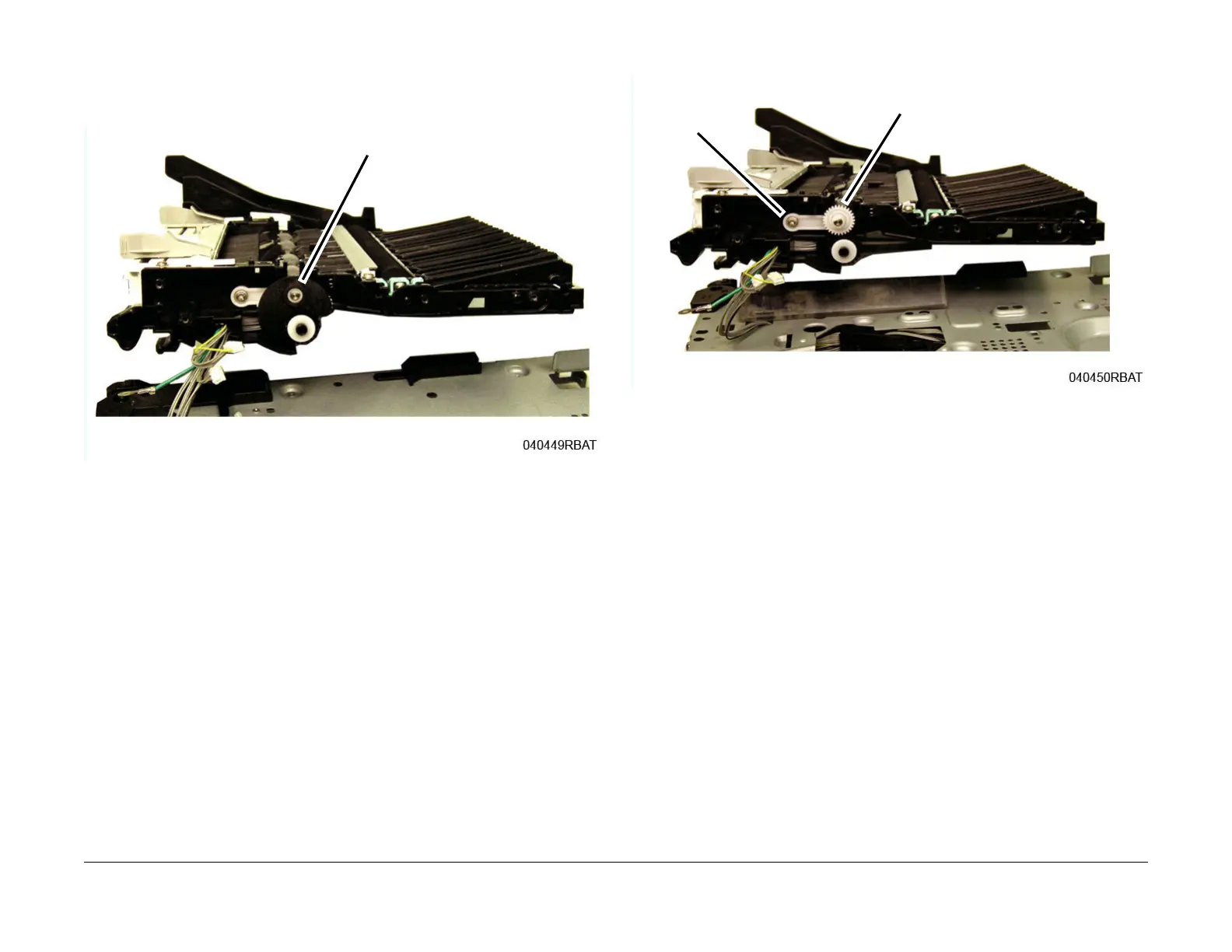

Figure 13 Registration Roll Drive Pivot Gears
20. Remove the screw, then remove the Registration Holder, F
igure 14.
Figure 14 Registration Roll Drive Gear and Bushing
Pivot Plate, Collar, Registration Roll
Pivot Gear, and Registration Drive Gear
Screw
Registration Drive Gear
and Registration Holder
