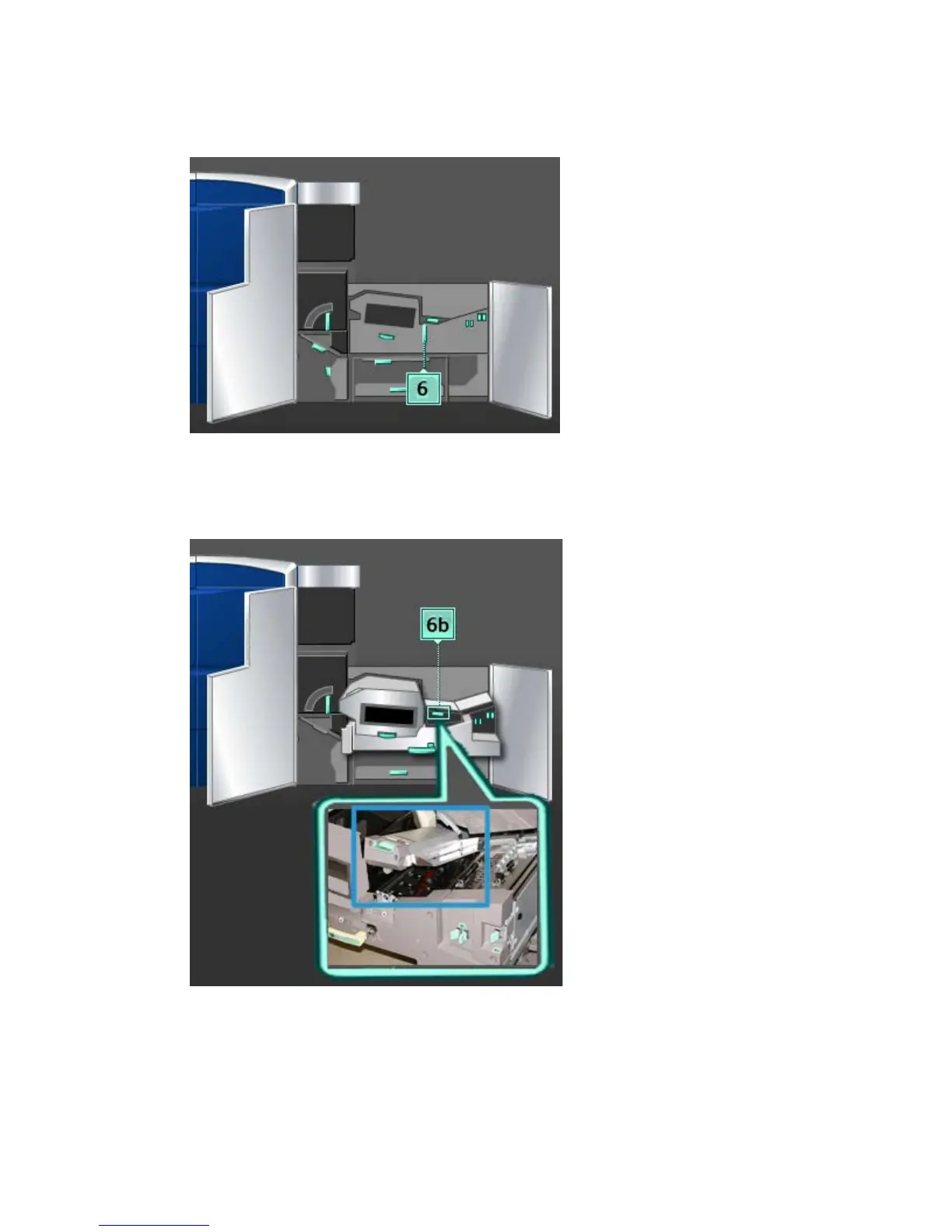

2. Grasp handle 6 and rotate it in the direction of the arrow, and slowly pull out the exit
drawer assembly until it stops.
3. Use a damp, water-moistened (not wet), lint-free cloth to clean the paper path only
in the green lever jam clearance areas as shown in the illustration.
Note
Avoid touching the White Reference Roll when cleaning area 6.
a) Open each area and clean the surfaces of the green-handle areas.
9-11
Xerox
®
Color 800/1000 Press
User Guide
Maintenance
