Problem Solving
340
Xerox CopyCentre/WorkCentr
e/WorkC
entre Pro 123/128/133 Use
r Guide
3.

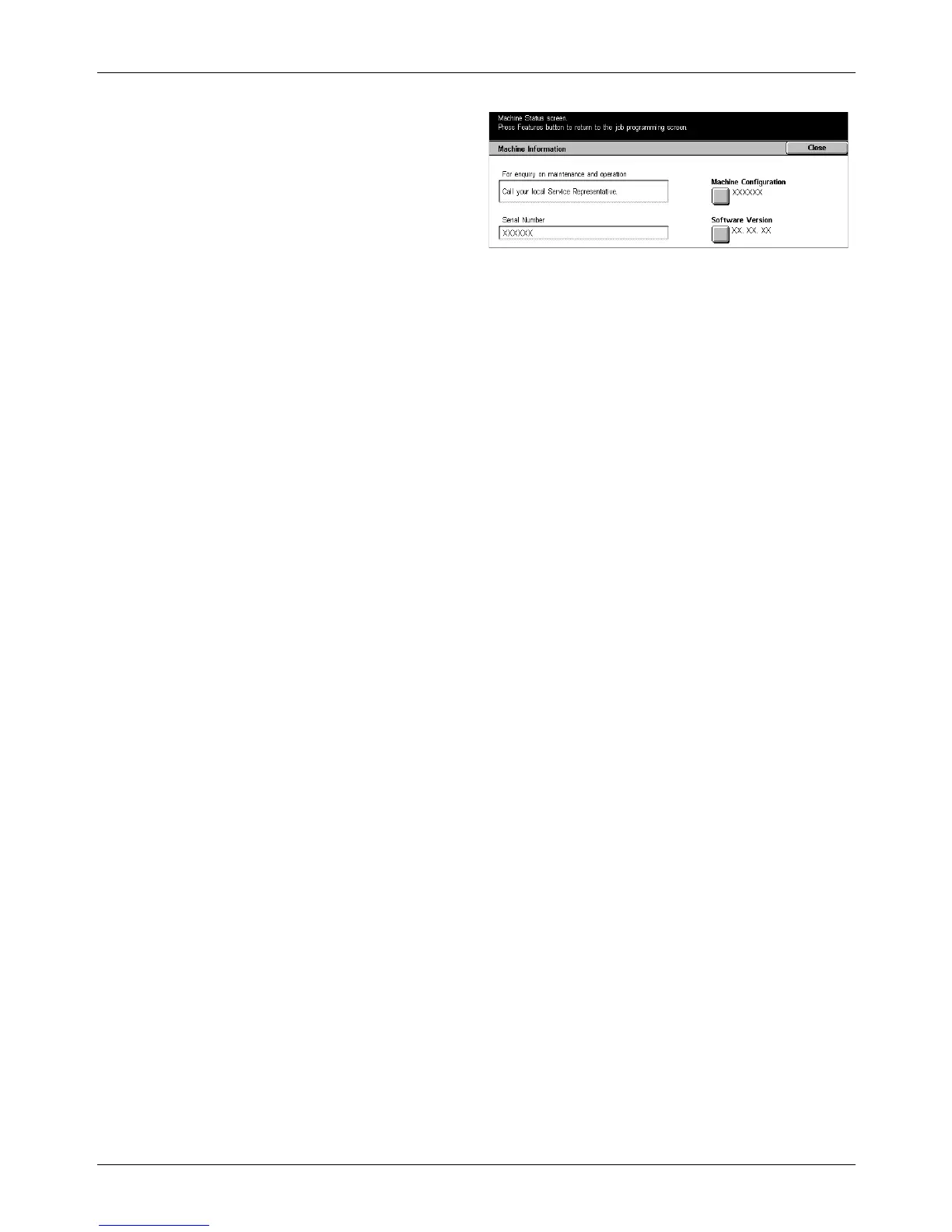

The serial number will be
displayed.
NOTE:
The serial number
is also found on the met
al plate on the left side of the
machine behind Cover A. Fo
r more information, refer to
Xerox W
elcome Center in the
Before Using the Machine chapter o
n page
13
.
339
341
